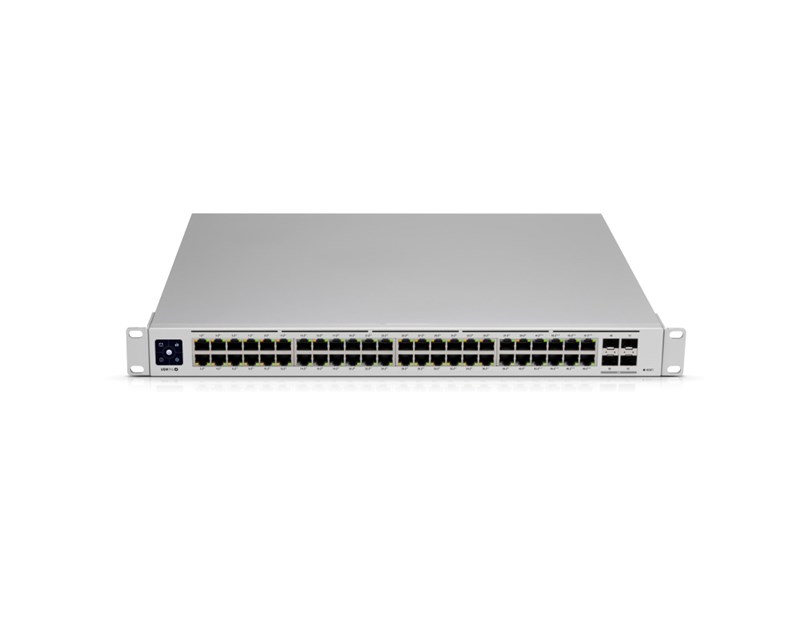

Ubiquiti UniFi Managed 48-port Gigabit Switch, 4×10G SFP+, Touchscreen LCD, Rackmount (USW-PRO-48)
20241108T13_20_12Z.png)
-
Šifra artikla55992
-
Kataloški brojUSW-PRO-48
-
Jamstvo24 mjeseca
{{CurrentProduct.SinglePriceToPay_print}}
- The USW-Pro-48 is a manageable Gigabit L2 switch with 48x Gigabit LAN ports and four SFP+ ports with a transfer rate of 10Gbps. In addition to the standard equipment, the switch also has a 1.3" touch screen for providing information about the system, temperature, port statistics and much more.
Management via UniFi Controller
- The USW-Pro-48 has no web management but is managed centrally using the UniFi Controller with support for the UniFi mobile application and offers an extensive set of advanced switching protocols and L2 functions, including operating mode (switching, mirroring or aggregation) per port. UniFi Network Controller and mobile applications allow administrators to configure and monitor virtually all graphical user interface functions from anywhere.
Redundant power
- This generation of switches supports redundant power supply via a special connector to the UniFi SmartPower (sold separately) unit in the event of a failure of the primary power supply at the switch.
Specifications

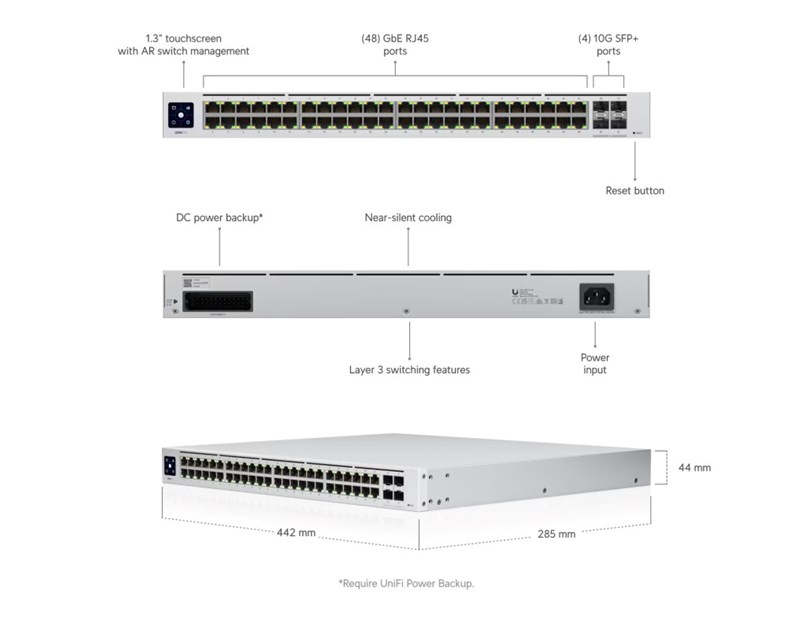

- (48) GbE ports
- (4) 10G SFP+ ports
- DC power backup-ready
- Layer 3 switching
- Silent cooling
Specifications
Mechanical
- Dimensions: 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight
- Without mounting brackets: 4 kg (8.8 lb)
- With mounting brackets: 4.1 kg (9 lb)
Enclosure material: SGCC steel
Hardware
- Management interface: Ethernet In-Band
- Networking interface:
* (48) GbE RJ45 ports
* (4) 1/10G SFP+ ports
Total non-blocking throughput. 88 Gbps
- Switching capacity: 176 Gbps
- Forwarding rate: 130.944 Mpps
- Power method:
* Universal input, 100—240V AC, 50/60 Hz
* USP RPS DC input, 11.5V DC, 5.22A
- Power supply: AC/DC, internal, 60W
- Supported voltage range: 100—240V AC
- Max. power consumption: 60W
- ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
- LCM display: (1) 1.3" touchscreen
- Button: Factory reset
- Shock and vibration: ETSI300-019-1.4 Standard
- Operating temperature: -5 to 45° C (23 to 113° F)
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC
LEDs
- System: Status
- Ethernet: Speed/link/activity
- SFP+: Link/activity
- RPS: Status
Application Requirements
- UniFi Network: Version 5.12.11 and later
Management via UniFi Controller
- The USW-Pro-48 has no web management but is managed centrally using the UniFi Controller with support for the UniFi mobile application and offers an extensive set of advanced switching protocols and L2 functions, including operating mode (switching, mirroring or aggregation) per port. UniFi Network Controller and mobile applications allow administrators to configure and monitor virtually all graphical user interface functions from anywhere.
Redundant power
- This generation of switches supports redundant power supply via a special connector to the UniFi SmartPower (sold separately) unit in the event of a failure of the primary power supply at the switch.
Specifications
- (48) GbE ports
- (4) 10G SFP+ ports
- DC power backup-ready
- Layer 3 switching
- Silent cooling
Specifications
Mechanical
- Dimensions: 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight
- Without mounting brackets: 4 kg (8.8 lb)
- With mounting brackets: 4.1 kg (9 lb)
Enclosure material: SGCC steel
Hardware
- Management interface: Ethernet In-Band
- Networking interface:
* (48) GbE RJ45 ports
* (4) 1/10G SFP+ ports
Total non-blocking throughput. 88 Gbps
- Switching capacity: 176 Gbps
- Forwarding rate: 130.944 Mpps
- Power method:
* Universal input, 100—240V AC, 50/60 Hz
* USP RPS DC input, 11.5V DC, 5.22A
- Power supply: AC/DC, internal, 60W
- Supported voltage range: 100—240V AC
- Max. power consumption: 60W
- ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
- LCM display: (1) 1.3" touchscreen
- Button: Factory reset
- Shock and vibration: ETSI300-019-1.4 Standard
- Operating temperature: -5 to 45° C (23 to 113° F)
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC
LEDs
- System: Status
- Ethernet: Speed/link/activity
- SFP+: Link/activity
- RPS: Status
Application Requirements
- UniFi Network: Version 5.12.11 and later
