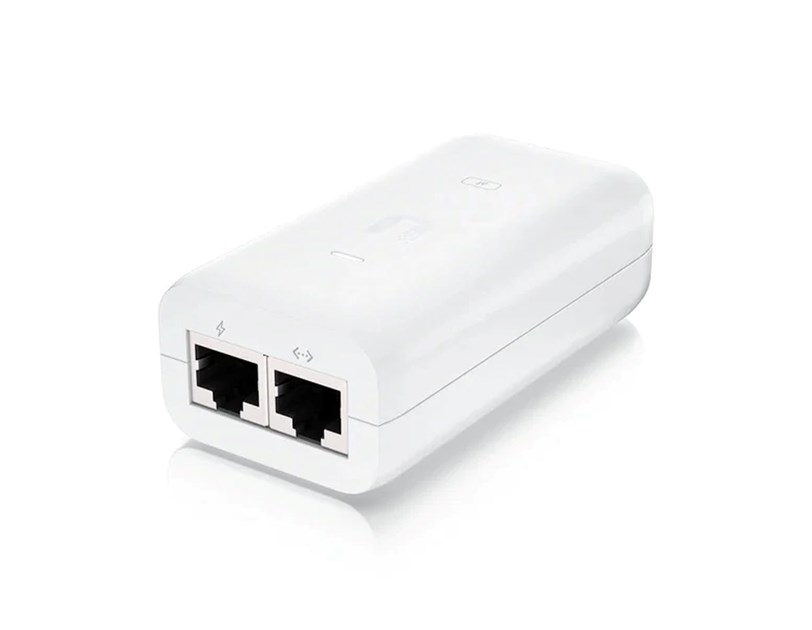

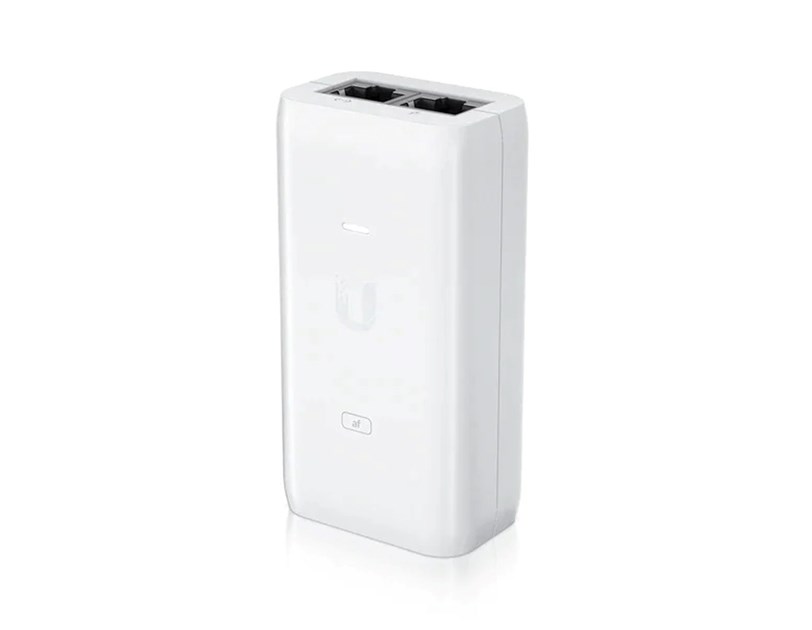

Ubiquiti PoE Injector, 802.3AF (U-POE-af)

- An adapter that can power UniFi PoE devices with wireless mesh applications, or offload PoE switch power dependencies.

Features
- Delivers up to 15W of PoE
- Compatible with most UniFi Protect cameras and some APs such as U6+ and U6 Mesh
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE output
- LED indicator for status monitoring

Specifications
- Model: U-POE-af
- Dimensions: 86 x 46 x 33 mm (3.39 x 1.81 x 1.30")
- Weight: 100 g (3.53 oz)
- Output voltage: 48V DC 0.32A
- LAN activity indicator: No
- Gigabit LAN port: Yes
- Remote reset capability: No
- Reset Button: No
- Rated voltage: 100—240V AC 50/60Hz
- Input current: 500mA Max.
- Inrush current: <100A Peak at 25°C
- Efficiency: 84.25+%
- Output ripple: 200mV p-p
- Switching frequency: 65 kHz
- Line regulation: ? 3%
- Load regulation: ? 5%
- 2-pair powering: Pins 4, 5 (+) and 7, 8 (-)
- 4-pair powering: No
- AC connector: IEC-320 C6
- Data In / PoE: RJ45 shielded socket
- Surge protection: Difference and common mode
- Clamping protection: 11V data, 60V power
- Max. surge discharge: 1500A (8/20 µs) power
- Peak pulse current: 36A (10/1000 µs) data
- Shunt capacitance: <5 pF data
- Response time: <1 ns
- Ambient operating temperature: 0 to 40° C (32 to 104° F)
- Storage temperature: -30 to 70°C (-22 to 158° F)
- Ambient operating humidity: 10 to 95% noncondensing
- Certifications: CE, FCC, IC, UL
