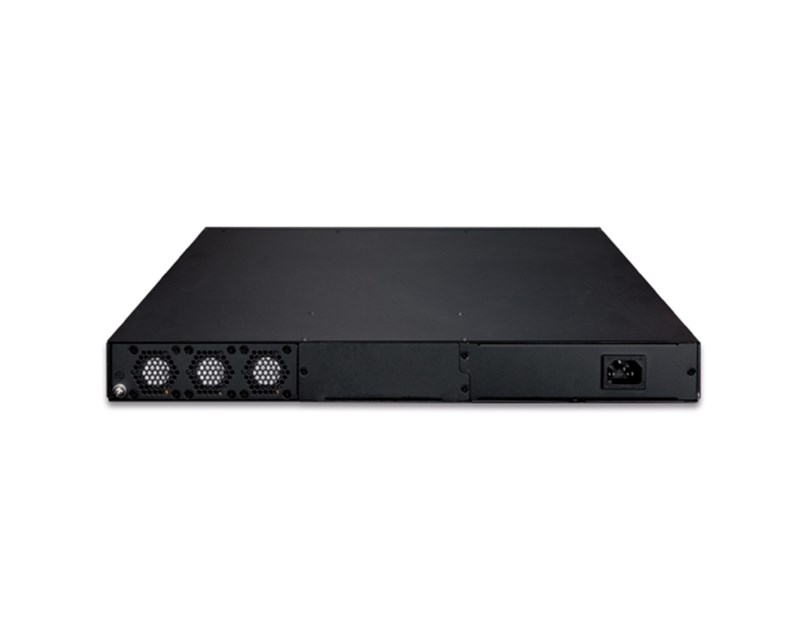

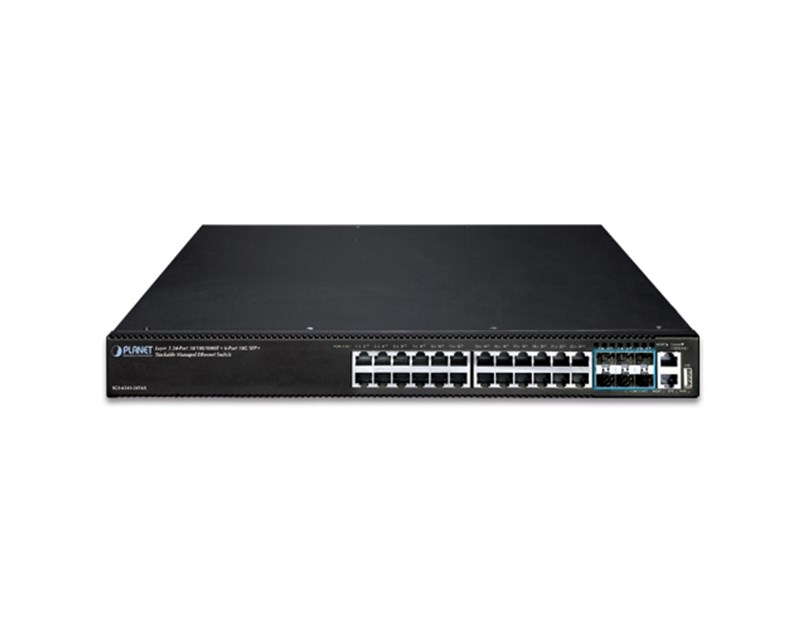

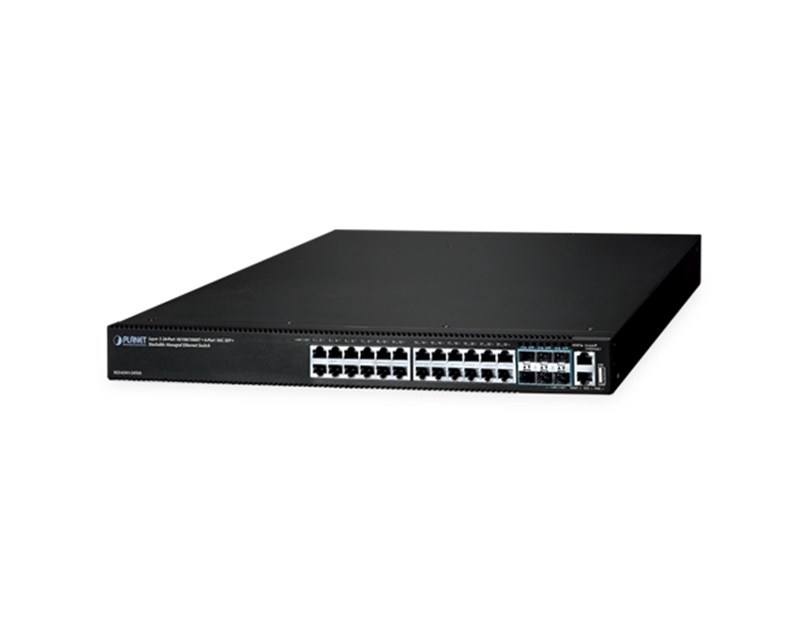

PLANET Layer 3 24-Port 10/100/1000T + 6-Port 10G SFP+ Stackable Managed Switch, Hardware-based Layer 3 IPv4/IPv6 Routing
20241108T12_30_49Z.png)
-
Šifra artiklaSGS-6341-24T6X
-
Kataloški brojSGS-6341-24T6X
-
Jamstvo24 mjeseca
{{CurrentProduct.SinglePriceToPay_print}}
Proizvod više nije dostupan
Product information:
Hardware Specifications:
- Copper Ports: 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (ports1 to 24)
- 10G SFP+ Ports: 6 10GBASE-SR/LR SFP+ ports (ports 25 to 30), Backward compatible with 1000BASE-SX/LX/BX SFP transceiver
- MGMT: 1 x 10/100BASE-T RJ45 port
- Console: 1 x RJ45-to-DB9 serial port (115200, 8, N, 1)
- USB: 1 x USB 2.0
- Dimensions (W x D x H): 440 x 380 x 43.6 mm 1U height
- Weight: 4393g
- Power Consumption: System on: 15.7 watts/53.5 BTU (maximum), Full loading: 33.9 watts/115.5BTU (maximum)
- Power Requirements: AC 100~240V, 50/60Hz
- Fan: 1 Smart FAN
- ESD Protection: 6kV
- Surge Protection: 6kV
Switching Performance:
- Switch Architecture: Store-and-forward
- Switch Capacity: 168Gbps/non-blocking
- Switch Throughput: 125Mpps
- Address Table: 32K MAC address table with auto learning function
- Shared Data Buffer: 8MB
- Jumbo Frame: 12KB
- Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
IPv4 Layer 3 Functions:
- IP Routing Protocol: RIP v1/v2, OSPFv2, BGP (Border Gateway Protocol), Static routing
- Multicast Routing Protocol: PIM-DM and PIM-SM, PIM-SSM
- VRRP: Configure VRRP in interface VLAN, VRRP priority, VRRP standby, VRRP track
- Routing Features: VRRP, Policy routing, Load balance through equal-cost routing, BFD for OSPF and BGP
- DHCP: DHCP client, DHCP server, default route, DHCP relay
IPv6 Layer 3 Functions:
- IP Routing Protocol: RIPng, OSPFv3, VRRPv3, URPF, RA, BGP4+
- Routing Features: Manual tunnel, ISATAP tunnel, Configured Tunnel, GRE Tunnel, 6-to-4 tunnel
- IPv6 Functions: ICMPv6, DHCPv6, ACLv6, IPv6 Telnet, IPv6 Neighbor Discovery, Path MTU Discovery, ICMPv6, ND DNSv6, IPv6 LPM Routing, IPv6 Policy-based Routing (PBR)
Hardware Specifications:
- Copper Ports: 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (ports1 to 24)
- 10G SFP+ Ports: 6 10GBASE-SR/LR SFP+ ports (ports 25 to 30), Backward compatible with 1000BASE-SX/LX/BX SFP transceiver
- MGMT: 1 x 10/100BASE-T RJ45 port
- Console: 1 x RJ45-to-DB9 serial port (115200, 8, N, 1)
- USB: 1 x USB 2.0
- Dimensions (W x D x H): 440 x 380 x 43.6 mm 1U height
- Weight: 4393g
- Power Consumption: System on: 15.7 watts/53.5 BTU (maximum), Full loading: 33.9 watts/115.5BTU (maximum)
- Power Requirements: AC 100~240V, 50/60Hz
- Fan: 1 Smart FAN
- ESD Protection: 6kV
- Surge Protection: 6kV
Switching Performance:
- Switch Architecture: Store-and-forward
- Switch Capacity: 168Gbps/non-blocking
- Switch Throughput: 125Mpps
- Address Table: 32K MAC address table with auto learning function
- Shared Data Buffer: 8MB
- Jumbo Frame: 12KB
- Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
IPv4 Layer 3 Functions:
- IP Routing Protocol: RIP v1/v2, OSPFv2, BGP (Border Gateway Protocol), Static routing
- Multicast Routing Protocol: PIM-DM and PIM-SM, PIM-SSM
- VRRP: Configure VRRP in interface VLAN, VRRP priority, VRRP standby, VRRP track
- Routing Features: VRRP, Policy routing, Load balance through equal-cost routing, BFD for OSPF and BGP
- DHCP: DHCP client, DHCP server, default route, DHCP relay
IPv6 Layer 3 Functions:
- IP Routing Protocol: RIPng, OSPFv3, VRRPv3, URPF, RA, BGP4+
- Routing Features: Manual tunnel, ISATAP tunnel, Configured Tunnel, GRE Tunnel, 6-to-4 tunnel
- IPv6 Functions: ICMPv6, DHCPv6, ACLv6, IPv6 Telnet, IPv6 Neighbor Discovery, Path MTU Discovery, ICMPv6, ND DNSv6, IPv6 LPM Routing, IPv6 Policy-based Routing (PBR)
- Robna marka
- PLANET
- LAN
- 10/100/1000
- Broj portova
- 24
- Upravljiv
- DA
- Masa
- 4,8
- Masa netto
- 4,393
