Ne odgovaramo za eventualne pogreške nastale u opisu proizvoda. Slike artikala su ilustrativne prirode te ne moraju u potpunosti odgovarati artiklima.

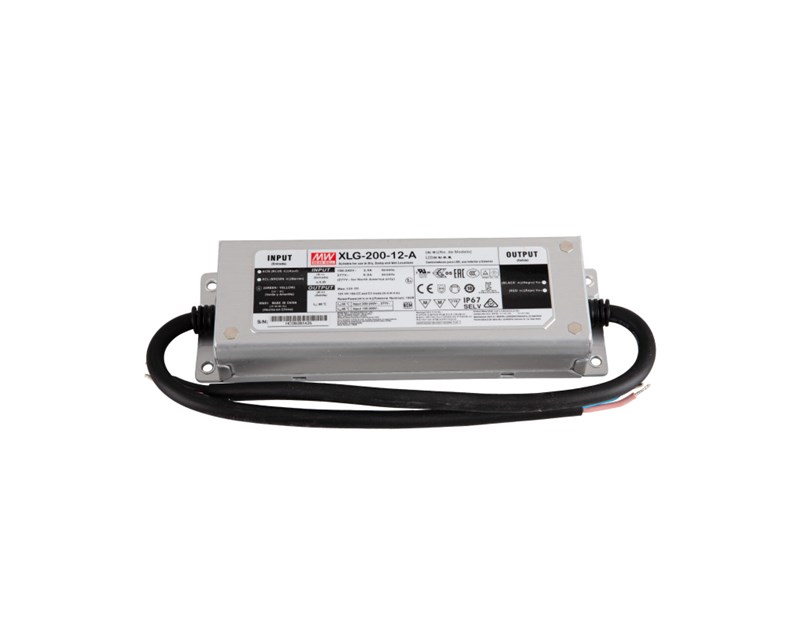

MEAN WELL napajanje XLG-200-12-A
20241108T13_33_09Z.png)
-
Šifra artikla52962
-
Kataloški brojXLG-200-12-A
-
Jamstvo5 godina
{{CurrentProduct.SinglePriceToPay_print}}
Opis
XLG-200-12 je 230V LED napajanje sa kućištem od perforiranog lima,
podesivog napona.
Idealan za LED trake i raznu LED rasvijetu.
SELV zaštita
OUTPUT
- DC VOLTAGE:12V
- RATED CURRENT:16A
- RATED POWER:192W
- CURRENT ADJ. RANGE:8 ~ 16A
- VOLTAGE TOLERANCE: +/-2%
INPUT
- VOLTAGE RANGE:142 ~ 431VDC
- FREQUENCY RANGE: 47-63 Hz
- EFFICIENCY (Typ.): 92%
- AC CURRENT:2.2A / 115VAC 1.1A / 230VAC 0.9A/277VAC
ENVIRONMENTi
- WORKING TEMP.: -40°~+90°
- WORKING HUMIDITY: 20 ~ 95% RH non-condensing
- WEIGHT: 850 g
- DIMENSION: 199*63*35.5mm (L*W*H)
- PROTECTION: IP67 / SELV
XLG-200-12 je 230V LED napajanje sa kućištem od perforiranog lima,
podesivog napona.
Idealan za LED trake i raznu LED rasvijetu.
SELV zaštita
OUTPUT
- DC VOLTAGE:12V
- RATED CURRENT:16A
- RATED POWER:192W
- CURRENT ADJ. RANGE:8 ~ 16A
- VOLTAGE TOLERANCE: +/-2%
INPUT
- VOLTAGE RANGE:142 ~ 431VDC
- FREQUENCY RANGE: 47-63 Hz
- EFFICIENCY (Typ.): 92%
- AC CURRENT:2.2A / 115VAC 1.1A / 230VAC 0.9A/277VAC
ENVIRONMENTi
- WORKING TEMP.: -40°~+90°
- WORKING HUMIDITY: 20 ~ 95% RH non-condensing
- WEIGHT: 850 g
- DIMENSION: 199*63*35.5mm (L*W*H)
- PROTECTION: IP67 / SELV
