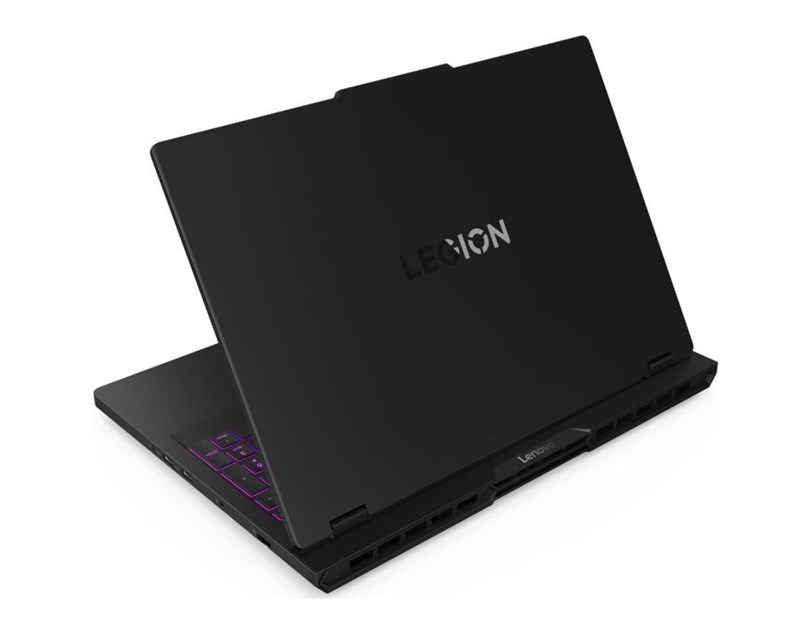

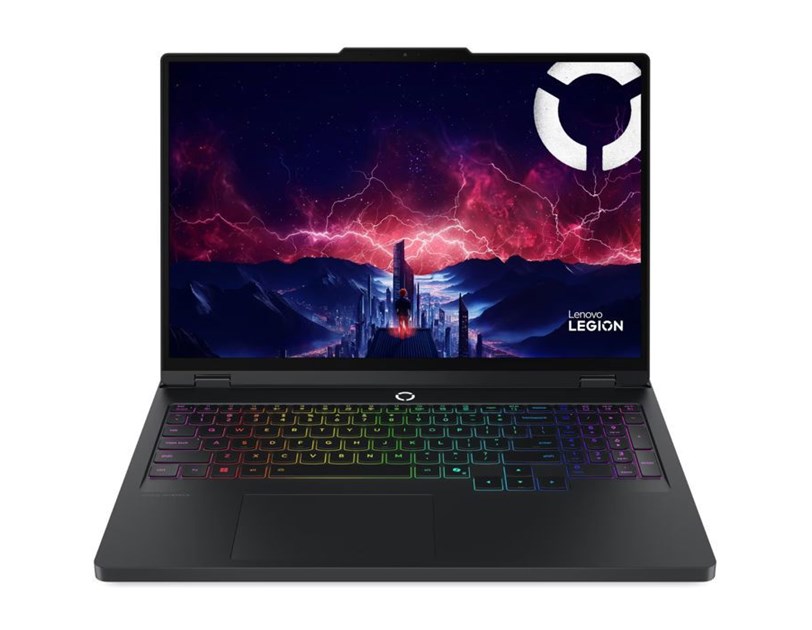

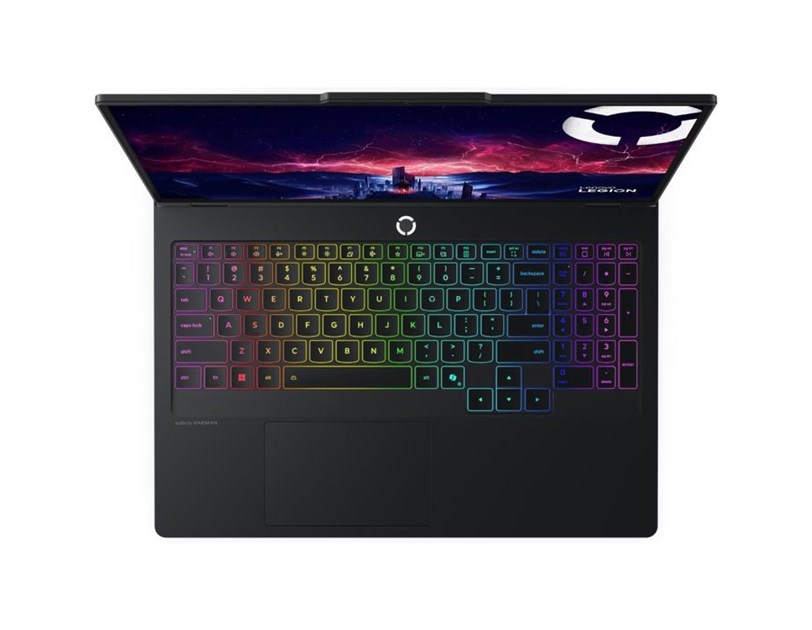

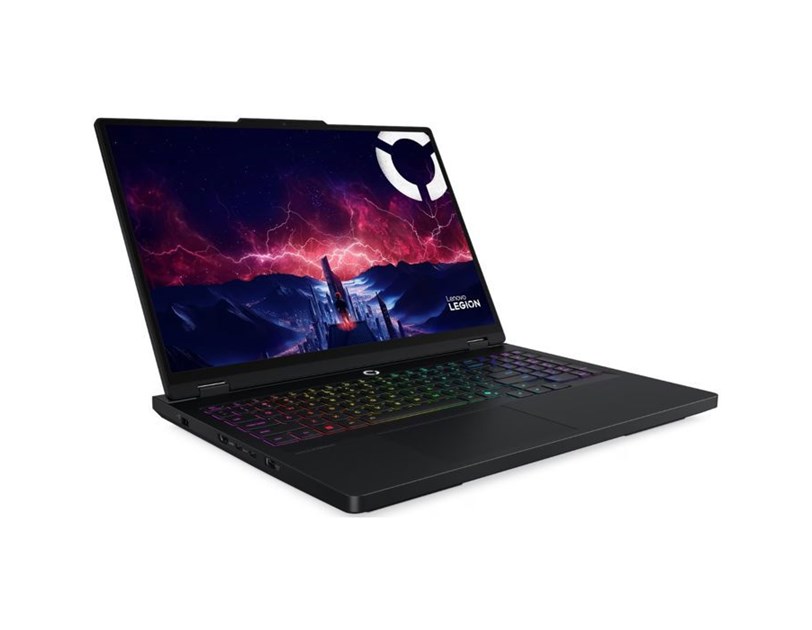

Lenovo Legion Pro 5 16AFR10 16" WQXGA OLED, Ryzen 9 9955HX, 32GB DDR5, 1TB SSD, RTX 5070 8GB, WiFi-ax/BT, FreeDOS

Processor : AMD Ryzen™ 9 9955HX (16C / 32T, 2.5 / 5.4GHz, 16MB L2 / 64MB L3)
AI PC Category: AI-Powered Gaming PC
Graphics: NVIDIA GeForce RTX™ 5070 8GB GDDR7, Boost Clock 2347MHz, TGP 115W, 798 AI TOPS
Chipset: AMD SoC Platform
Memory
2x 16GB SODIMM DDR5-5600
Memory Slots
Two DDR5 SODIMM slots, dual-channel capable
Max Memory
Up to 32GB DDR5-5600 offering
Storage
1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Storage Slot
Two M.2 2280 PCIe® 4.0 x4 slots
Max Storage Support
Up to two drives, 2x M.2 SSD

• M.2 2242 SSD up to 1TB

• M.2 2280 SSD up to 1TB

Optical: None
Card Reader: No Card Reader
Audio Chip : High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers : Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio
Microphone :2x, Array
Camera: 5.0MP with E-shutter
Battery: 80Wh
Power Adapter: 245W Slim Tip (3-pin)
Special Features : AI Chip: LA3

DESIGN
Display
16" WQXGA (2560x1600) OLED 1100nits (peak) / 500nits (typical) Glossy, 100% DCI-P3, 165Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance
Touchscreen
None
Screen-to-Body Ratio
91.7% AAR (active area ratio)
Color Calibration
Factory Color Calibration
Pen
Pen Not Supported
Keyboard
24-Zone RGB Backlit, Slovenian
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Dimensions (WxDxH)
364.38 x 268.06 x 21.69-25.95 mm (14.35 x 10.55 x 0.85-1.02 inches)
Weight
Around 2.3 kg (5.07 lbs)
Case Color
Eclipse Black
Case Material
Aluminium (Top), PC-ABS (Bottom)
Surface Treatment
Anodizing Sandblasting
SOFTWARE
Operating System
None
Bundled Software
None
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 7, 802.11be 2x2 + BT5.4
WWAN
WWAN Not Supported
Ethernet
100/1000M (RJ-45)
Standard Ports
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 2.1
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Slim tip Power connector
Docking
Various docking solutions supported via USB-C
For more compatible docking solutions, please visit Docking for Legion Pro 5 16AFR10
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader
No Fingerprint Reader
Other Security
E-shutter
