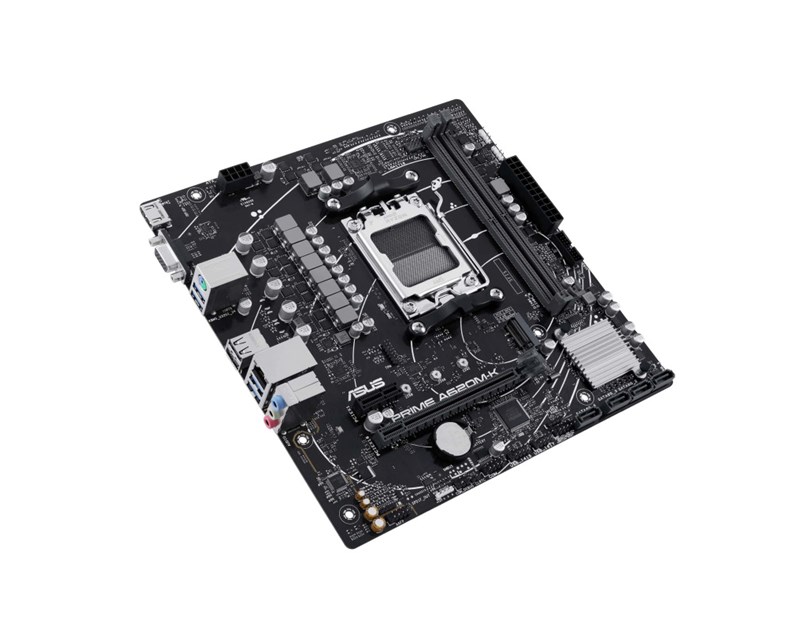

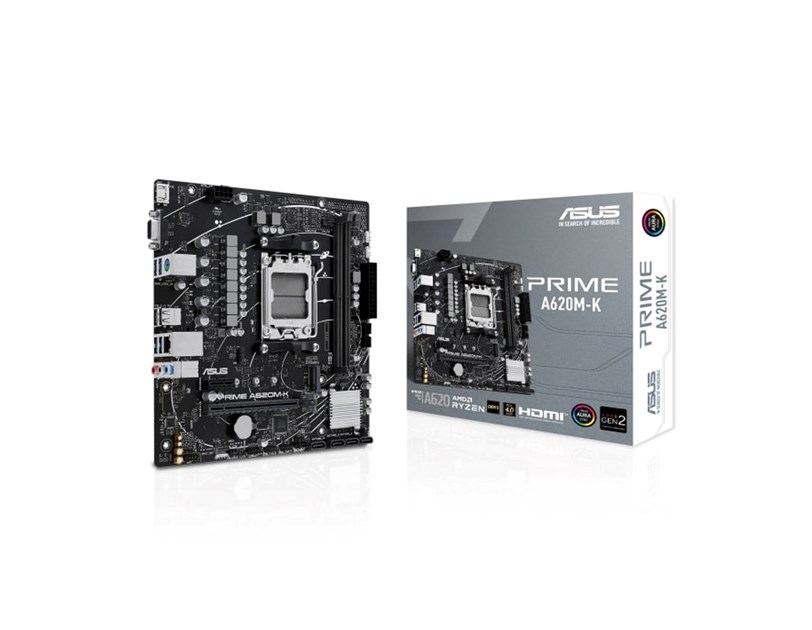

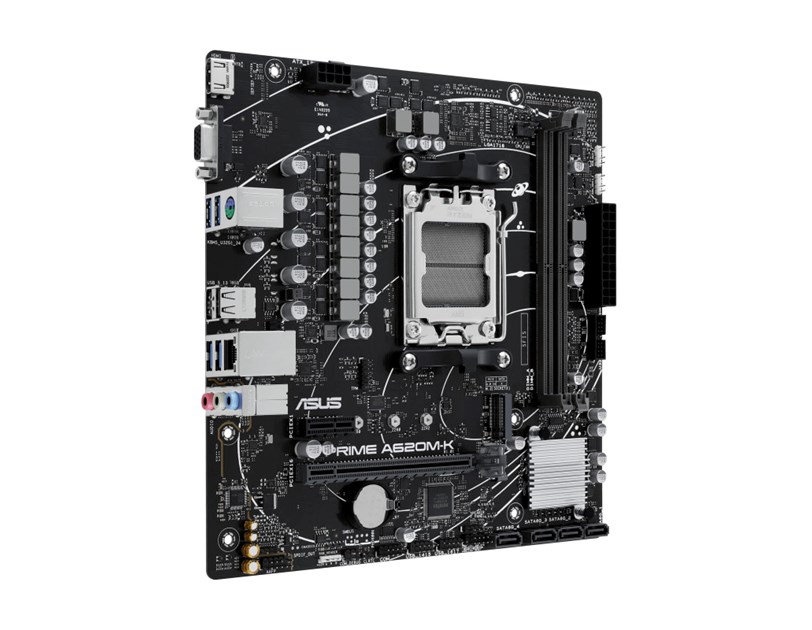

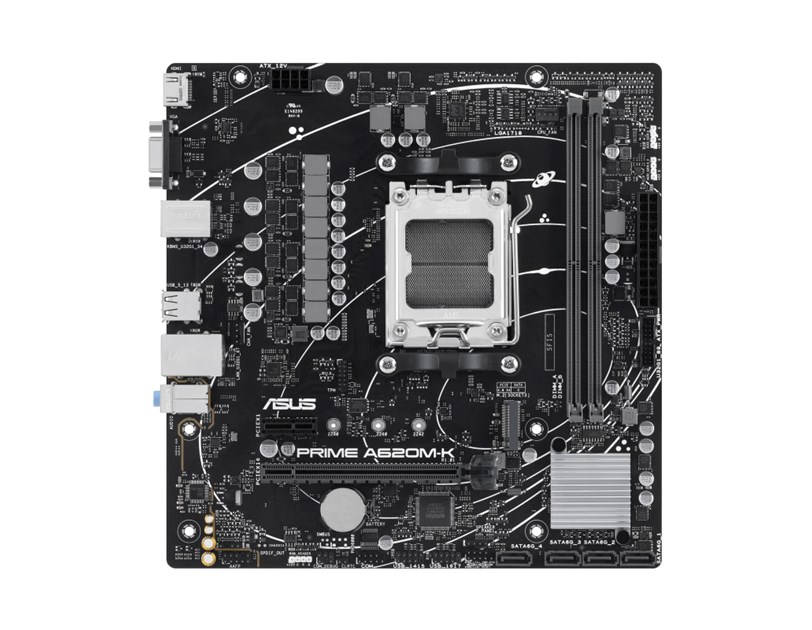

Asus PRIME A620M-K, S. AM5, 2× DDR5-7200MHz (OC), PCIe 4.0,VGA/HDMI mATX

- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AM5 Socket for AMD Ryzen Desktop Processors
- Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
- Comprehensive Cooling: PCH heatsink and Fan Xpert
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Specifications
- Model: PRIME A620M-K
- CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Supports up to AMD 120W CPU
- Chipset: AMD A620 Chipset
- Memory: 2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture: Supports AMD Extended Profiles for Overclocking (EXPO)

Graphics
- 1 x VGA port
- 1 x HDMI port

Expansion Slots
- AMD Ryzen 9000 & 7000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x16 mode)
- AMD Ryzen 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
- AMD A620 Chipset
- 1 x PCIe 3.0 x1 slot

Storage
- Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*
- AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- AMD A620 Chipset
- 4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet
- 1 x Realtek 1Gb Ethernet

USB
- Rear USB (Total 6 ports)

• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)

• 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 6 ports)

• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

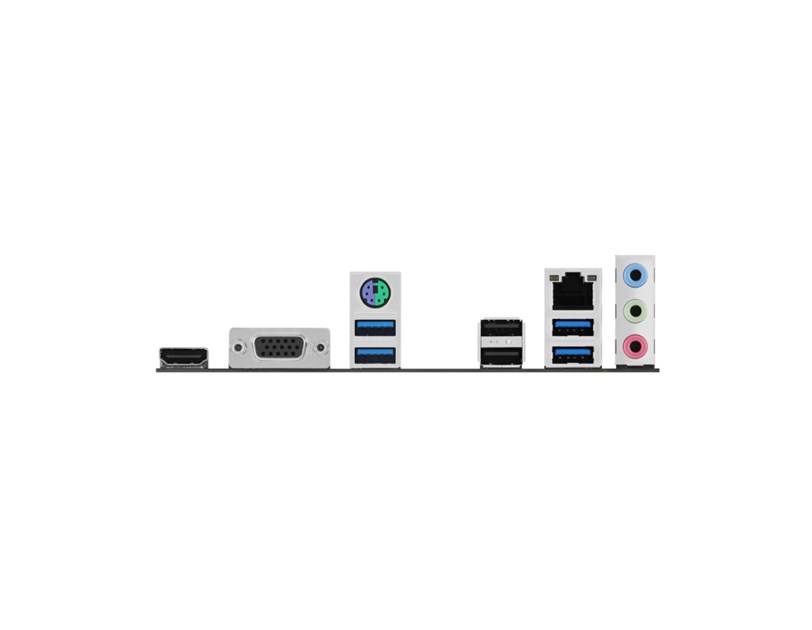

Back Panel I/O Ports
- 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x VGA port
- 1 x HDMI port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header

Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector

Storage related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports

USB
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
- 2 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O

ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot

ASUS Thermal Solution
- Aluminum heatsink design

Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert
- Power Saving
- Two-Way AI Noise Cancellation

AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner

ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS

Manageability
- WOL by PME, PXE

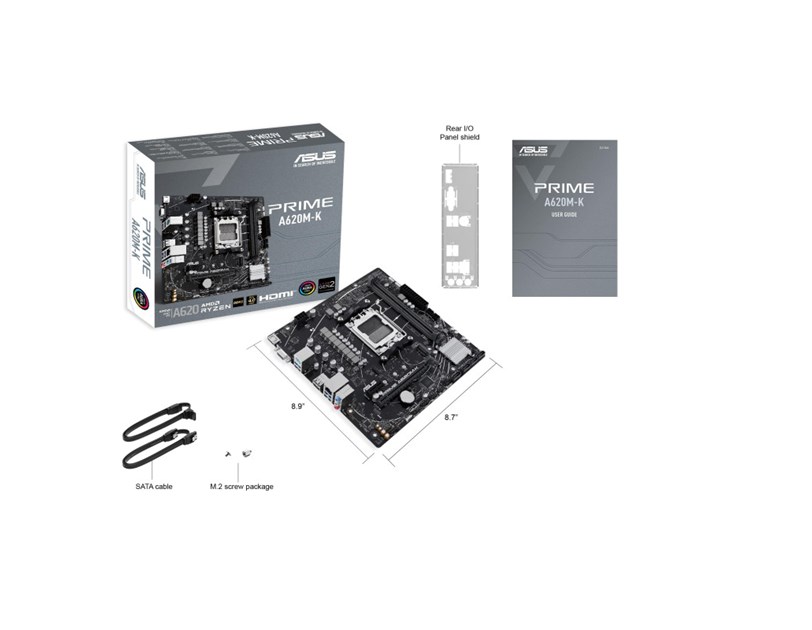

Accessories
- Cables: 2 x SATA 6Gb/s cables
- Miscellaneous

• 1 x I/O Shield

• 1 x Screw package for M.2 SSD
- Documentation

• 1 x User guide

Operating System
- Windows 11, Windows 10 64-bit

Form Factor
- micro-ATX Form Factor: 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
