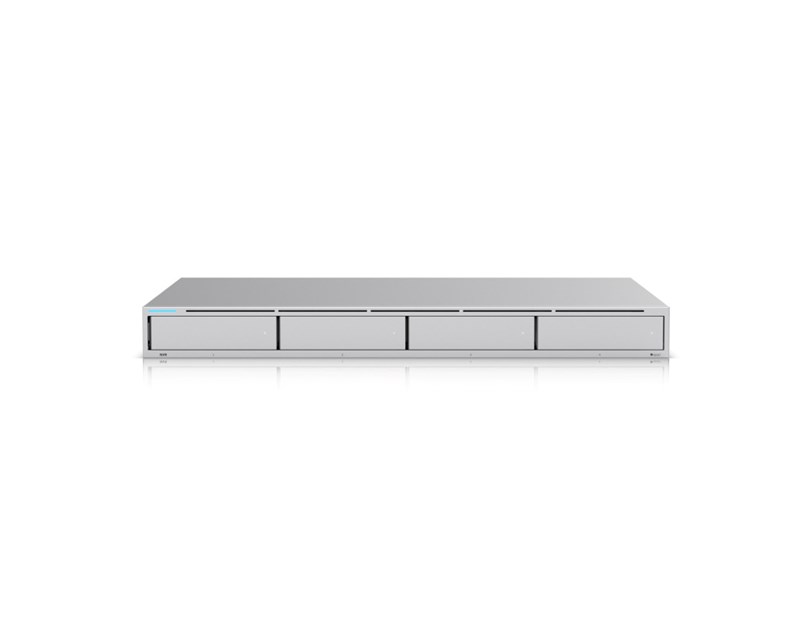

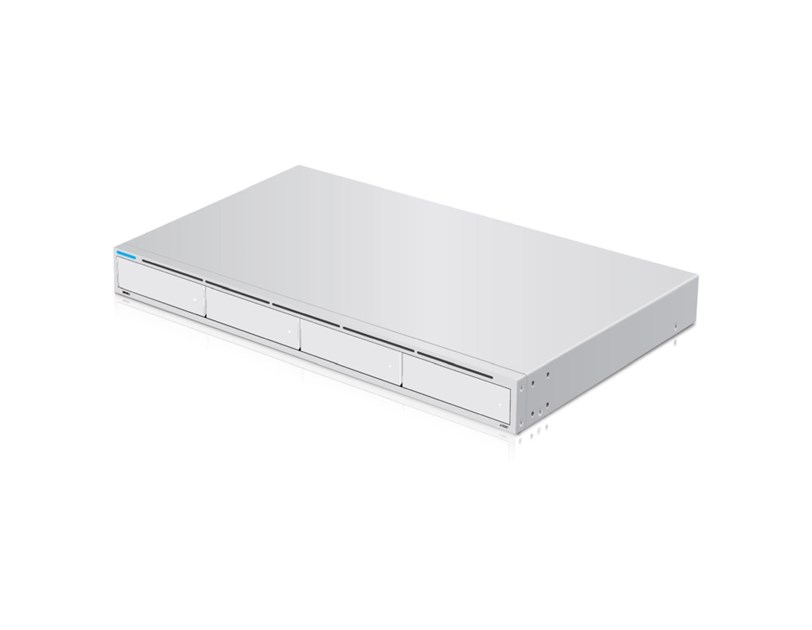

Ubiquiti UniFi Network Video Recorder (UNVR)

- A video recorder with (4) 2.5/3.5" HDD bays that can support up to 30 days of storage for (15) 4K cameras or (50) Full HD cameras

Features
- (1) 10G SFP+ port
- (1) GbE RJ45 port
- Automatic HDD RAID configuration for data redundancy
- Connects to a Power Backup for enhanced power redundancy

Specifications
Mechanical

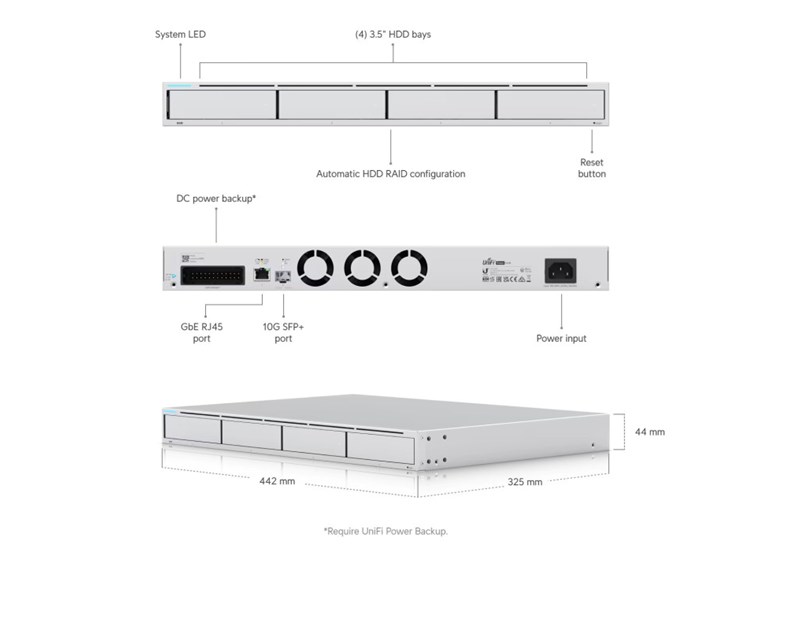

- Dimensions 442.4 x 325 x 43.7 mm
- Weight Without Rackmount Brackets: 5.11 kg
- With Rackmount Brackets: 5.20 kg
- Enclosure Material: SGCC Steel


Hardware
- Processor Quad-Core ARM Cortex -A57 at 1.7 GHz
- System Memory: 4 GB
- On-Board Flash Storage: 8 GB
- Max. Power Consumption: 100W
- Max. Power Budgetfor Drives: 75W
- Power Method:
* (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
* (1) USP-RPS DC input, 11.5VDC, 10.43A
- Power Supply: AC/DC, Internal, 120W
- Networking Interfaces:_
* (1) 10/100/1000 Mbps RJ45 Ethernet
* (1) 1/10 Gbps SFP+ Ethernet
- Management Interface: EthernetIn-Band Management
- ESD/EMP Protection: Air: ± 12kV, Contact: ± 8kV
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 5 - 95% Noncondensing
- Certications: FCC, CE, IC


LEDs

- System:
* (1) Power, Blue/White
* Flashing White: Bootup in Progress
* Flashing Blue/White: Firmware Upgrading
* Steady White: Factory Defaults, Awaiting Adoption
* Steady Blue: Device is Adopted
- Ethernet:
* Green: 1000 Mbps
* Amber: 10/100 Mbps
- SFP+:
* White: 10 Gbps
* Green: 1 Gbps
- HDD:
* Amber: Disk Error
* White: Disk Detected
- RPS: Blue: Ready
