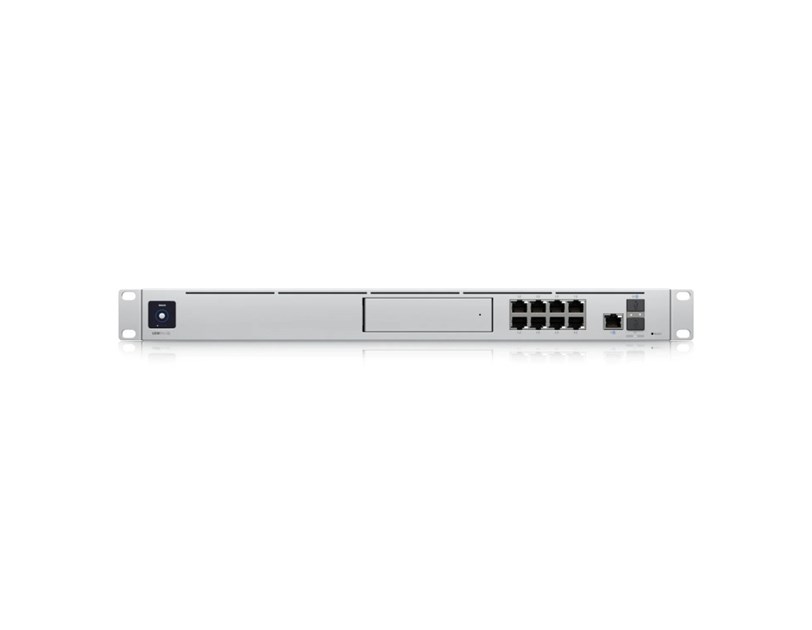

Ubiquiti UniFi Dream Machine Special Edition 8-portni PoE/PoE+ switch, 1x10G SFP+, 8xGbE RJ45 LAN, 2xPoE+, 6xPoE, 1x10G SFP+*, 1x2.5 GbE RJ45 WAN

- Enterprise-grade, rack-mount UniFi Cloud Gateway with full UniFi application support, 10 Gbps performance, and an integrated PoE switch.
- Includes full UniFi application suite for device management

Features
- 3.5+ Gbps routing with IDS/IPS
- Integrated 8-port PoE/PoE+ switch
- (1) 10G SFP+*, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE
- (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
- 1.3" touchscreen
- 128 GB SSD & 3.5" NVR HDD bay

Specifications
Mechanical
- Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
- Weight: 5 kg (10.9 lb)
- Enclosure material: Aluminium CNC, SGCC steel
- Mount material: SGCC steel

Hardware
- Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
- System memory: 4 GB DDR4
- On-board storage: 16 GB eMMC
- Integrated: 128 GB SSD

Management interface
- Ethernet
- Bluetooth

Networking interface
- LAN:

• (8) GbE RJ45 ports

• (1) 10G SFP+ port
- WAN:

• (1) 2.5 GbE RJ45 port

• (1) 10G SFP+ port

PoE interface
- (6) PoE (Pair A 1, 2+; 3, 6-)
- (2) PoE+ (Pair A 1, 2+; 3, 6-)

IDS/IPS throughput:
- 3.5 Gbps*
*Measured with iPerf3

Power method
- (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz
- (1) USP-RPS DC input, 52V DC, 3.94A
- Power supply: AC/DC, internal, 240W
- Supported voltage range: 100—240V AC
- Max. power consumption:: 50W (Excluding PoE output)
- PoE budget: 180W
- Max. PoE wattage per port by PSE

• PoE: 15.4W

• PoE+: 30W
- Voltage range PoE mode

• PoE: 44—57V

• PoE+: 50—57V
- ESD/EMP protection: Air: ± 15kV, contact: ± 8kV
- LCM display: (1) 1.3" touchscreen
- Button: Factory reset
- Operating temperature: -10 to 40° C (14 to 104° F)
- Operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC

Gateway Features
- Performance

• Redundant WAN with failover and load balancing

• WiFi QoS with UniFi APs

• Application, domain, and country-based QoS

• Application and device type identification

• Additional internet failover with LTE Backup

• Internet quality and outage reporting
- Next-generation security

• Application-aware firewall rules

• Signature-based IPS/IDS threat detection

• Content, country, domain, and ad filtering

• VLAN/subnet-based traffic segmentation

• Full stateful firewall
- Advanced networking

• License-free SD-WAN

• WireGuard, L2TP and OpenVPN server

• OpenVPN client

• OpenVPN and IPsec site-to-site VPN

• One-click Teleport and Identity VPN

• Policy-based WAN and VPN routing

• DHCP relay

• Customizable DHCP server

• IGMP proxy

• IPv6 ISP support

LEDs
- Ethernet: White: link/activity
- SFP+: White: link/activity
- HDD: White: disk activity
- Amber: disk error
- RPS: Blue: ready
