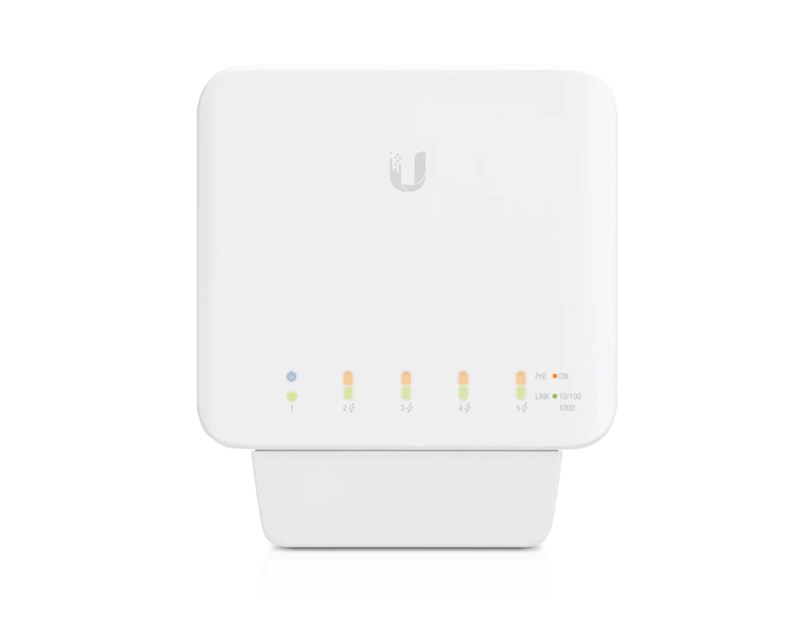

Ubiquiti UniFi 5-Port Gigabit Managed Ethernet switch, PoE support (USW-FLEX)

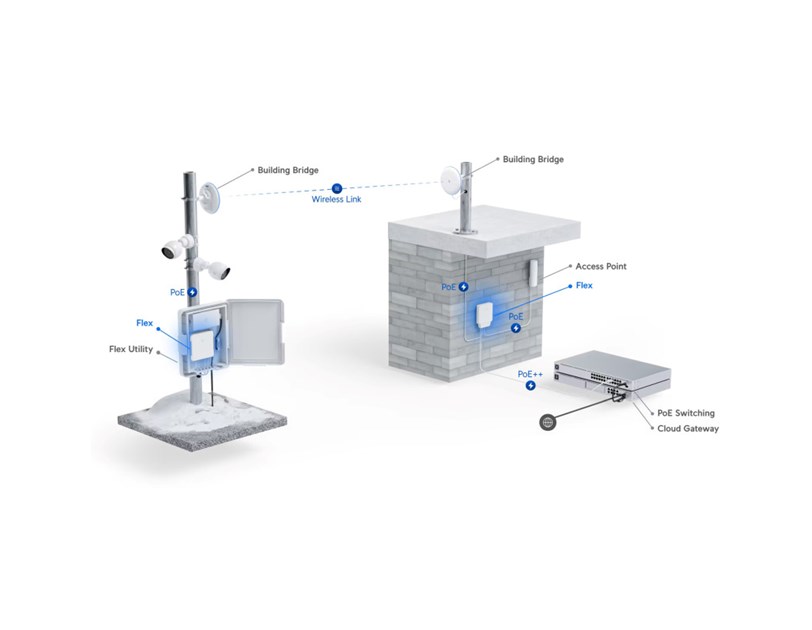

- Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.

Features
- (4) GbE PoE+ ports
- (1) GbE PoE++ input port for power
- 46W PoE availability* PoE++ input
- 20W PoE availability PoE+ input
- 8W PoE availability PoE input
- Indoor/Outdoor

Specifications
Mechanical

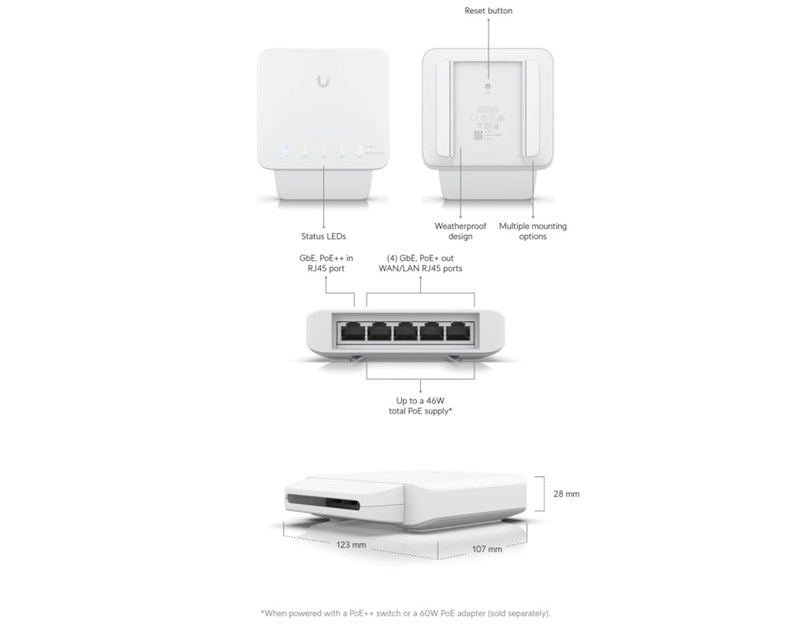

- Dimensions: 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1")
- Weight: 230 g (8.1 oz)

Hardware
- Management interface: Ethernet In-Band
- Networking interface: (5) GbE RJ45 ports
- PoE interface: (4) PoE+ (Pins 1, 2+; 3, 6-)
- Total non-blocking throughput: 5 Gbps
- Switching capacity: 10 Gbps
- Power method: PoE++
- Power supply

• PoE/PoE+ (Pins 1, 2+; 3, 6-)

• PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)

• 50V/60W PoE adapter (Not included)
- Supported voltage range

• PoE: 44—57V DC

• PoE+/PoE++: 50—57V DC
- Max. power consumption: 5W (Excluding PoE output)
- Total available PoE: 46W*
*When powered with a PoE++ switch or a 60W PoE adapter (Sold separately).
- Max. PoE wattage per port by PSE: 25W
- ESD/EMP protection : Air/contact: ± 16kV
- Button: Factory reset
- Ambient operating temperature

• 46W PoE output: -40 to 55° C (-40 to 131° F)

• 25W PoE output: -40 to 65° C (-40 to 149° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC

Switching Features
- Layer 2 features:

• Port isolation

• Port mirroring

• Multicast / broadcast rate limiting

• Flow control

• Jumbo frames

• Egress rate limit
- Layer 3 features: –

LEDs
- System: Status
- Ethernet:

• PoE

• Speed/link/activity
- PoE: Link/activity

Application Requirements
- UniFi Network: Version 5.10.3 and later
