Ubiquiti LTU-Lite, 5GHz LTU, CPE
20241108T13_20_12Z.png)
-
Šifra artikla56652
-
Kataloški brojLTU-Lite
-
Jamstvo24 mjeseca
{{CurrentProduct.SinglePriceToPay_print}}
- 5 GHz PtMP LTU Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation
- Incorporating Ubiquitis proprietary LTU technology, the LTU-Lite is a 5 GHz radio with an integrated antenna design for use as a PtMP CPE
- LTU technology breaks through the limitations of 802.11 Wi-Fi technology and supports 1024 QAM for superior performance
- Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference
OVERVIEW
- Featuring an integrated antenna, the LTU Lite is a compact, cost-effective subscriber station utilizing the 5 GHz radio band
- It functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket as the basestation
PROPRIETARY LTU TECHNOLOGY
- Based on Ubiquitis LTU technology, the LTU Lite is not impeded by the limitations of standard 802.11 Wi-Fi technology
- Its custom LTU silicon and radio architecture provide up to 600+ Mbps (1+ Gbps with future firmware upgrade.) of real TCP/IP throughput and modulation rates of up to 4096QAM (Available with future firmware upgrade)
CPE MODES
- The LTU Lite supports both bridged and built-in hardware NAT router modes to suit your specific deployment
FREQUENCY SPLIT
- The LTU Lite can use different frequencies for TX and RX to avoid interference
CONVENIENT MOUNT OPTIONS

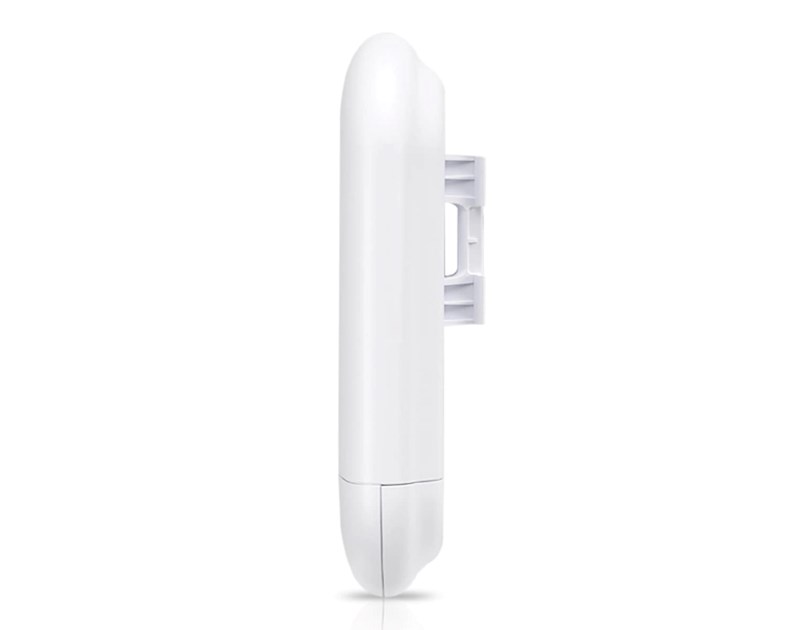

- The LTU Lite is designed for quick yet reliable mounting on a pole or on a wall. All necessary mounting hardware is included
Features
- PtMP CPE
- 1024 QAM
- 10/20/30/40/50 MHz channel bandwidth
- Central configuration management from AP side
- Frequency split
- Auto power adjustments
- Router mode support
Specifications

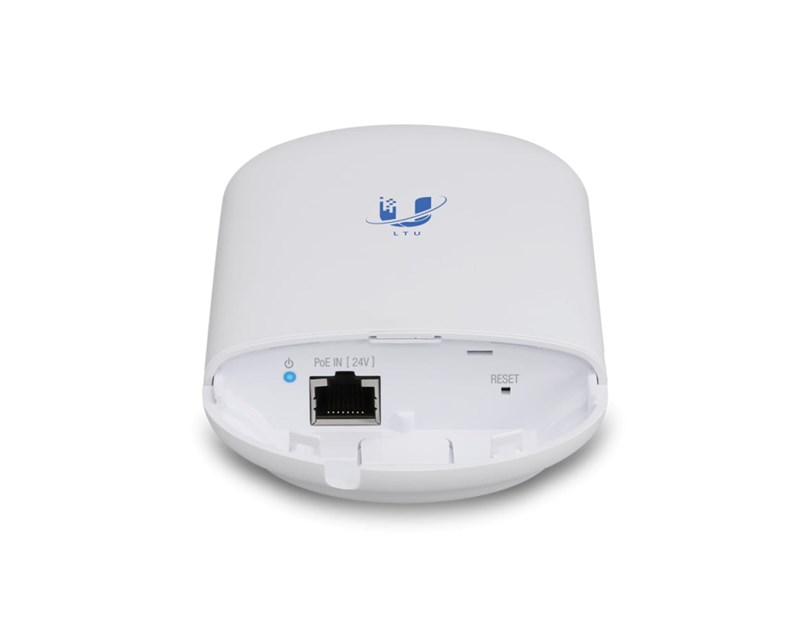

- Networking Interface: 1× 10/100/1000 Ethernet Port
- Enclosure: Outdoor UV Stabilized Plastic
- Max. Power Consumption: 8.5W
- Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
- Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8-)
- Voltage Range: 22 - 26V
- Max. Conducted TX Power: 22 dBm per Chain
- Gain: 13 dBi
- Cross-pol Isolation: 20 dB Minimum
- Max. VSWR: 1.8:1
- Beamwidth: 45 (H-pol) / 45 (V-pol) / 45 (Elevation)
- Polarization: Dual Linear
- Mounting: Pole-Mount Wall Mount (Kit Included)
- Wind Loading: 20 N @ 200 km/h (4.5 lbf @ 125 mph)
- Wind Survivability: 200 km/h (125 mph)
- ESD/EMP Protection: +/- 24kV Contact/Air
- Operating Temperature: -40C to 60C (-40F to 140F)
- Operating Humidity: 5% to 95% Noncondensing
- Certifications: CE, FCC, IC

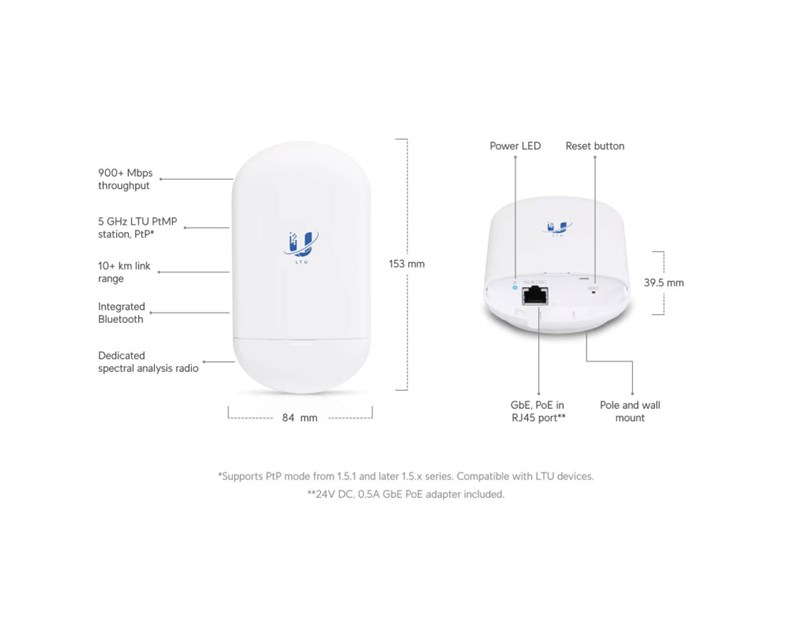

- Dimensions: 153×84×39.5 mm
- Weight: 250 g
