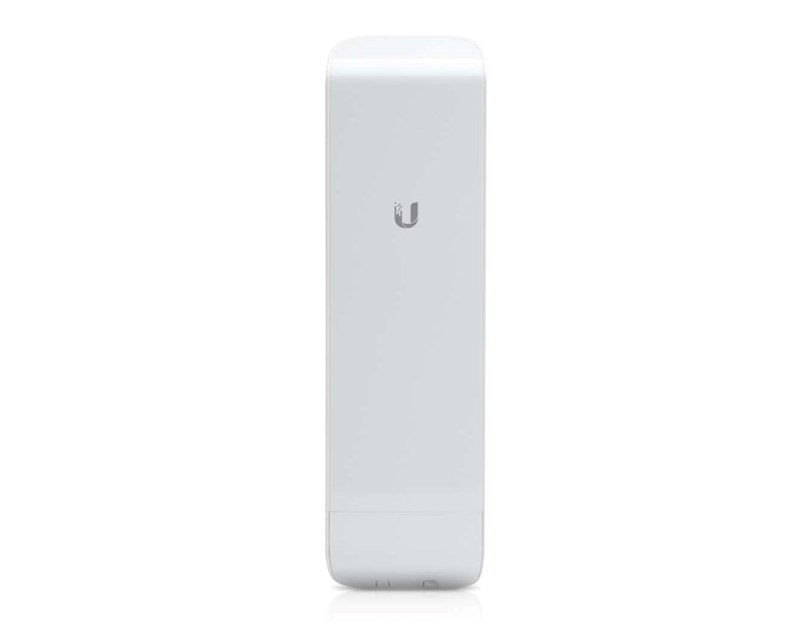

Ubiquiti airMax NanoStation M NSM5, 5GHz, 15+km
20241108T13_20_12Z.png)
-
Šifra artikla36111
-
Kataloški brojNSM5
-
Jamstvo12 mjeseci
{{CurrentProduct.SinglePriceToPay_print}}
COMPACT CPE DESIGN
- The NanoStation M features the CPE design that expanded the global Wireless ISP industry
PLUG AND PLAY INSTALLATION
- The NanoStation M requires no tools for assembly; only a single wrench is required for pole-mounting
VERSATILE APPLICATION USE
- The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE

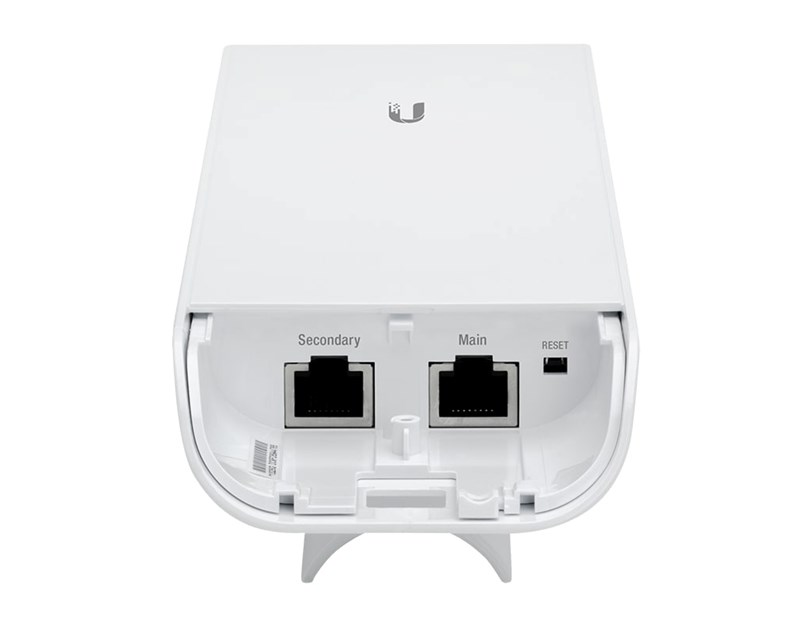

DUAL ETHERNET CONNECTIVITY
- With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration
POWERFUL airOS FEATURES
- Ubiquitis versatile airOS firmware technology enables high-performance, outdoor multi-point networking
- airOS provides features such as wireless settings, bridge or routing configuration and system management services
ADVANCED SOFTWARE TECHNOLOGY
- Ubiquitis airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments
- The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks
WINDOW / WALL MOUNTING KIT
- Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall
- 180° vertical or horizontal adjustment allows for custom positioning
WALL / POLE MOUNTING KIT
- The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation M
- 90° tilt adjustment allows for easy positioning
Specifications
- max. Power Consumption: 8W
- Power Supply (PoE): 24V, 0.5A
- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Operating Frequency: 5170-5875 MHz
- Gain: 14.6 - 16.1 dBi
- Networking Interface: 2 10/100 Ethernet Port
- Processor Specs: Atheros MIPS 74Kc, 560 MHz
- Memory: 64 MB DDR2, 8 MB Flash
- Frequency: 5 GHz
- Cross-pol Isolation: 22 dB min.
- Throughput: 150+ Mbps
- Range: 15+ km
- max. VSWR: 1.6:1
- Beamwidth: 43° (H-pol) / 41° (V-pol) / 15° (Elevation)
- Polarization: Dual Linear
- Enclosure: Outdoor UV Stabilized Plastic
- Mounting: Pole-Mount (Kit Included)
- Operating Temperature: -30C to 75C (-22F to 167F)
- Operating Humidity: 5% to 95% Noncondensing
- Shock & Vibration: ETSI300-019-1.4
- Dimensions: 294×31×80 mm
- Weight: 400 g
- The NanoStation M features the CPE design that expanded the global Wireless ISP industry
PLUG AND PLAY INSTALLATION
- The NanoStation M requires no tools for assembly; only a single wrench is required for pole-mounting
VERSATILE APPLICATION USE
- The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE
DUAL ETHERNET CONNECTIVITY
- With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration
POWERFUL airOS FEATURES
- Ubiquitis versatile airOS firmware technology enables high-performance, outdoor multi-point networking
- airOS provides features such as wireless settings, bridge or routing configuration and system management services
ADVANCED SOFTWARE TECHNOLOGY
- Ubiquitis airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments
- The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks
WINDOW / WALL MOUNTING KIT
- Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall
- 180° vertical or horizontal adjustment allows for custom positioning
WALL / POLE MOUNTING KIT
- The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation M
- 90° tilt adjustment allows for easy positioning
Specifications
- max. Power Consumption: 8W
- Power Supply (PoE): 24V, 0.5A
- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Operating Frequency: 5170-5875 MHz
- Gain: 14.6 - 16.1 dBi
- Networking Interface: 2 10/100 Ethernet Port
- Processor Specs: Atheros MIPS 74Kc, 560 MHz
- Memory: 64 MB DDR2, 8 MB Flash
- Frequency: 5 GHz
- Cross-pol Isolation: 22 dB min.
- Throughput: 150+ Mbps
- Range: 15+ km
- max. VSWR: 1.6:1
- Beamwidth: 43° (H-pol) / 41° (V-pol) / 15° (Elevation)
- Polarization: Dual Linear
- Enclosure: Outdoor UV Stabilized Plastic
- Mounting: Pole-Mount (Kit Included)
- Operating Temperature: -30C to 75C (-22F to 167F)
- Operating Humidity: 5% to 95% Noncondensing
- Shock & Vibration: ETSI300-019-1.4
- Dimensions: 294×31×80 mm
- Weight: 400 g
