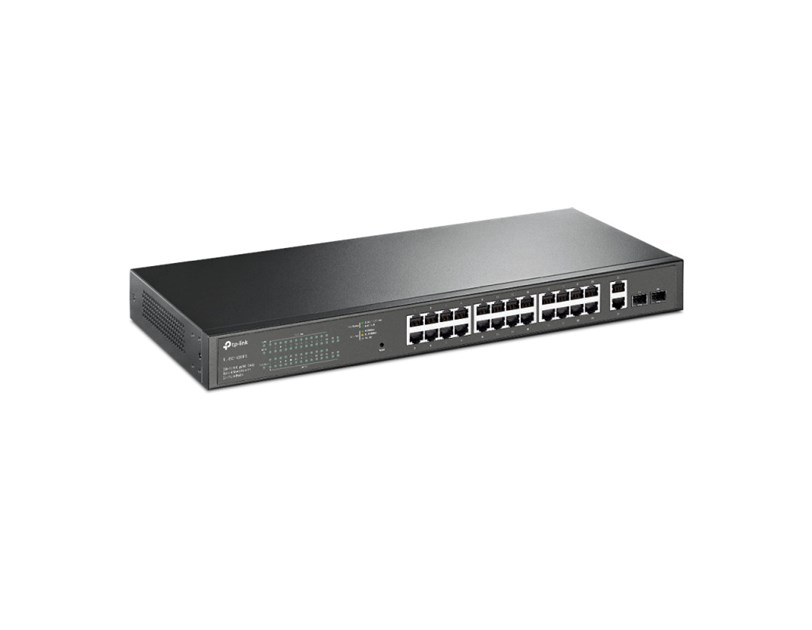

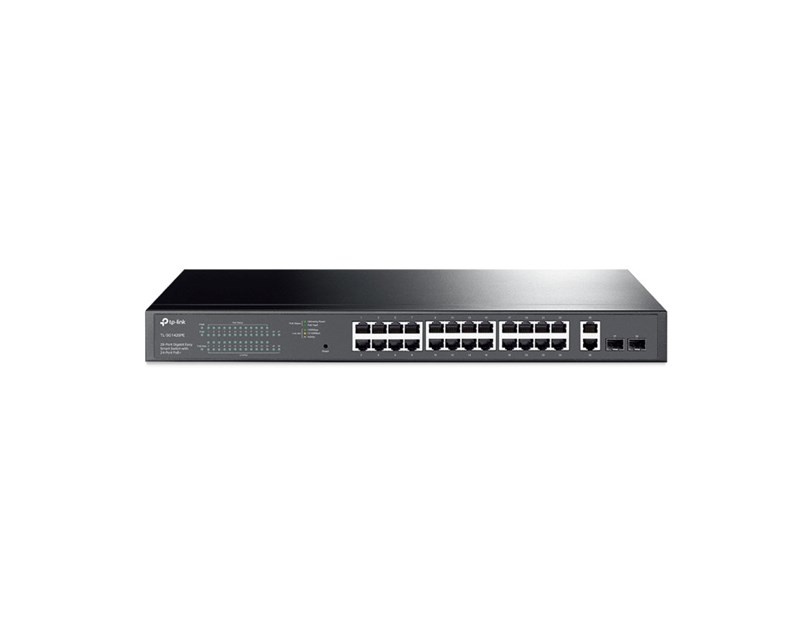

TP-Link Omada JetStream 28-port Gigabit Easy Smart preklopnik (Switch), 24x 10/100/1000 Mbps RJ45 PoE+ port,2x SFP fiber uperlink port, Rack-mount, 250 w PoE+ budget

Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
- Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

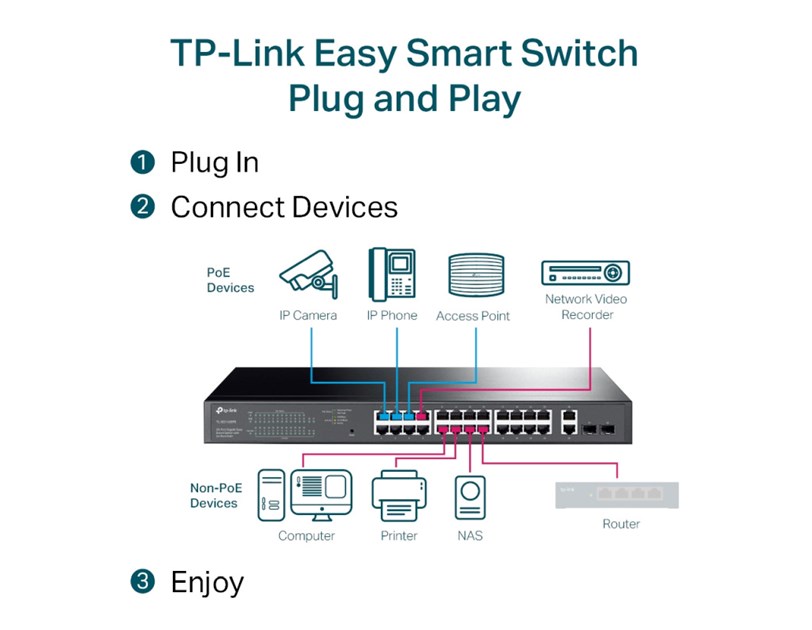

Multiple Application Scenarios
- The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

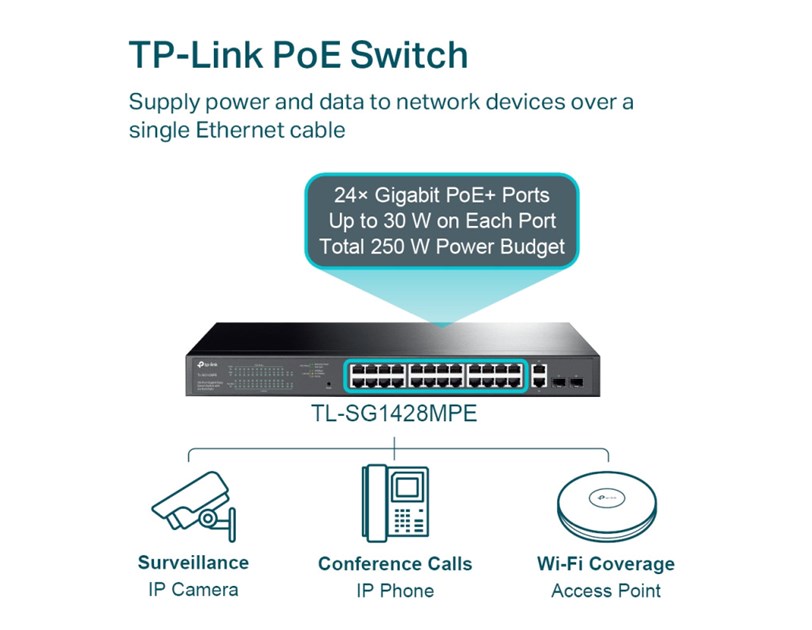

Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
- Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

QoS for a Lag-Free Experience
- Ensures smooth traffic for latency-sensitive applications, such as voice and video

IGMP Snooping for Multicast Optimization
- Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security
- Helps to create a network with higher security and better overall performance by dividing the network into smaller groups

Making Management Easy
- TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

System Self-Healing with PoE Auto Recovery
- The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management to Prevent Power Overload
- Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.

Great Compatibility with PD Detection
- Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

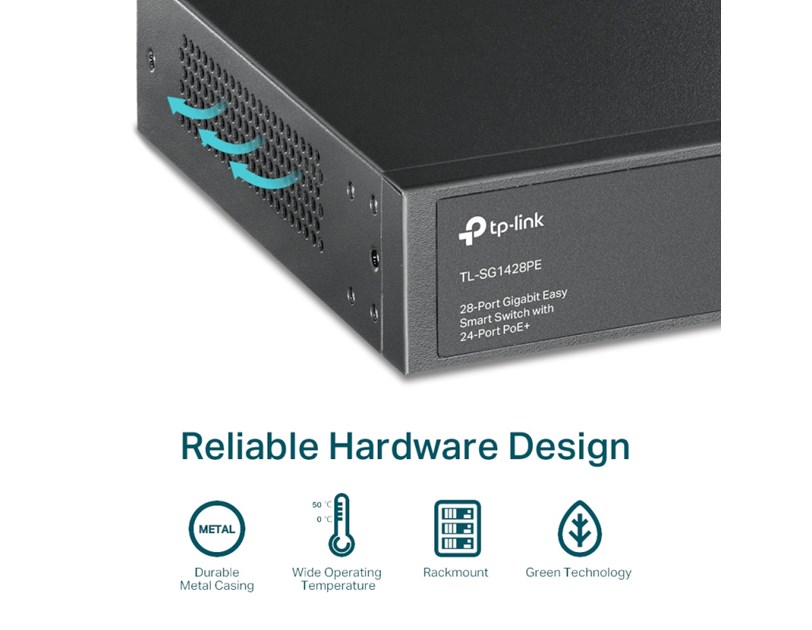

Wide Operating Temperature with Good Heat Dissipation
- Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50?) with reliability.

Specifications
HARDWARE FEATURES
- Standards and Protocols:

• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

• IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
- Interface

• 26 10/100/1000 Mbps RJ45 Ports

• 2 Gigabit SFP Ports
- Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 1000BASE-X MMF, SMF
- Fan Quantity: 2 Fans
- Physical Security Lock: Yes
- Power Supply: 100-240V AC, 50/60 Hz
- PoE+ Ports(RJ45)

• Standard: 802.3at/802.3af compliant

• PoE+ Ports: 24 Ports

• Power Supply: 250 W
- Dimensions ( W x D x H ): 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
- Mounting: Rack Mountable
- Max Power Consumption:

• 27 W (220/50Hz. no PD connected)

• 304.7 W (220/50Hz. with 250 W PD connected)
- Max Heat Dissipation

• 92.07 BTU/h (no PD connected)

• 1039.03 BTU/h (with 250 W PD connected)

PERFORMANCE
- Switching Capacity: 56 Gbps
- Packet Forwarding Rate: 41.7 Mbps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 9 KB

SOFTWARE FEATURES
- Quality of Service

• Support Port-based 802.1p/DSCP priority

• Support 4 priority queues

• Rate Limit

• Storm Control
- L2 Features

• IGMP Snooping V1/V2/V3

• Static Link Aggregation

• Port Mirroring

• Cable Diagnostics

• Loop Prevention

• PoE Auto Recovery
- VLAN

• Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)

• MTU/Port/Tag VLAN
- Management

• Web-Based GUI

• Easy Smart Configuration Utility
- Transmission Method: Store-And-Forward

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents

• TL-SG1428PE

• Power Cord

• Installation Guide

• Rackmount Kit

• Rubber Feet
- Environment

• Operating Temperature: 0°C~50°C (32°F~122°F)

• Storage Temperature: -40°C~70°C (-40°F~158°F)

• Operating Humidity: 10% ~ 90% non-condensing

• Storage Humidity: 5%~90% non-condensing
