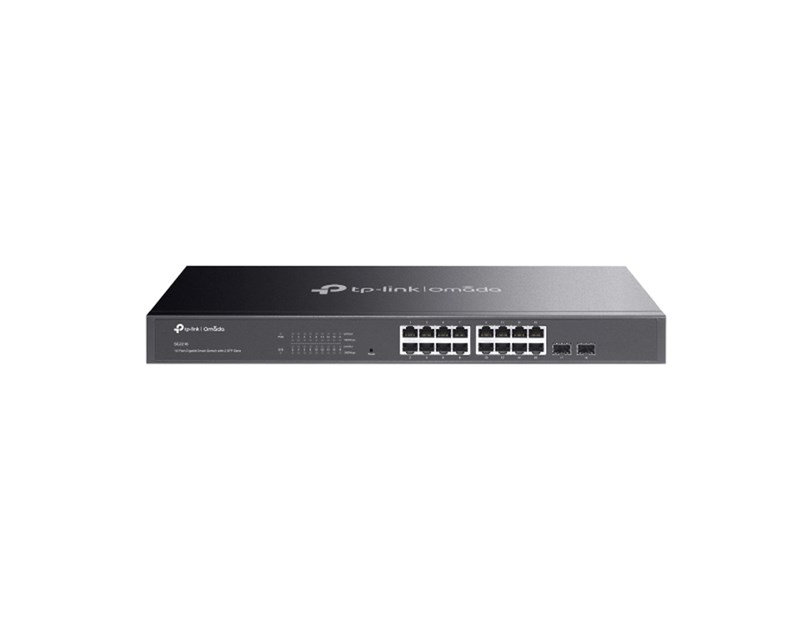

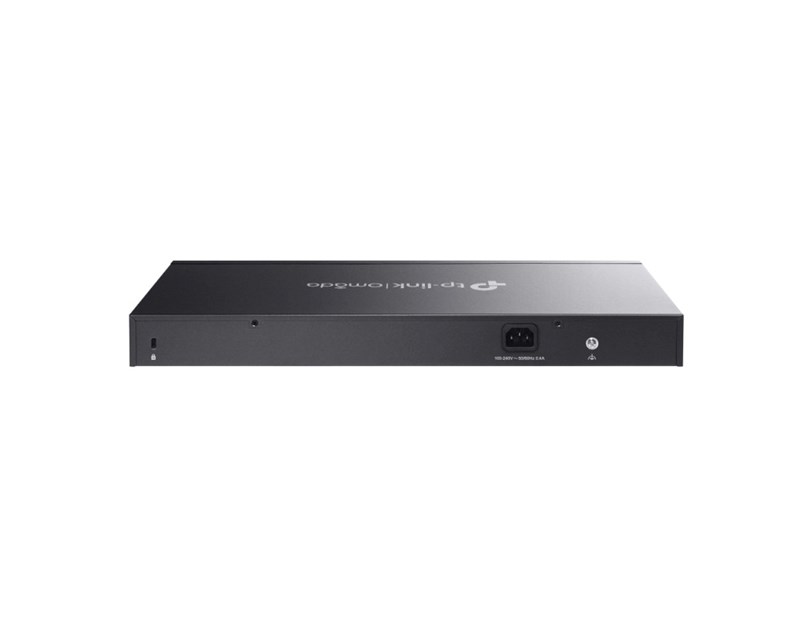

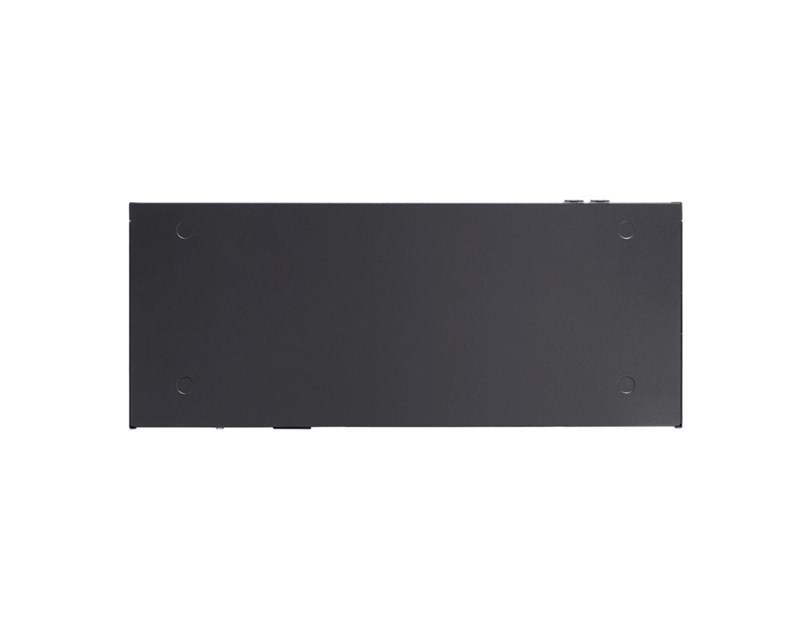

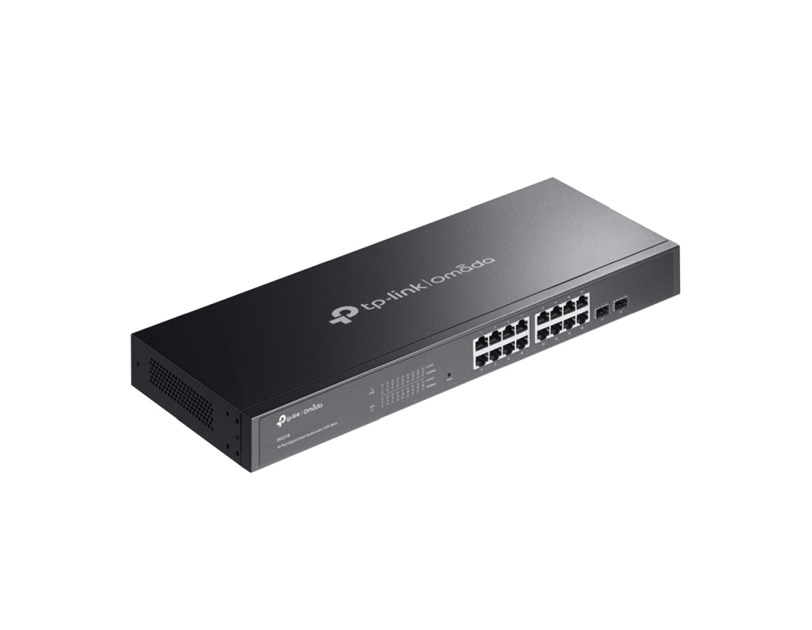

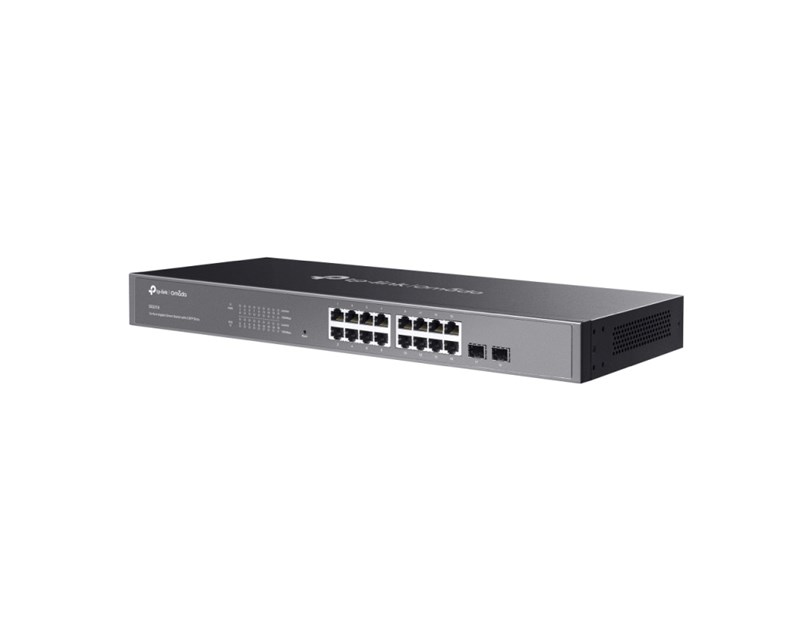

TP-Link Omada JetStream 16-port Gigabit L2+ upravljiv preklopnik (Switch), 16×10/100/1000M RJ45 ports, 2×SFP, 1U 19" rack mount

HARDWARE FEATURES
Interface
• 16× 10/100/1000 Mbps RJ45 Ports

• 2× Gigabit SFP Slots
Fan Quantity Fanless
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 12.3 W (220 V/50 Hz)
Max Heat Dissipation 41.97 BTU/hr
PERFORMANCE
Switching Capacity 36 Gbps
Packet Forwarding Rate 26.8 Mpps
MAC Address Table 8K
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service
• 8 priority queues

• 802.1p CoS/DSCP priority

• Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR

• Bandwidth Control
- Port/Flow based Rating Limiting

• Smoother Performance

• Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
L2 and L2+ Features
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group

• Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect

• Loopback Detection
- Port-based
- VLAN based

• Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention

• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
L2 Multicast
• Supports 511 (IPv4, IPv6) IGMP groups

• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication

• IGMP Authentication

• MVR

• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast

• Multicast Filtering: 256 profiles and 16 entries per profile
VLAN
• VLAN Group
- Max 4K VLAN Groups

• 802.1q Tagged VLAN

• MAC VLAN: 12 Entries

• Protocol VLAN: Protocol Template 16, Protocol VLAN 16

• GVRP

• VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ

• Voice VLAN
Access Control List
• Time-based ACL

• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type

• IP ACL
- Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority

• Combined ACL

• Packet Content ACL

• IPv6 ACL

• Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark

• ACL apply to Port/VLAN
Security
• IP-MAC-Port Binding
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard

• IPv6-MAC-Port Binding
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard

• DoS Defend

• Static/Dynamic Port Security
- Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode

• IP/Port/MAC based access control

• 802.1X
- Port based authentication
- Mac based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication and
accountability

• AAA (including TACACS+)

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6
• IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 ACL

• IPv6 Interface

• Static IPv6 Routing

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
L3 Features
• 16 IPv4/IPv6 Interfaces

• Static Routing
- 48 static routes

• Static ARP

• 316 ARP Entries

• Proxy ARP

• Gratuitous ARP

• DHCP Server

• DHCP Relay

• DHCP L2 Relay
Management
• Web-based GUI

• Command Line Interface (CLI) through console port, telnet

• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• DHCP AutoInstall

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log
Advanced Features
• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller

• Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• ZTP (Zero-Touch Provisioning)*
OTHERS
Certification CE, FCC, RoHS
Package Contents
• TL-SG2218 Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet
Environment
• Operating Temperature: 0–40 ? (32–104 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
