TP-Link Omada Gigabit VPN usmjerivač (Router), 2×10G-LAN SFP+, 1×G-WAN/LAN, 8×G-WAN/LAN, 1×Rj45 console, 2×USB

- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*3, Centralized Cloud Management, and Intelligent Monitoring.

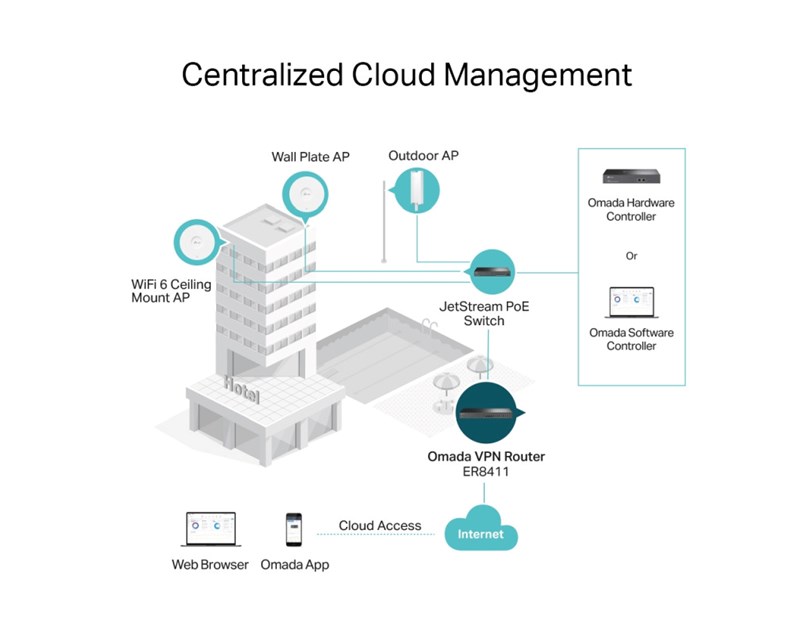

- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

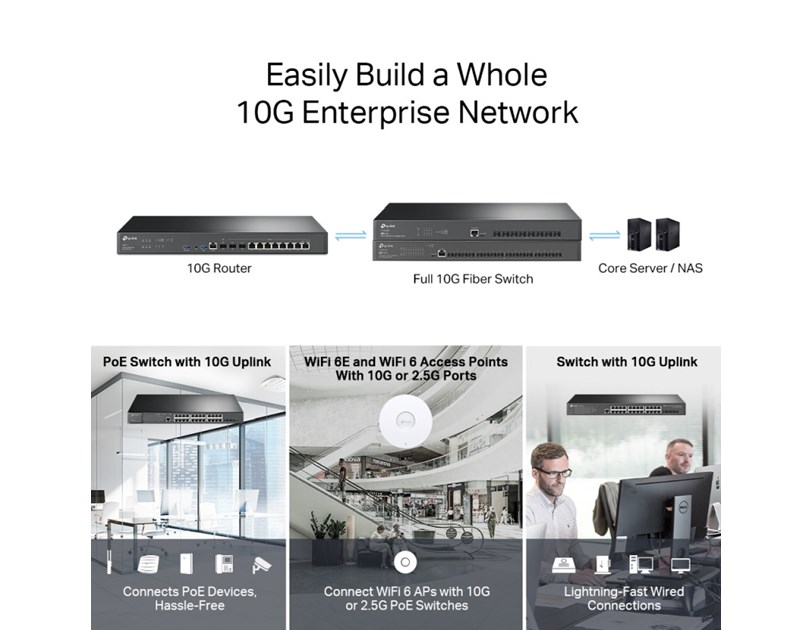

- Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
- Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband 1.

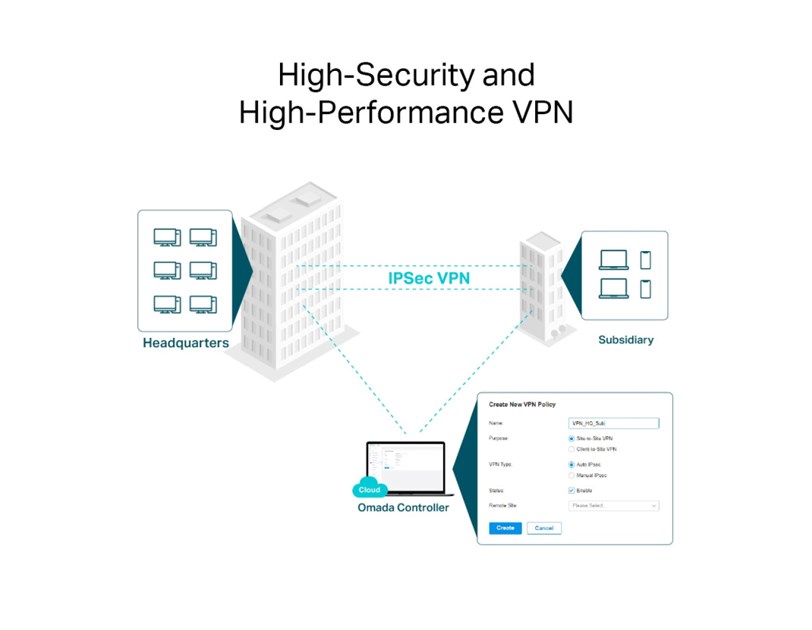

- Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
- Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.

Specifications
HARDWARE FEATURES

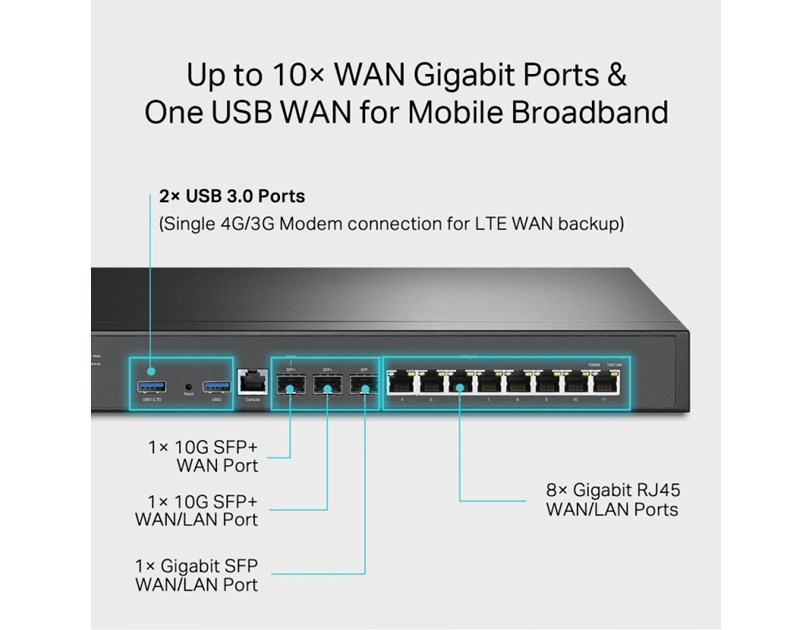

- Interface:
* 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
* 1× 1GE SFP WAN/LAN Ports
* 8× 1GE RJ45 WAN/LAN Ports
* 1× RJ45 Console Ports
* 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
- Button: Reset Button

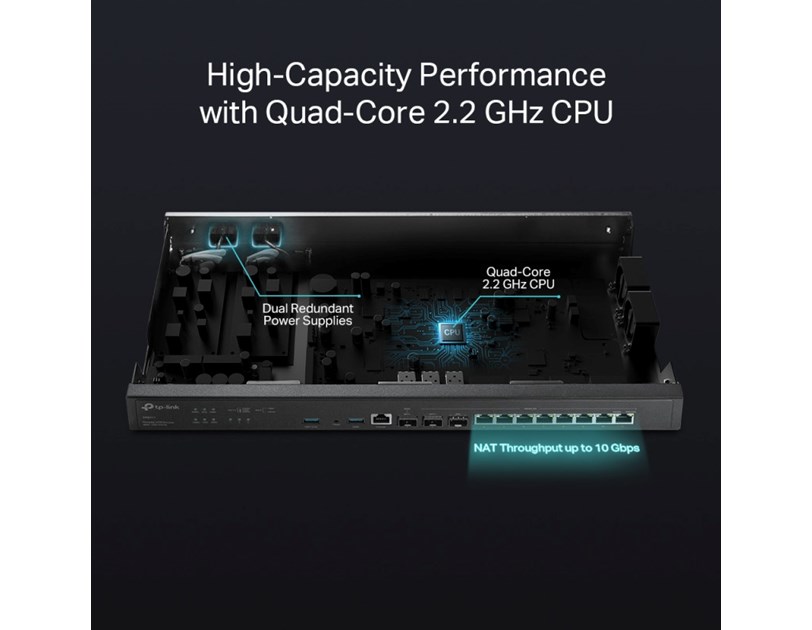

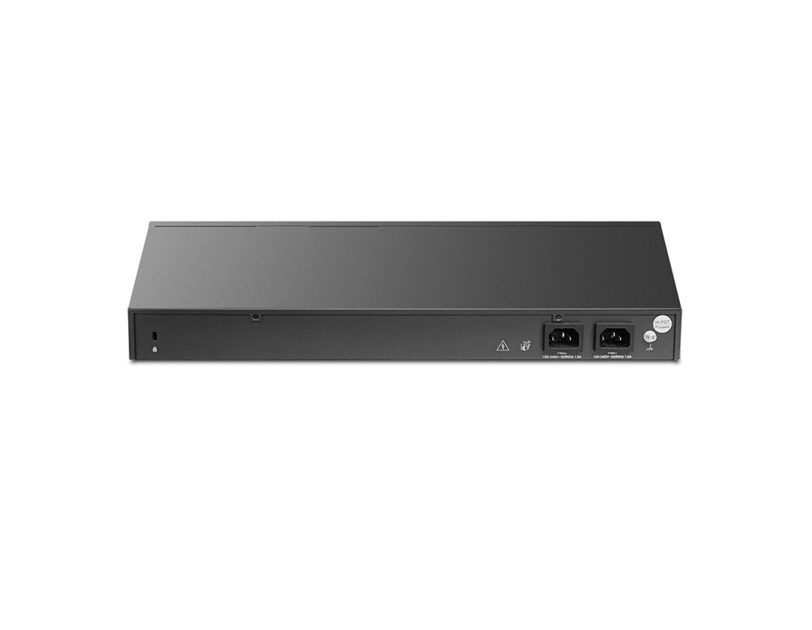

- Power Supply: Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
- Flash: 4MB SPI NOR + 256 MB NAND
- DRAM: 4 GB DDR4
- LED: PWR, SYS, WAN, LAN, USB, FAN
- Dimensions ( W x D x H ): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
- Max Power Consumption
* 26.36 W (with USB 3.0 connected)
* 19.12 W (without USB 3.0 connected)

PERFORMANCE
- Concurrent Session: 2,300,000
- New Sessions /Second: 20,000
- NAT (Static IP)
* Upload: 9445.82 Mbps
* Download: 9449.26 Mbps
- NAT(DHCP)
* Upload: 9426.83 Mbps
* Download: 9426.20 Mbps
- NAT(PPPoE)
* Upload: 9413.96 Mbps
* Download: 9102.01 Mbps
- NAT (L2TP)
* Upload: 4230.62 Mbps
* Download: 4169.53 Mbps
- NAT (PPTP)
* Upload: 3933.86 Mbps
* Download: 3821.97 Mbps
- 64 Byte Packet Forwarding Rate
* Upload: 1080 Mbps
* Download: 1030 Mbps
- IPsec VPN Throughput
* SHA1-AES256: 2140.45 Mbps
* SHA2-AES256: 2080.20 Mbps
- OpenVPN: 1665.64 Mbps
- L2TP VPN Throughput
* Unencrypted: 5013.50 Mbps
* Encrypted: 2274.74 Mbps
- SSL VPN Throughput: 1511.10 Mbps

BASIC FUNCTIONS
- WAN Connection Type
* Static/Dynamic IP
* PPPoE
* PPTP
* L2TP
* 6to4 Tunnel
* Pass-Through
* Mobile Broadband: 4G/3G modem for backup via USB port
- MAC Clone: Modify WAN/LAN MAC Address
- DHCP
* DHCP Server/Client
* DHCP Address Reservation
* Multi-net DHCP
* Multi-IP Interfaces
- IPv6: WAN Connection
- VLAN: 802.1Q VLAN
- IPTV: IGMP v2/v3 Proxy

ADVANCED FUNCTIONS
- ACL: IP/Port/Protocol/Domain Name Filtering
- Advanced Routing
* Static Routing
* Policy Routing
- Bandwidth Control
* IP/Port-based Bandwidth Control
* Guarantee & Limited Bandwidth
- Load Balance
* Intelligent Load Balance
* Application Optimized Routing
* Link Backup (Timing*5, Failover)
* Online Detection
- NAT
* One-to-One NAT*5
* Multi-Net NAT
* Virtual Server
* Port Triggering*5
* NAT-DMZ
* FTP/H.323/SIP/IPSec/PPTP ALG
* UPnP
- Security
* SPI Firewall
* VPN Passthrough
* FTP/H.323/PPTP/SIP/IPsec ALG
* DoS Defence, Ping of Death
* Local Management
- Session Limit: IP-based Session Limit

VPN
- SSL VPN
* SSL VPN Server
* SSL VPN Client
* 500 OpenVPN Tunnels
- IPsec VPN
* 300 IPSec VPN Tunnels
* LAN-to-LAN, Client-to-LAN
* Main, Aggressive Negotiation Mode
* DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
* IKE v1/v2
* MD5, SHA1 Authentication Algorithm
* NAT Traversal (NAT-T)
* Dead Peer Detection (DPD)
* Perfect Forward Secrecy (PFS)
- PPTP VPN
* PPTP VPN Server
* PPTP VPN Client (32)*6
* 300 Tunnels (Shared with L2TP)
* PPTP with MPPE Encryption
- L2TP VPN
* L2TP VPN Server
* L2TP VPN Client (32)*6
* 300 Tunnels (Shared with PPTP)
* L2TP over IPSec
- OpenVPN
* OpenVPN Server
* OpenVPN Client (10)*6
* 110 OpenVPN Tunnels

SECURITY
- Filtering
* WEB Group Filtering*5
* URL Filtering
* Web Security*5
- ARP Inspection
* Sending GARP Packets*5
* ARP Scanning*5
* IP-MAC Binding*5
- Attack Defense
* TCP/UDP/ICMP Flood Defense
* Block TCP Scan (Stealth FIN/Xmas/Null)
* Block Ping from WAN
- Access Control: Source/Destination IP Based Access Control

AUTHENTICATION
- Web Authentication
* No Authentication
* Simple Password*2
* Hotspot(Local User / Voucher*2 / SMS*2 / Radius*2)
* External Radius Sever
* External Portal Sever*2
* Facebook Check-In*2
* Instagram Follow*2

MANAGEMENT
- Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management
* Omada Hardware Controller (OC300)
* Omada Hardware Controller (OC200)
* Omada Software Controller
* Omada Cloud-Based Controller
- Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
- Maintenance
* Web Management Interface
* Remote Management
* Export & Import Configuration
* SNMP v1/v2c/v3
* Diagnostics (Ping & Traceroute)*5
* NTP Synchronize*5
* Syslog Support
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
- Management Features
* Automatic Device Discovery
* Intelligent Network Monitoring
* Abnormal Event Warnings
* Unified Configuration
* Reboot Schedule
* Captive Portal Configuration

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents
* Omada 10G Multi-WAN Security Gateway ER8411
* Power Cord
* Rack-Mount Kit
* Quick Installation Guide
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
- Environment
* Operating Temperature: 0–40 ? (32–104 ?);
* Storage Temperature: -40–70 ? (-40–158 ?)
* Operating Humidity: 10–90% RH non-condensing
* Storage Humidity: 5–90% RH non-condensing
