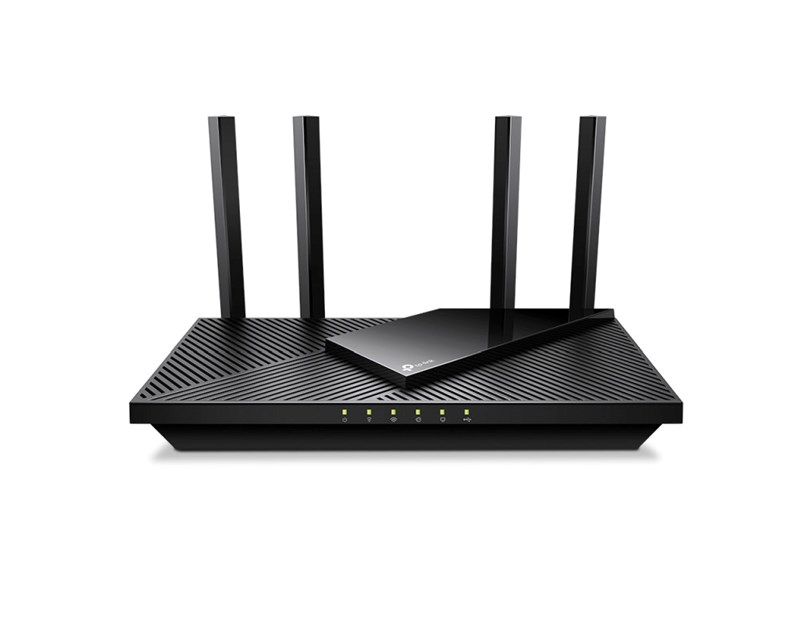

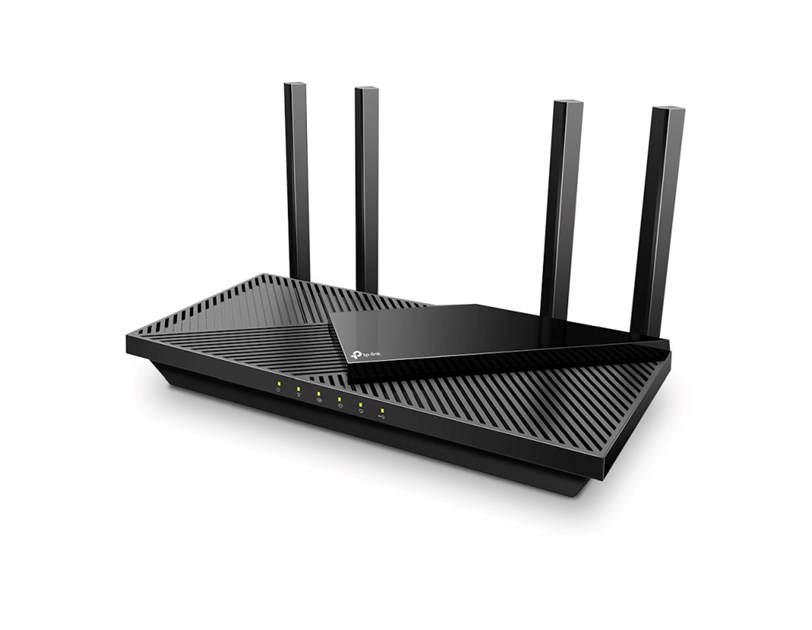

TP-Link AX3000 Archer AX55 Pro bežični usmjerivač (Dual-Band Router Wi-Fi 6) Multi-Gigabit 574 Mbps/2402 Mbps (2.4 GHz/5 GHz) 802.11ax/a/b/g/n/ac, 2× WAN/LAN, 3× Gigabit LAN, USB 3.0, 4×fiksne antene

Faster Dual-Band AX3000 WiFi:
- Up to 3.0 Gbps (2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.

2.5G Multi-Gigabit Port:
- 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.

Maximized Coverage:
- Four high-gain antennas equipped with Beamforming ensure vast coverage.

Connect More Devices:
- OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.‡

VPN Client Supported:
- Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.

TP-Link HomeShield:
- Enhanced security defends against the latest cyber threats.?

TP-Link OneMesh Supported:
- Flexibly Create Whole Home WiFi with Archer AX55 Pro by adding a OneMesh supported Range Extender.

Compatible with Alexa:
- Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Specifications
WIRELESS
- Standards: Wi-Fi 6

• IEEE 802.11ax/ac/n/a 5 GHz

• IEEE 802.11ax/n/b/g 2.4 GHz
- WiFi Speeds: AX3000

• 5 GHz: 2402 Mbps (802.11ax, HE160)

• 2.4 GHz: 574 Mbps (802.11ax)
- WiFi Range: 3 Bedroom Houses

• 4× Fixed High-Performance Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas

• Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range

• High-Power FEM: Improves transmission power to strengthen signal coverage
- WiFi Capacity: High

• Dual-Band: Allocate devices to different bands for optimal performance

• OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients

• Airtime Fairness: Improves network efficiency by limiting excessive occupation

• DFS: Access an extra band to reduce congestion

• 4 Streams: Connect your devices to more bandwidth
- Working Modes

• Router Mode

• Access Point Mode

SECURITY
- Network Security:

• SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway
- HomeShield Security

• Real-Time IoT Protection

• Malicious Site Blocker

• Intrusion Prevention System

• DDoS Attack Prevention

• Home Network Scanner
- Guest Network

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

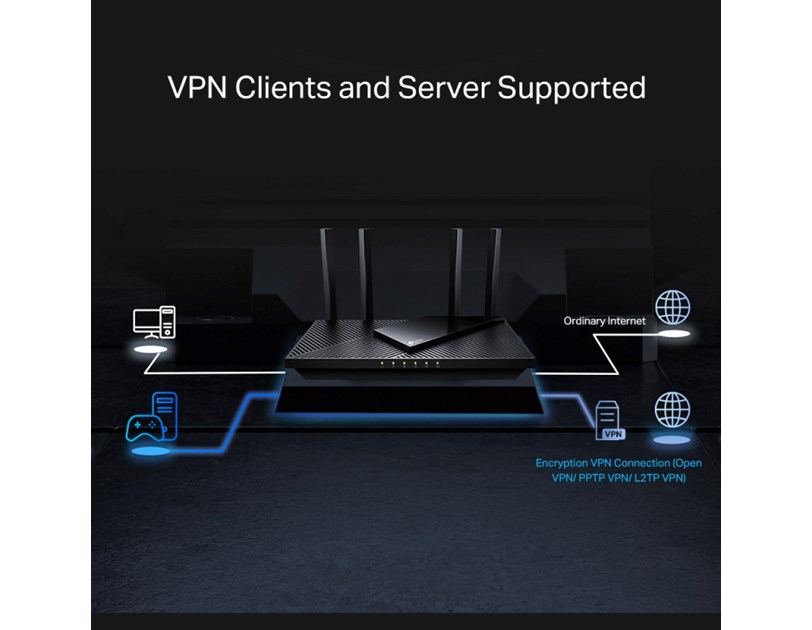

- VPN Server

• OpenVPN

• PPTP

• L2TP
- VPN Client

• OpenVPN

• PPTP

• L2TP
- WiFi Encryption

• WPA3*

• WPA2

• WPA

• WPA/WPA2-Enterprise (802.1x)

HARDWARE

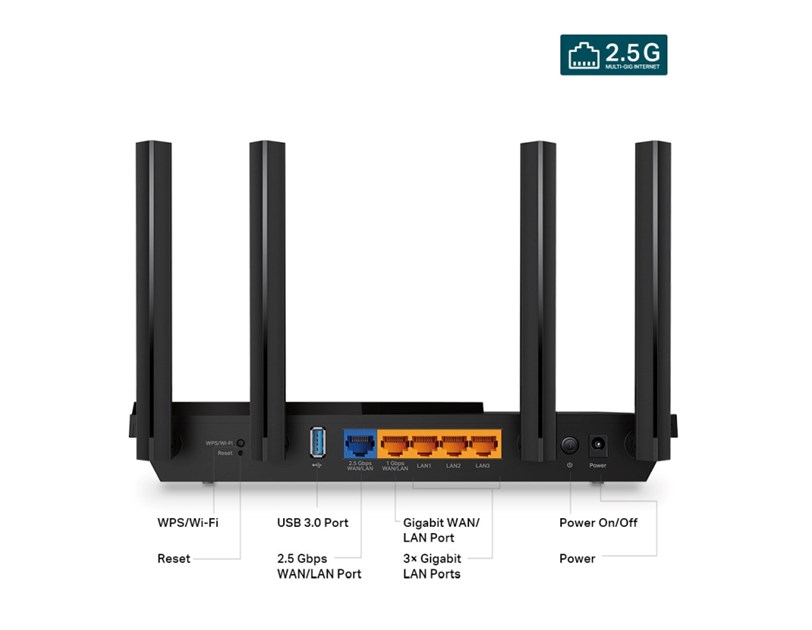

- Ethernet Ports

• 1× 2.5 Gigabit WAN/LAN Port

• 1× Gigabit WAN/LAN Port

• 3× Gigabit LAN Ports
- USB Support: 1× USB 3.0 Port
- Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
- Supported Functions:

• Apple Time Machine

• FTP Server

• Media Server

• Samba Server
- Buttons:

• Wi-Fi/WPS Button

• Power: On/Off Button

• Reset Button
- Power

• 12 V/ 2 A (US Version)

• 12 V/ 1.5 A (EU Version)

SOFTWARE
- Protocols

• IPv4

• IPv6
- Service Kits: HomeShield
- OneMesh: OneMesh Supported
- EasyMesh-Mesh networking creates smooth, fast, stable roaming. Archer AX55 Pro can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
- Parental Controls: HomeShield Parental Controls

• Custom Profiles

• Professional Content Filter Library

• Family Time

• Bedtime

• Off Time

• Time Rewards

• Family Online Time Ranking

• Pause the Internet

• Weekly and Monthly Reports
- WAN Types

• Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP
- Quality of Service: QoS by Device
- Cloud Service

• Auto Firmware Upgrade

• OTA Firmware Upgrade

• TP-Link ID

• DDNS
- NAT Forwarding

• Port Forwarding

• Port Triggering

• DMZ

• UPnP
- IPTV

• IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN
- DHCP

• Address Reservation

• DHCP Client List

• Server
- DDNS

• TP-Link

• NO-IP

• DynDNS
- Management

• Tether App

• Webpage

OTHER
- System Requirements:

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

• Cable or DSL Modem (if needed)

• Subscription with an internet service provider (for internet access)
- Certification: FCC, CE, RoHS
- Environment: Operating Temperature: 0?~40? (32? ~104?)
- Operating Humidity: 10%~90% non-condensing
TEST DATA
- WiFi Transmission Power

• CE:
<20dBm(2.4GHz)
<23dBm (5.15GHz~5.25GHz & 5.25GHz~5.35GHz)
<30dBm (5.47GHz~5.725GHz)

• FCC:
<30dBm (2.4GHz)
<30dBm(5.15GHz~5.25GHz&5.725GHz~5.850GHz)
<24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz)

- WiFi Reception Sensitivity

• 2.4 GHz:
11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm
11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm

• 5 GHz:
11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm
11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm
11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm
11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm

PHYSICAL
- Dimensions (W×D×H): 10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm)
- Package Contents

• Wi-Fi Router Archer AX55 Pro

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide
