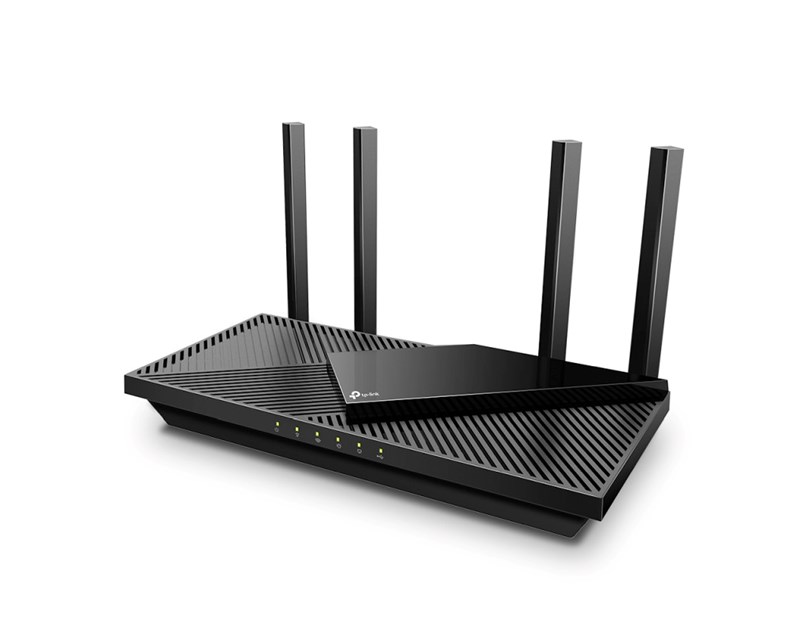

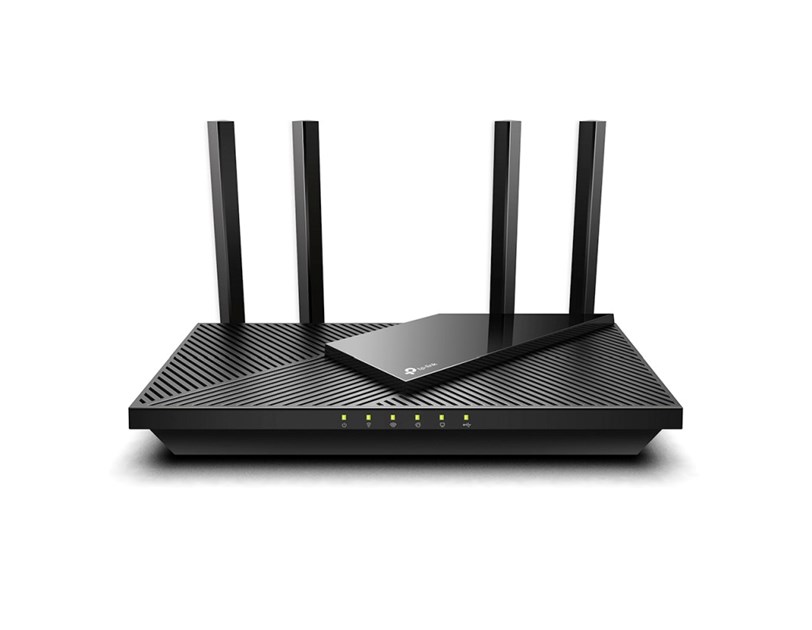

TP-Link AX3000 Archer AX55 bežični usmjerivač (Dual-Band Router Wi-Fi 6) 574Mbps/2402Mbps (2.4GHz/5GHz), 802.11ax/a/b/g/n/ac, 1×G-WAN, 4×G-LAN, USB3.0, 4×fiksne antene

Next-Gen Gigabit Wi-Fi 6 Speed
- 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.

Connect More Devices
- OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.

Ultra-Low Latency
- Enables more responsive gaming and video chatting.

Expanded Wi-Fi Coverage
- Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.

TP-Link HomeShield
- Enhanced security defends against the latest cyber threats.

Improved Battery Life
- Target Wake Time helps your devices to communicate more while consuming less power.

Compatible with Alexa
- Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Specifications
WIRELESS
- Standards: Wi-Fi 6

• IEEE 802.11ax/ac/n/a 5 GHz

• IEEE 802.11ax/n/b/g 2.4 GHz
- WiFi Speeds: AX3000

• 5 GHz: 2402 Mbps (802.11ax, HE160)

• 2.4 GHz: 574 Mbps (802.11ax)
- WiFi Range: 3 Bedroom Houses

• 4× Fixed High-Performance Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas

• Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range

• High-Power FEM: Improves transmission power to strengthen signal coverage
- WiFi Capacity: High

• Dual-Band: Allocate devices to different bands for optimal performance

• OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients

• Airtime Fairness: Improves network efficiency by limiting excessive occupation

• DFS: Access an extra band to reduce congestion

• 4 Streams: Connect your devices to more bandwidth
- Working Modes

• Router Mode

• Access Point Mode

SECURITY
- Network Security

• SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway

• HomeShield Security

• Real-Time IoT Protection

• Malicious Site Blocker

• Intrusion Prevention System

• DDoS Attack Prevention

• Home Network Scanner
- Guest Network

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network
- VPN Server

• OpenVPN

• PPTP
- VPN Client

• Open VPN Client

• PPTP VPN Client

• L2TP VPN Client
- WiFi Encryption

• WPA

• WPA2

• WPA3

• WPA/WPA2-Enterprise (802.1x)

HARDWARE
- Processor: Dual-Core CPU

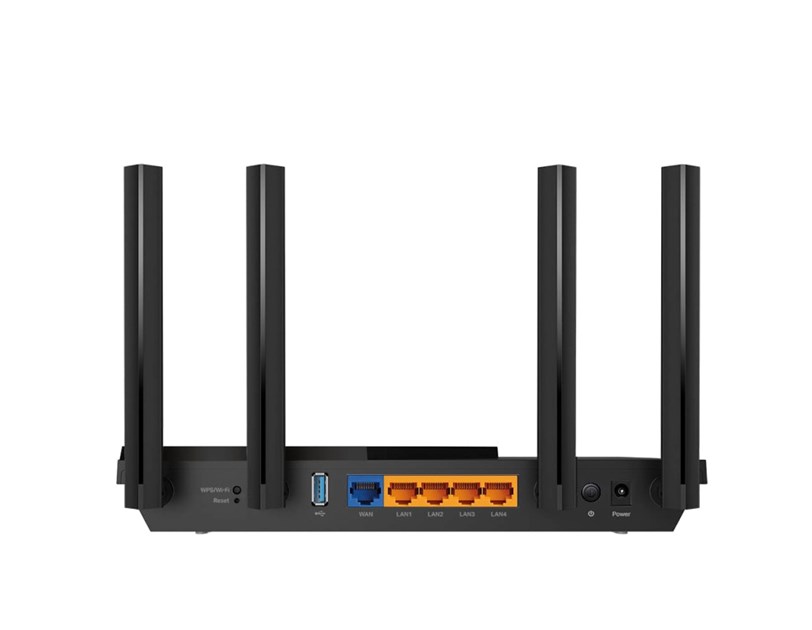

- Ethernet Ports

• 1× Gigabit WAN Port

• 4× Gigabit LAN Ports
- USB Support: 1× USB 3.0 Port

• Supported Partition Formats:: NTFS, exFAT, HFS+, FAT32

• Supported Functions:

• Apple Time Machine

• FTP Server

• Media Server

• Samba Server
- Buttons:

• Wi-Fi/WPS Button

• Power On/Off Button

• Reset Button
- Power: 12 V ? 2 A

SOFTWARE
- Protocols

• IPv4

• IPv6
- Service Kits: HomeShield
- OneMesh: OneMesh Supported - Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
- EasyMesh - Mesh networking creates smooth, fast, stable roaming. Archer AX55 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
- Parental Controls

• HomeShield Parental Controls

• Custom Profiles

• Professional Content Filter Library

• Family Time

• Bedtime

• Off Time

• Time Rewards

• Family Online Time Ranking

• Pause the Internet

• Weekly and Monthly Reports
- WAN Types

• Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP
- Quality of Service: QoS by Device
- Cloud Service:

• Auto Firmware Upgrade

• OTA Firmware Upgrade

• TP-Link ID

• DDNS
- NAT Forwarding

• Virtual Servers

• Port Forwarding

• Port Triggering

• DMZ

• UPnP
- IPTV

• IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN
- DHCP

• Address Reservation

• DHCP Client List

• Server
- DDNS

• TP-Link

• NO-IP

• DynDNS
- Management

• Tether App

• Webpage

OTHER
- System Requirements:

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

• Cable or DSL Modem (if needed)

• Subscription with an internet service provider (for internet access)
- Certifications: FCC, CE, RoHS
- Environment:

• Operating Temperature: 0?~40? (32? ~104?)

• Operating Humidity: 10%~90% non-condensing

TEST DATA
WiFi Transmission Power
CE:

• <20dBm(2.4GHz)

• <23dBm(5.15GHz~5.35GHz)

• <30dBm(5.47GHz~5.725GHz)

FCC:

• <30dBm(2.4GHz & 5.15GHz~5.825GHz)

WiFi Reception Sensitivity
5GHz:

• 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm

• 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm

• 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm

• 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm

• 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm

• 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm

• 11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm

• 11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm

2.4GHz:

• 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB

• 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB

• 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm

• 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm

PHYSICAL
- Dimensions (W×D×H): 10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm)
- Package Contents

• Wi-Fi Router Archer AX55

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide
