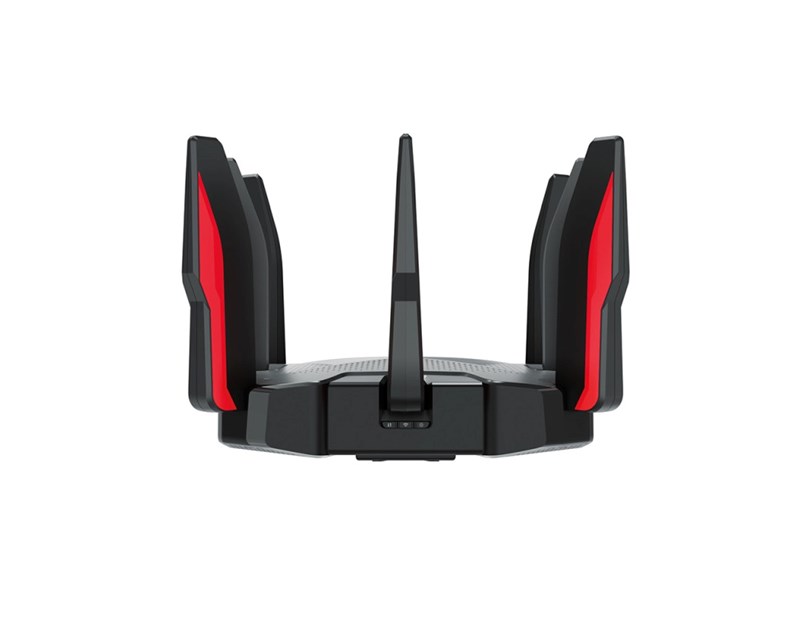

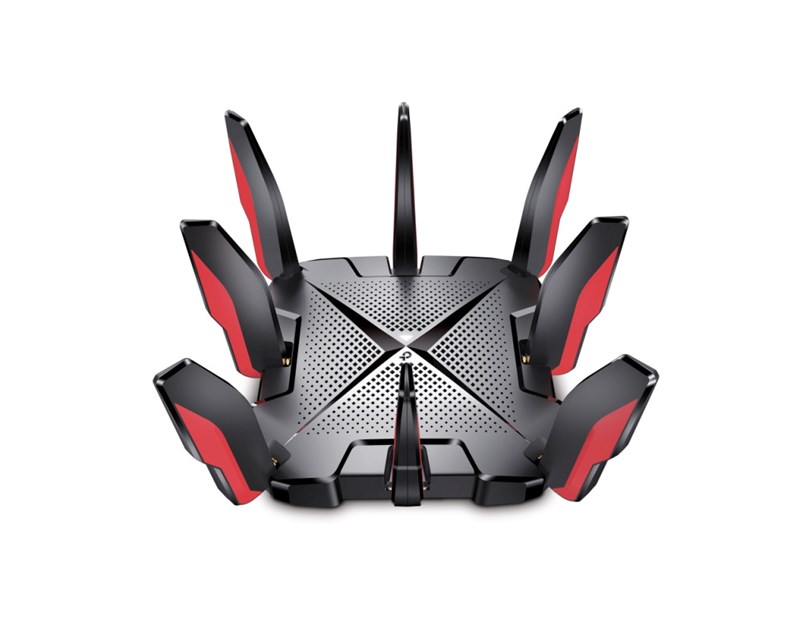

TP-Link Archer GX90 AX6600 bežični usmjerivač (Wi-Fi 6 Gaming Band, 2.5 Gbps žičana konekcija, 1.5 GHz Quad-Core CPU, Tether app, 8 x antena, Homecare sustav

FUELS YOUR WINNING WITH POWERFUL TRI-BAND
- Archer GX90 provides 3 distinct bands with combined speed up to warp 6579 Mbps. A fully featured Gaming Band is equiped with 4T4R and HE160 technology, offering all your gaming rigs at top speed 4804 Mbps and preventing interference from other devices.

LIGHTNING ATTACK TO DEFEAT LATENCY
- More connected devices mean more fun, without dragging down performance. Revolutionary OFDMA is introduced to improve average throughput by 4× and cut the latency. Take advantage of incredibly low latency to demolish your enemies, with your team crew together.

CRUSH THE LAG WIN THE GAME
- GAME ACCELERATOR automatically detects and optimizes gaming streams, to ensure your gaming stays immersive, and keep your network as fast as your reaction speed.

KNOW YOUR NETWORK
- GAME STATISTICS shows the real-time latency, game duration and system utilization at a glance in a refreshed dashboard with fine-tuned UI elements, puts total control at your fingertips.

KEEP ALL ELEMENTS SECURITY
- GAME PROTECTOR keeps your accounts and system safe. This enhanced HomeCare security system provides malicious site checker, portintrusion prevention, and infected device isolation, delivering comprehensive antivirus protection that ensures you’re total security while gaming online.

GAME ON THE FAST LANE
- GAMING BAND—a dedicated gaming band for your game rigs, makes your online games and your families' Netflix 4K streaming no more competitor.DFS expands available channel automatically, get on the more vacant lane and boost the game.,

BATTLE-TESTED HARDWARE
- Equipped with 1.5 GHz Quad-Core CPU to handle huge throughput and crush the lag. 2.5 Gbps WAN/LAN port and two USB ports provide versatile connectivity to your home network.

Specifications
WIRELESS
- Standards: Wi-Fi 6

• IEEE 802.11ax/ac/n/a 5 GHz

• IEEE 802.11ax/n/b/g 2.4 GHz

- WiFi Speeds: AX6600

• 5 GHz: 4804 Mbps (802.11ax, HE160)

• 5 GHz: 1201 Mbps (802.11ax)

• 2.4 GHz: 574 Mbps (802.11ax)

- WiFi Range: 4 Bedroom Houses

• 8× Detachable High-Performance Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas

• Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range

• High-Power FEM: Improves transmission power to strengthen signal coverage

• 4T4R: Multiple streams in the same band strengthen the fault tolerance in transmission

- WiFi Capacity: Very High

• Tri-Band: Allocate devices to different bands for optimal performance

• 4×4 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients

• OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients

• Airtime Fairness: Improves network efficiency by limiting excessive occupation

• DFS: Access an extra band to reduce congestion

• 8 Streams: Connect your devices to more bandwidth

- Working Modes

• Router Mode

• Access Point Mode


SECURITY
- Network Security:

• SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway
- HomeCare Antivirus

• Malicious Site Checker

• Port Intrusion Prevention

• Infected Device Isolation

• Notification and Log

- Guest Network

• 2× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

- VPN Server

• OpenVPN

• PPTP

- VPN Client

• Open VPN Client

• PPTP VPN Client

• L2TP VPN Client

- WiFi Encryption

• WPA

• WPA2

• WPA3

• WPA/WPA2-Enterprise (802.1x)


HARDWARE
- Processor: 1.5 GHz Quad-Core CPU

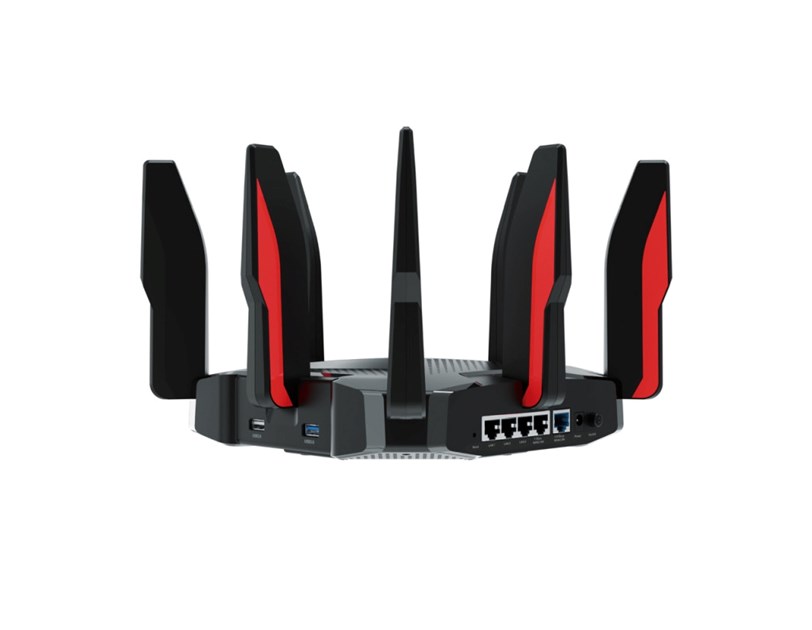

- Ethernet Ports

• 1× 2.5 Gbps WAN/LAN Port

• 1× Gigabit WAN/LAN Port

• 3× Gigabit LAN Ports
- USB Support

• 1× USB 3.0 Port

• 1× USB 2.0 Port

• Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
- Supported Functions:

• Apple Time Machine

• FTP Server

• Media Server

• Samba Server

- Buttons

• Wi-Fi On/Off Button

• Power On/Off Button

• LED On/Off Button

• WPS Button

• Reset Button

- Power: 12 V 5 A

SOFTWARE
- Protocols

• IPv4

• IPv6

- Game Center

• Game Accelerator: Detects and optimizes gaming streams to keep latency as low as possible

• Game Statistics: Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail

• Game Protector: Keep your accounts and system safe with HomeCare™ antivirus protection

- Service Kits: HomeCare

- OneMesh

• OneMesh Supported: Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

- Parental Controls

• HomeCare Parental Controls

• Custom Profiles

• Content Filtering

• App Block

• URL Filtering

• Time Limit

• Time Schedule (Bedtime)

• Log Insight

- WAN Types

• Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP

- Quality of Service

• Game Accelerator QoS.

• QoS by Device

• HomeCare QoS

• QoS by Application

- Cloud Service

• Auto Firmware Upgrade

• OTA Firmware Upgrade

• TP-Link ID

• DDNS

- NAT Forwarding

• Port Forwarding

• Port Triggering

• DMZ

• UPnP

- IPTV

• IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN

- DHCP

• Address Reservation

• DHCP Client List

• Server

- DDNS

• TP-Link

• NO-IP

• DynDNS

- Management

• Tether App

• Webpage


OTHER
- System Requirements:

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

• Cable or DSL Modem (if needed)

• Subscription with an internet service provider (for internet access)

- Certifications:

• FCC, CE, RoHS

- Environment

• Operating Temperature: 0?~40? (32? ~104?)

• Storage Temperature: -40?~70? (-40? ~158?)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing


TEST DATA
- WiFi Transmission Power

• CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)


• FCC:
<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)

- WiFi Reception Sensitivity

• 5 GHz-1:
11a 6Mbps:-93dBm, 11a 54Mbps:-76dBm
11ac VHT20 MCS0:-92dBm, 11ac VHT20 MCS8:-69dBm
11ac VHT40 MCS0:-90dBm, 11ac VHT40 MCS9:-65dBm
11ac VHT80 MCS0:-87dBm, 11ac VHT80 MCS9:-62dBm
11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-56dBm


• 5 GHz-2 (Gaming Band):
11a 6Mbps:-96dBm, 11a 54Mbps:-77dBm
11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS11:-64dBm
11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS11:-62dBm
11ac VHT80 MCS0:-90dBm, 11ac VHT80 MCS11:-59dBm
11ac VHT160 MCS0:-84dBm, 11ac VHT160 MCS11:-53dBm
11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-84dBm,11ax HE160 MCS11:-54dBm


• 2.4 GHz:
11g 6Mbps:-96dBm, 11g 54Mbps:-77dBm
11n HT20 MCS0:-95dBm, 11n HT20 MCS7:-76dBm
11n HT40 MCS0:-93dBm, 11n HT40 MCS7:-73dBm
11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS8:-73dBm
11ac VHT40 MCS0:-92dBm, 11ac VHT40 MCS9:-68dBm
11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-62dBm

PHYSICAL
- Dimensions (W×D×H): 8.3 × 8.3 × 2.0 in (212 × 212 × 51.8 mm)

- Package Contents

• Wi-Fi Router Archer GX90

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide
