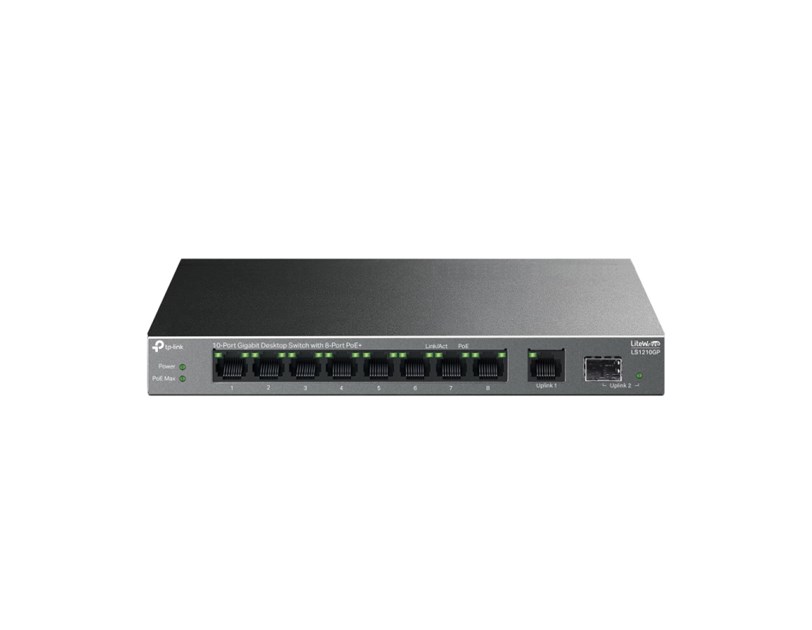

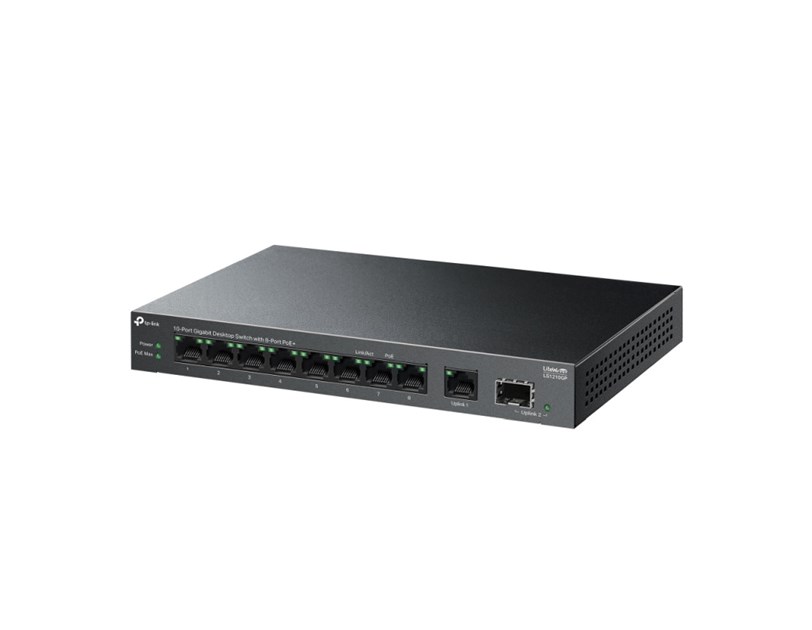

TP-Link 9-port LS1210GP desktop preklopnik, 61W PoE, 9×10/100/1000 Mbps RJ45 ports (1-8 port PoE+) 1× Gigabit SFP Port, do 250m PoE prijenos, Plug&play, metalno kućište

Full Gigabit Ports:
- 9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity.

61 W PoE Budget:
- Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

Up to 250 m PoE Transmission:
- With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**

PoE Auto Recovery:
- Automatically reboots your dropped or unresponsive PoE-powered devices.

Traffic Separation for Higher Security:
- Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.

Plug and Play:
- Simply plug and play for instant connectivity with no configuration required.

Silent Operation:
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

Reliable Hardware Design:
- Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Specifications
HARDWARE FEATURES
- Interface

• 9× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 supports PoE+ output)

• 1× Gigabit SFP Port
- Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)
- Fan Quantity: Fanless
- Installation

• Desktop

• Wall Mounting
- Physical Security Lock: Yes
- Power Supply: External Power Adapter(Output: 53.5VDC / 1.31A)
- PoE+ Ports(RJ45)

• Standard: 802.3at/802.3af compliant

• PoE Ports: Ports 1–8, up to 30 W PoE output per port

• PoE Power Budget: 61W
- Dimensions ( W x D x H ): 8.2×4.9×1.0 in (209×126×26 mm)
- Max Power Consumption

• 7.3 W (220/50Hz. no PD connected)

• 76.96 W (220/50Hz. with 61 W PD connected)
- Max Heat Dissipation

• 24.82 BTU/h (no PD connected)

• 261.66 BTU/h (with 61 W PD connected)

PERFORMANCE
- Switching Capacity: 20 Gbps
- Packet Forwarding Rate: 14.88 Mpps
- MAC Address Table: 4K
- Jumbo Frame: 16 KB

SOFTWARE FEATURES
- Advanced Features

• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)

• Isolation Mode Button (Ports 1–8)

• PoE Auto Recovery Button (Ports 1–8)

• Compatible With IEEE 802.3af/at Compliant PDs

• IEEE802.3x Flow Control

• 802.1p/DSCP QoS

• IGMP Snooping

• Green Technology
- Transmission Method: Store-And-Forward

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents

• LS1210GP

• Power Adapter

• Installation Guide
- Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Storage Temperature: -40°C~70°C (-40°F~158°F)

• Operating Humidity: 10% ~ 90% non-condensing

• Storage Humidity: 5%~90% non-condensing
