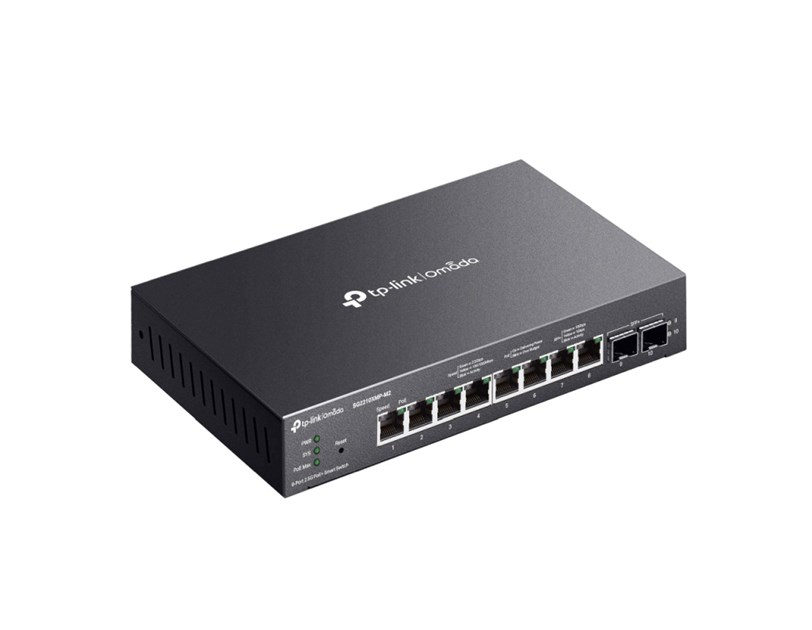

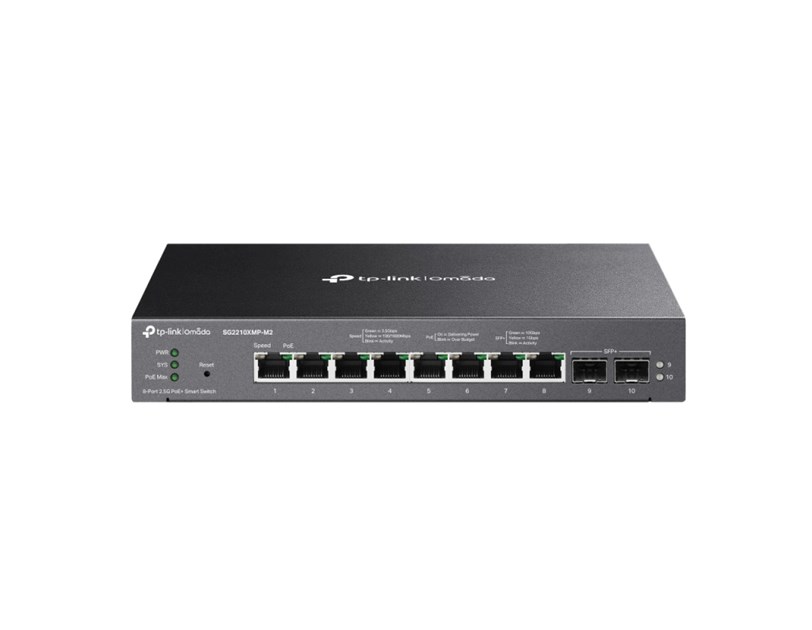

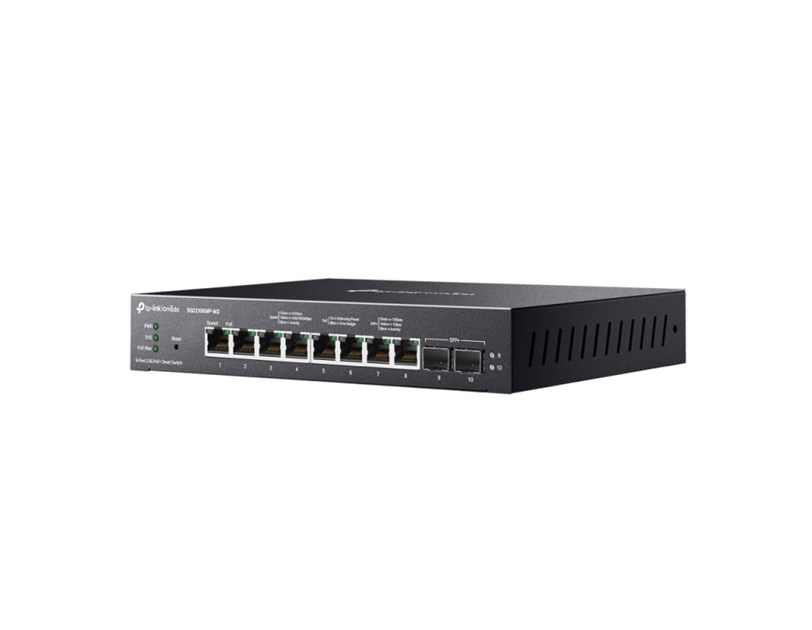

TP-Link 8-Port Omada Smart preklopnik (Switch) 8-Port PoE+, 2-Port 10GE SFP+, metalno kućište

Features
- 8× 2.5 Gbps 802.3at/af-compliant PoE+ ports
- 2× 10G SFP+ Slots
- 160 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via web or the Omada app†
- Supports standalone management
- Static Routing
- Fanless design for quiet operation
- Desktop/Wall-Mounting

Specifications
HARDWARE FEATURES
- Interface

• 8× 100/1000/2500 Mbps RJ45 PoE+ Ports

• 2× 10G SFP+ Slots
- Fan Quantity: Fanless
- Physical Security Lock: Yes

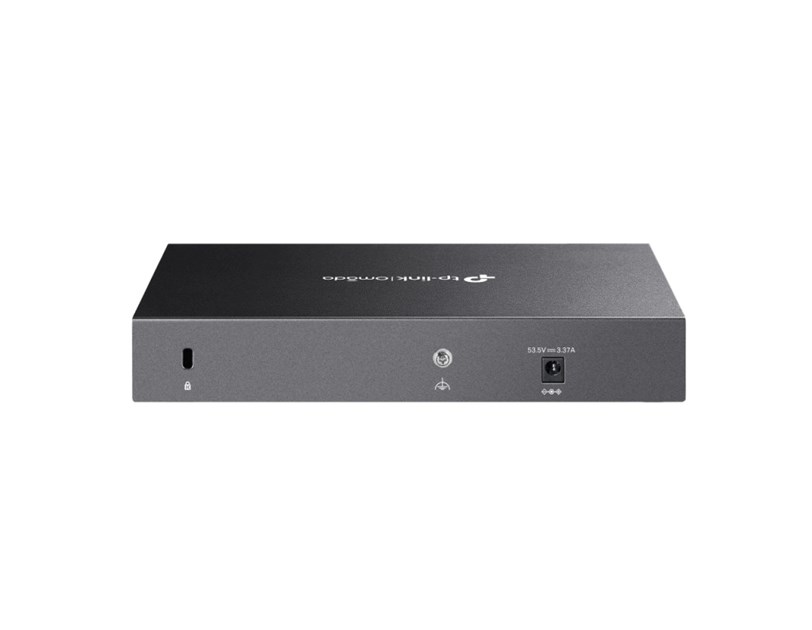

- Power Supply: 53.5VDC/3.37A Power Adapter
- PoE Ports (RJ45)

• Standard: 802.3at/af compliant

• PoE+ Ports: 8 Ports

• PoE Power Budget: 160 W*
- Dimensions ( W x D x H ): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

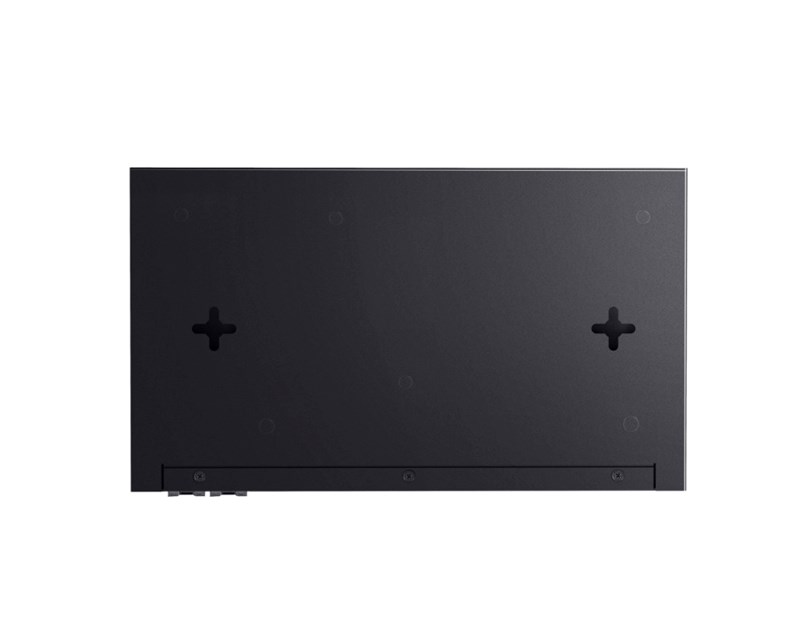

- Mounting: Desktop/Wall-Mounting
- Max Power Consumption: 180.1 W (110V/60Hz) (with 160 W PD connected)
- Max Heat Dissipation: 614.58 BTU/hr (110V/60Hz) (with 160 W PD connected)

PERFORMANCE
- Switching Capacity: 80 Gbps
- Packet Forwarding Rate: 59.52 Mpps
- MAC Address Table: 16 K
- Packet Buffer Memory: 12 Mbit
- Jumbo Frame: 9 KB

SOFTWARE FEATURES
- Quality of Service

• 802.1p CoS/DSCP priority

• 8 priority queues

• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control
- Port/Flow based Rating Limit

• Smoother Performance

• Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
- L2 and L2+ Features

• 32 IP Interfaces: Support IPv4/IPv6 Interface

• Static Routing: 32 IPv4/IPv6 Static Routes

• DHCP Server

• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay

• DHCP L2 Relay

• Static ARP

• Proxy ARP

• Gratuitous ARP

• Link Aggregation

• Spanning Tree Protocol

• Loopback Detection

• 802.3x Flow Control

• Mirroring

• Device Link Detect Protocol (DLDP)

• 802.1ab LLDP/ LLDP-MED
- L2 Multicast

• 511 IPv4, IPv6 shared multicast groups

• IGMP Snooping

• Multicast VLAN Registration (MVR)

• Multicast Filtering

• Limited IP Multicast (256 profiles and 16 entries per profile)

Advanced Features

• Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

VLAN

• VLAN Group
- Max 4K VLAN Groups

• 802.1Q Tagged VLAN

• MAC VLAN: 12 Entries

• Protocol VLAN

• GVRP

• Voice VLAN

Access Control List

• Support up to 230 entries

• Time-based ACL

• MAC ACL

• IP ACL

• IPv6 ACL

• Combined ACL

• Rule Operation: Permit/Deny

• Policy Action
- Mirroring
- Redirect
- Rate Limit
- QoS Remark

• ACL Rules Binding
- Port Binding
- VLAN Binding

Security

• IP-MAC-Port Binding

• AAA

• 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability

• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- ND Snooping

• IP Source Guard
- 253 Entries
- Source IP+Source MAC

• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC

• DoS Defend

• DHCP Filter

• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

• IP/Port/MAC based access control

IPv6

• IPv6 Static Routing and ACL

• IPv6 Dual IPv4/IPv6

• IPv6 Interface

• Multicast Listener Discovery (MLD) Snooping

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP

MIBs

• MIB II (RFC1213)

• Interface MIB (RFC2233)

• Ethernet Interface MIB (RFC1643)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• RMON MIB (RFC2819)

• RMON2 MIB (RFC2021)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIB

MANAGEMENT
- Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller
- Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
- Management Features

• Web-based GUI

• Command Line Interface (CLI) through telnet

• SNMPv1/v2c/v3

• SNMP Trap/Inform

• RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• SNTP

• System Log

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents

• SG2210XHP-M2 Switch

• Power Adapter

• Quick Installation Guide

• Rubber Feet
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
- Environment

• Operating Temperature: 0–40 ? (32–104 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
