TP-Link 6-Port Omada JetStream Managed preklopnik (Switch) 10GE L2+, 4×10GB RJ45 portEs, 4xPoe++, 2×10G SFP+, 1× RJ45 Console Port, 1× Micro-USB Console Port, metalno kućište

Full 10G Lightning-Fast Connection:
- Offers high-bandwidth connectivity with lightning-fast 4× 10 Gbps RJ45 ports and 2× 10 Gbps SFP+ slots.

PoE++ Output with 200 W Power Budget:
- Four 802.3af/at/bt PoE++ 10G ports with up to 60 W PoE output on each port make it ideal for the deployment of Omada WiFi 6 and WiFi 6E APs.‡

Abundant L2 and L2+ Features:
- Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.

Robust Security Strategies:
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Static Routing:
- Helps route internal traffic for more efficient use of network resources.

Centralized Cloud Management:
- Integrates into Omada SDN for cloud access and remote management.

Standalone Management:
- Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Specifications
HARDWARE FEATURES

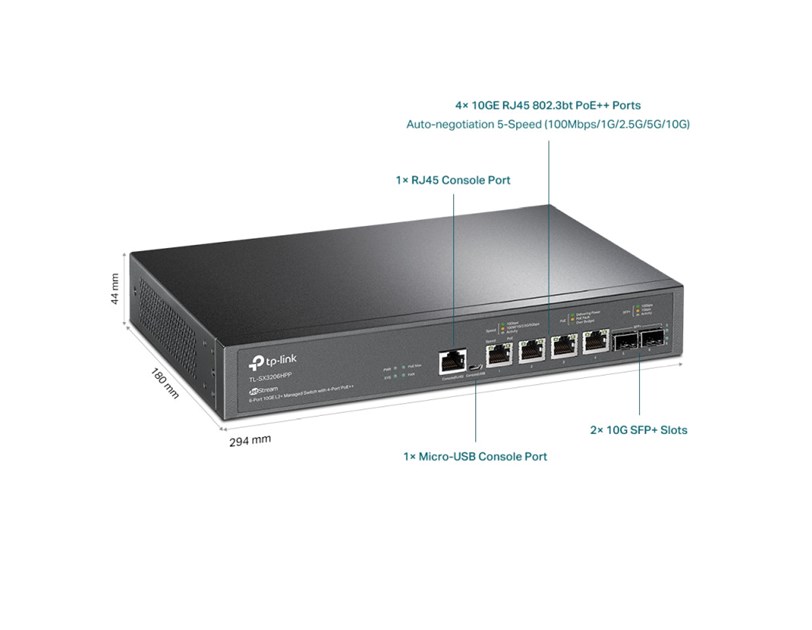

- Interface

• 4× 100/1000/2500/5000/10000 Mbps RJ45 Ports

• 2× 10G SFP+ Slots

• 1× RJ45 Console Port

• 1× Micro-USB Console Port
- Fan Quantity: 2
- Power Supply: 100-240 V AC~50/60 Hz
- PoE Ports (RJ45)

• Standard: 802.3bt/at/af compliant

• PoE+ Ports: 4 Ports, up to 60 W per port

• Power Budget: 200 W
- Dimensions ( W x D x H ): 11.6 × 7.1 × 1.7 in (294× 180 × 44 mm)
- Mounting

• Rack Mountable

• Desktop
- Max Power Consumption

• 27.29 W (110V/60Hz) (no PD connected)

• 244.90 W (110V/60Hz) (with 200 W PD connected)
- Max Heat Dissipation

• 93.12 BTU/h (110 V/60 Hz) (no PD connected)

• 835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected)

PERFORMANCE
- Switching Capacity: 120 Gbps
- Packet Forwarding Rate: 89.28 Mpps
- MAC Address Table: 32 K
- Ju mbo Frame: 9 KB

SOFTWARE FEATURES
- Quality of Service

• 8 priority queues

• 802.1p CoS/DSCP priority

• Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR

• Bandwidth Control
- Port/Flow based Rating Limiting

• Smoother Performance

• Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
- L3 Features

• 16 IPv4/IPv6 Interfaces

• Static Routing
- 48 static routes

• Static ARP
- 128 Static Entries

• Proxy ARP

• Gratuitous ARP

• DHCP Server

• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay

• DHCP L2 Relay
- L2 and L2+ Features

• Link Aggregation
- static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups, containing 8 ports per group

• Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, Root Protect

• Loopback Detection
- Port based
- VLAN based

• Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention

• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
- L2 Multicast

• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication

• IGMP Authentication

• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast

• MVR

• Multicast Filtering: 256 profiles and 16 entries per profile
- Advanced Features

• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller

• Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• ZTP (Zero-Touch Provisioning)*
- VLAN

• VLAN Group
- Max 4K VLAN Groups

• 802.1Q Tagged VLAN

• MAC VLAN: 10 Entries

• Protocol VLAN: Protocol Template 16, Protocol VLAN 16

• Private VLAN

• GVRP

• VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ

• Voice VLAN
- Access Control List

• Time-based ACL

• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type

• IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority

• Combined ACL

• Packet Content ACL

• IPv6 ACL

• Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark

• ACL apply to Port/VLAN
- Security

• IP-MAC-Port Binding
- 512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard: 100 Entries

• IPv6-MAC-Port Binding
- 512 Entries
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard: 100 Entries

• DoS Defend

• Static/Dynamic Port Security
- Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode

• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication andaccountability

• AAA (including TACACS+)

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

• IP/Port/MAC based access control
- IPv6

• IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 ACL

• IPv6 Interface

• Static IPv6 Routing

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
- Management

• Web-based GUI

• Command Line Interface (CLI) through the console port, telnet

• SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• DHCP AutoInstall

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log
- MIBs

• MIB II (RFC1213)

• Interface MIB (RFC2233)

• Ethernet Interface MIB (RFC1643)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• RMON MIB (RFC2819)

• RMON2 MIB (RFC2021)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIB

MANAGEMENT
- Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller
- Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
- Management Features

• Web-based GUI

• Command Line Interface (CLI) through the console port, telnet

• SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• DHCP AutoInstall

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents

•TL-SX3206HPP Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet
- System Requirements. Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
- Environment

• Operating Temperature: 0–50 C (32–122 C);

• Storage Temperature: -40–70 C (-40–158 C)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
