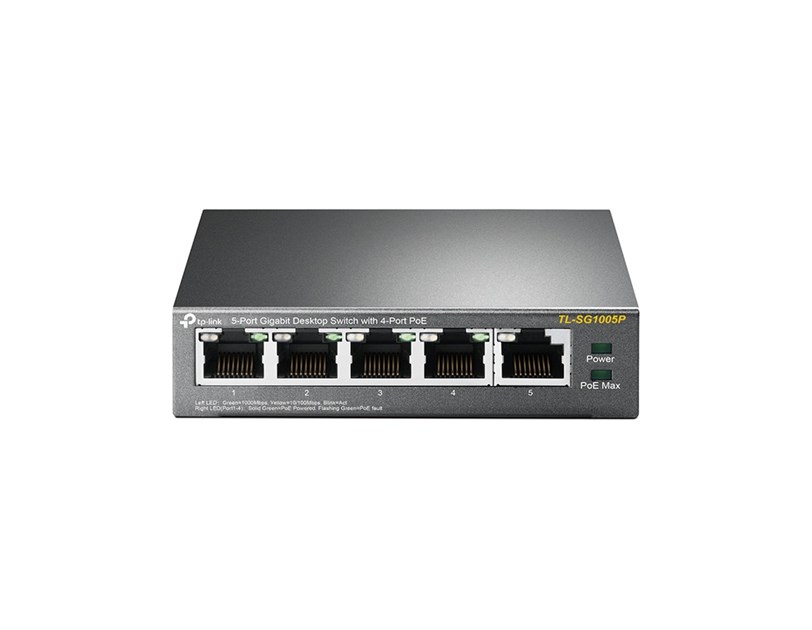

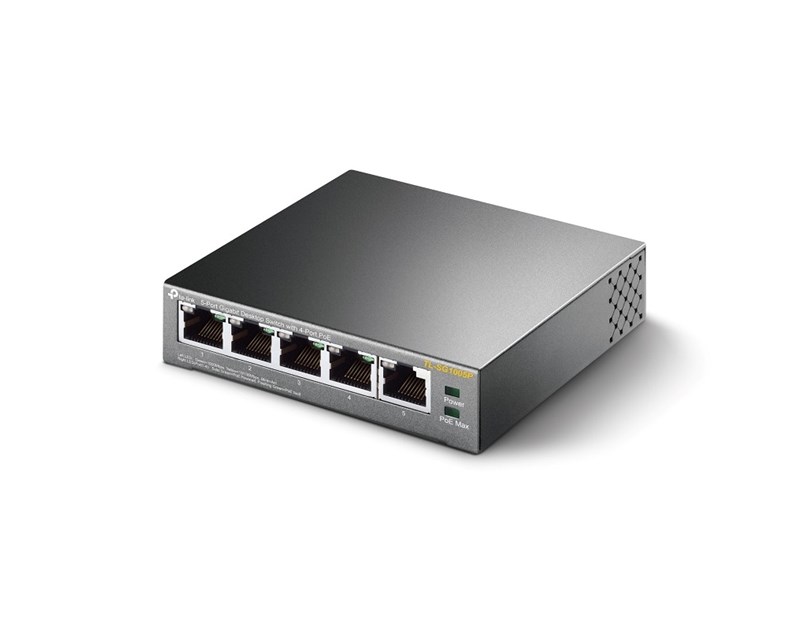

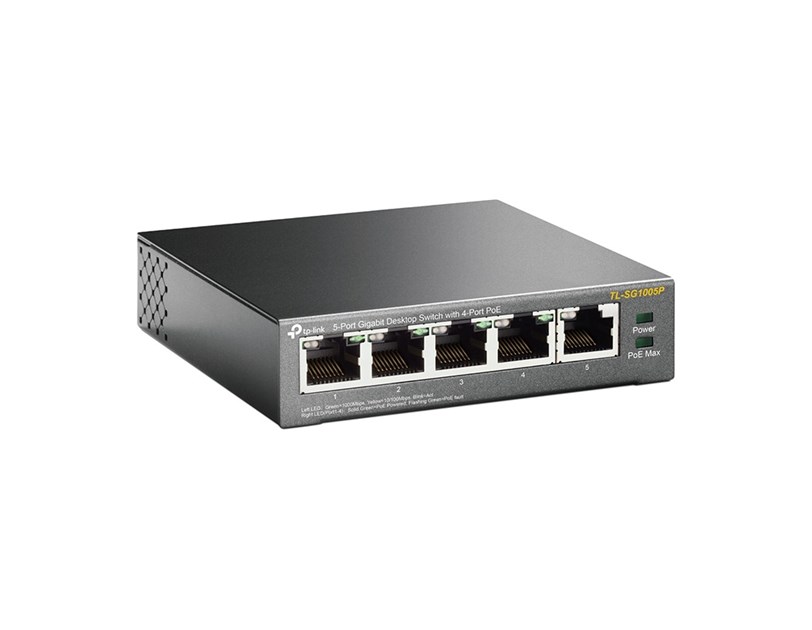

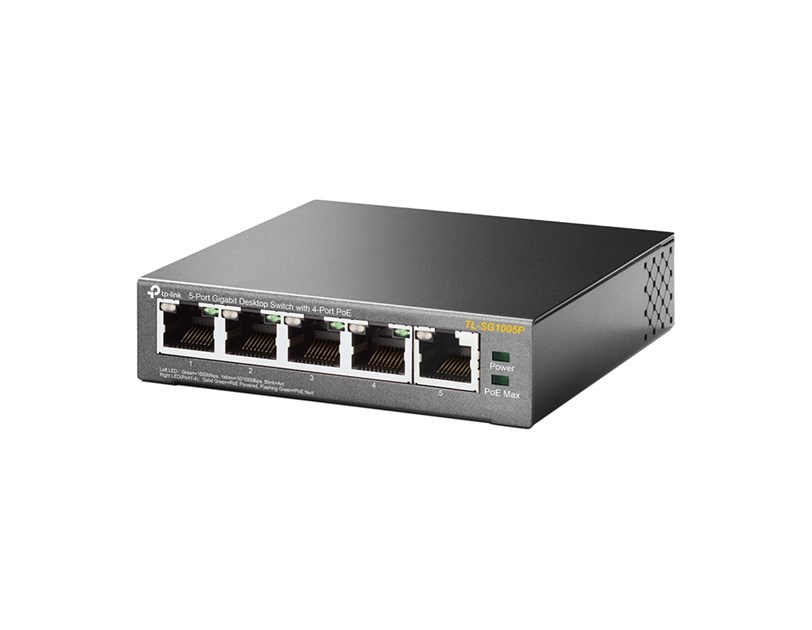

TP-Link 5-port Gigabit PoE+ preklopnik (Switch) 5×10/100/1000M RJ45 ports, 1×PoE++ In, 4xPoE+ Out ports, metalno kućište

Ports:
- 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports

1-Port Gigabit PoE++ In and 4-Port PoE+ Out:
- Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*

Long-Range PoE+:
- With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.

PoE Auto Recovery:
- It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

Metal Casing:
- Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Silent Operation:
- Industry-leading fanless design ensures silent operation, ideal for any home or business.

Plug and Play:
- No configuration and installation required.

Power Supply:
- The product only supports PoE power supply, not AC or DC power supply.

Specifications
HARDWARE FEATURES
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p
- Interface

• 5× 10/100/1000Mbps RJ45 Ports

• 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)

• 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)

• AUTO Negotiation

• AUTO MDI/MDIX
- Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: Only Powered by PoE Device
- PoE Ports (RJ45)

• PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4

• PoE Out Ports: Ports 1-4, compliance with 802.3af/at

• PoE Power Budget:
- 66 W when powered by 802.3bt Type 4 (90 W)
- 47 W when powered by 802.3bt Type 3 (60 W)
- 21 W when powered by 802.3at (30 W)
- 9 W when powered by 802.3af (15.4 W)
- Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
- Max Power Consumption

• 2.68 W (90W PoE In, with no PD connected)

• 68.59 W (90W PoE In, with 66 W PD connected)
- Max Heat Dissipation

• 9.112 BTU/h (90W PoE In, with no PD connected)

• 233.206 BTU/h (90W PoE In, with 66 W PD connected)

PERFORMANCE
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- MAC Address Table: 2k

SOFTWARE FEATURES
- Advanced Features

• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)

• PoE Auto Recovery (Ports 1-4)

• Mac Address Auto-Learning and Auto-Aging

• IEEE 802.3x Flow Control

• 802.1p/DSCP QoS

• IGMP Snooping
- Transfer Method: Store-And-Forward

OTHERS
- Certification: CE, FCC, RoHS

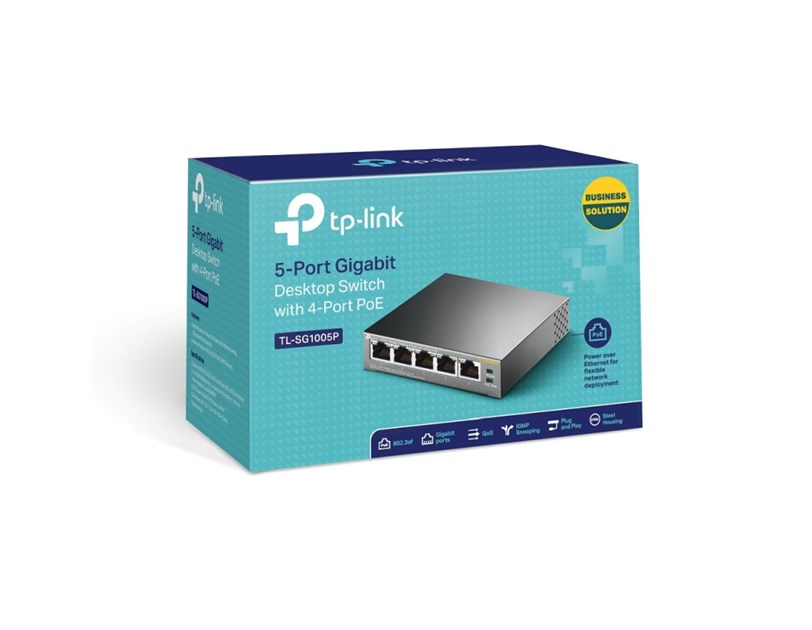

- Package Contents

• TL-SG1005P-PD

• Installation Guide
- Environment

• Operating Temperature: -30–70 ? (-22–158 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
