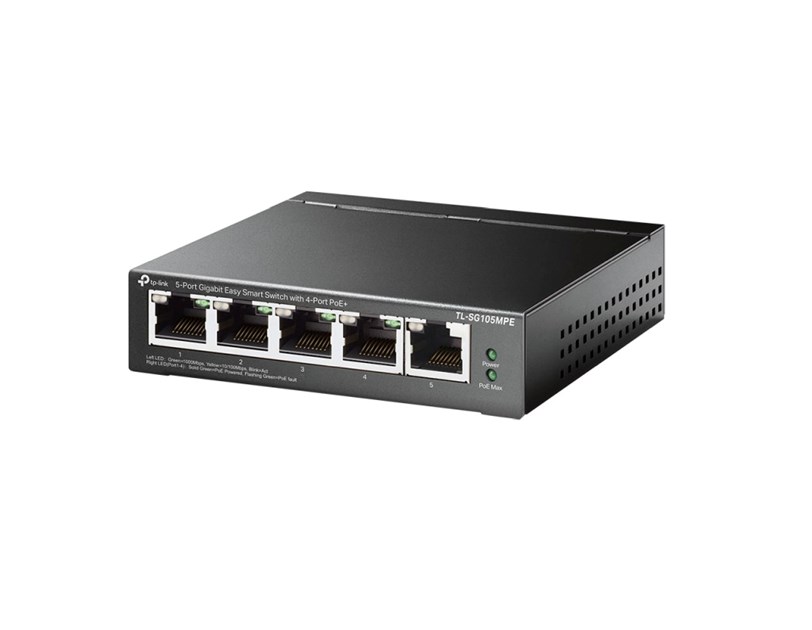

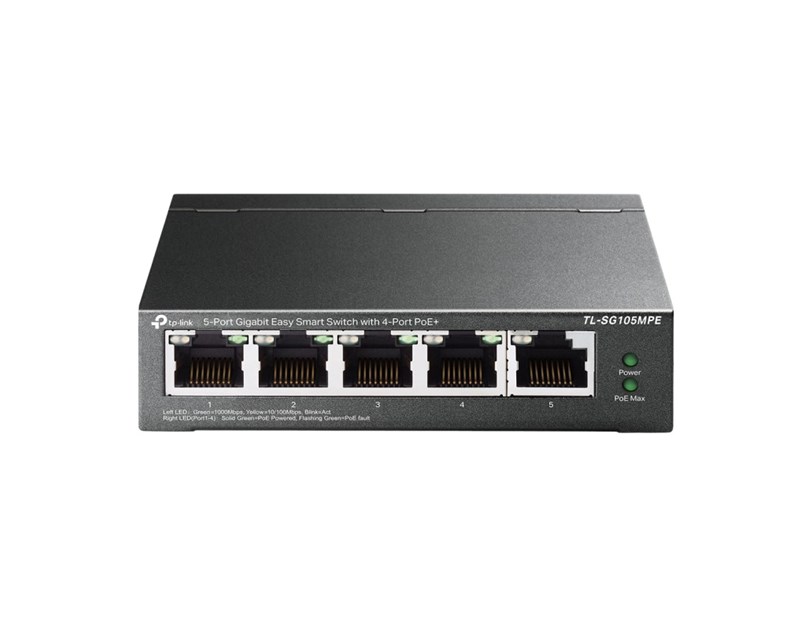

TP-Link 5-port Gigabit Easy Smart preklopnik (Switch), 5x10/100/1000 RJ45 - 4x PoE+, fanless, metalno kučište

- Five 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 120 W for all PoE ports*
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise

Specifications
HARDWARE FEATURES
- Standards and Protocols

• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,

• IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
- Interface

• Five 10/100/1000Mbps RJ45 Ports

• AUTO Negotiation/AUTO MDI/MDIX
- Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
- PoE Ports (RJ45)

• Standard: 802.3 af/at compliant

• PoE Ports: Port 1- Port 4

• PoE Power Budget: 120 W
- Dimensions ( W x D x H ): 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
- Max Power Consumption:

• 4.34 W (220 V/50 Hz with no PD connected)

• 137.01 W (110 V/50 Hz with 120 W PD connected)
- Max Heat Dissipation

• 14.8 BTU/h (with no PD connected)

• 467.17 BTU/h (with 120 W PD connected)

PERFORMANCE
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- MAC Address Table: 2 K
- Packet Buffer Memory: 1 Mb
- Jumbo Frame: 16 KB

SOFTWARE FEATURES
- Quality of Service

• Support Port-Based/802.1p/DSCP priority

• Support 4 priority queues

• Rate Limit

• Storm Control
- L2 Features

• IGMP Snooping V1/V2/V3

• Static Link Aggregation

• Port Mirroring

• Cable Diagnostics

• Loop Prevention

• PoE Auto Recovery

• Extend Mode
- VLAN

• Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

• MTU/Port/Tag VLAN
- Management

• Web-based GUI

• Easy Smart Configuration Utility
- Transmission Method: Store-And-Forward

OTHERS
- Certification: FCC, CE, RoHS

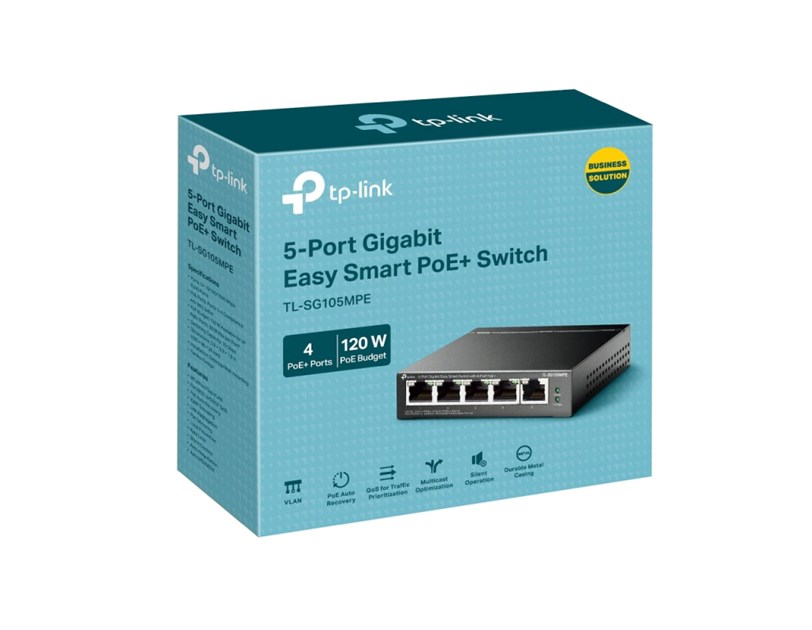

- Package Contents

• TL-SG105MPE

• Power Adapter

• Installation Guide

• Rubber Feet
- System Requirements: Microsoft Windows for running Utility
- Environment: Operating Temperature: 0?~40? (32?~104?)
- Storage Temperature: -40?~70? (-40?~158?)
- Operating Humidity: 10%~90%RH non-condensing
- Storage Humidity: 5%~95%RH non-condensing
