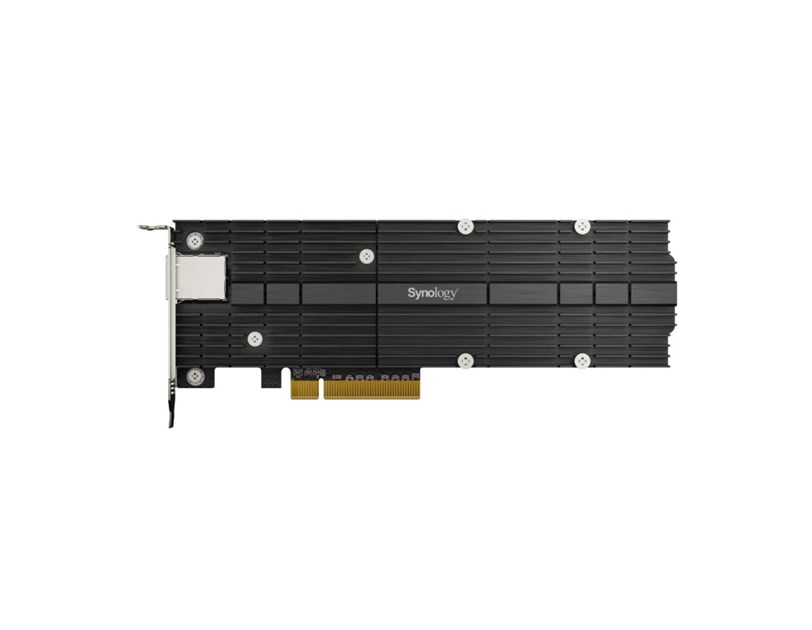

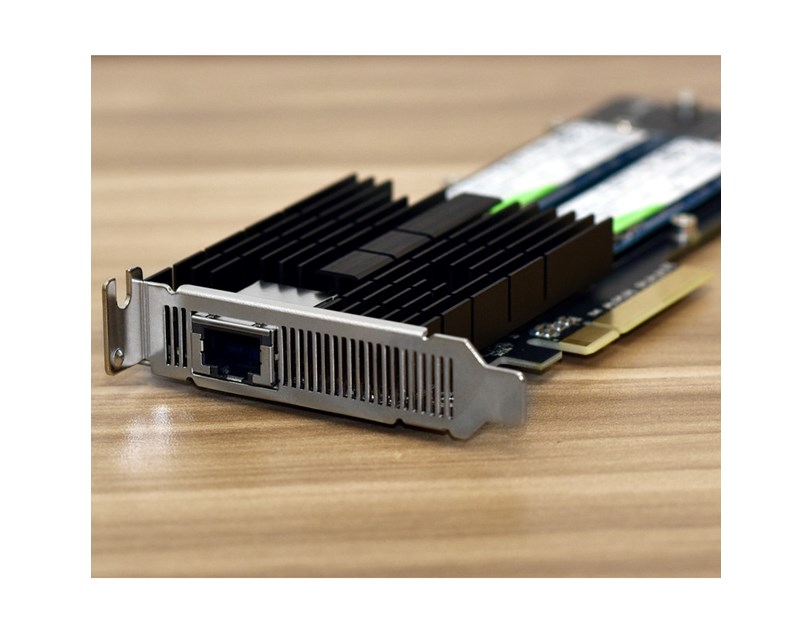

Synology E10M20-T1, M.2 SSD + 10GbE combo adapter

E10M20-T1
- M.2 SSD & 10GbE combo adapter card for performance acceleration

10GbE bandwidth and M.2 SSD cache, all at once
- Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.

10GbE ready
- Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps.

NVMe enabled
- Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.

Dedicated cache slots
- Free up primary drive bays for data storage.

A perfect match with Synology SNV3000 series NVMe SSD
- Install Synology SNV3000 series NVMe SSD on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD’s enterprise-grade endurance, performance, and reliability with your Synology NAS.

Specifications
Hardware Specifications
General
- Host Bus Interface: PCIe 3.0 x8
- Bracket Height: Low Profile and Full Height
- Size (Height x Width x Depth): 71.75 mm x 200.05 mm x 17.70 mm
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 60°C (-5°F to 140°F)
- Relative Humidity: 5% to 95% RH
- Warranty: 5 Years
* Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Storage
- Storage Interface: PCIe NVMe
- Supported Form Factor: 22110 / 2280
- Connector Type and Quantity: M-key, 2 Slots

Network
IEEE Specification Compliance
* IEEE 802.3x Flow Control
* IEEE 802.3u Fast Ethernet
* IEEE 802.3ab Gigabit Ethernet
* IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
* IEEE 802.3an 10Gbps Ethernet

Data Transfer Rates: 10 Gbps
Network Operation Mode: Full Duplex
Supported Features
* 9 KB Jumbo Frame
* TCP/UDP/IP Checksum Offloading
* Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
* TCP Segmentation Offload (TSO)
* Large Send Offload (LSO)
* Receive Side Scaling (RSS)
* Generic Receive Offload (GRO)
* Generic Segmentation Offload (GSO)

Compatibility
Applied Models
- NVMe SSD
SA series: SA6400, SA3610, SA3600, SA3410, SA3400
23 series: RS2423RP+, RS2423+
22 series: RS822RP+, RS822+, DS3622xs+, DS2422+
21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+
20 series: RS820RP+, RS820+
19 series: DS2419+II, DS2419+, DS1819+
18 series: RS3618xs, RS2818RP+, DS3018xs, DS1618+
17 series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII
Notes
* DSM version requirement: 6.2.3-25426 or later version
* DSM version requirement for RS18017xs+, RS4017xs+, RS3618xs, RS3617xs+, RS3617RPxs, DS3617xs and DS3617xsII: 7.0.1 or later version
