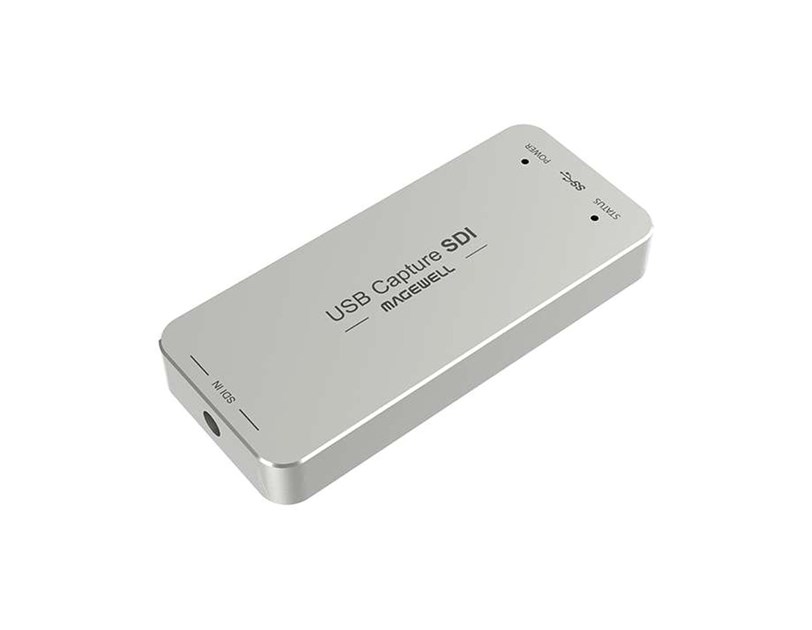

Magewell USB Capture SDI Gen 2, USB2.0/3.0 DONGLE, 1-channel HD/3G/2K SDI, Plug and Play, Windows/Linux/Mac (32070)

SUPPORTED OS
- Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
- Linux (support x86, x64 & ARM architecture)
* Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
* CentOS 6.5/7 (x86 & x64)
* Fedora 25/26/27 (x86 & x64)
* Red hat 6.5 and above (x86 & x64)
* Other Linux OS with kernel version 2.6.35 and above
- Mac:
* OS X 10.9/10.10/10.11
* macOS 10.12/10.13
- Chrome OS

RECOMMENDED OS (TESTED)
- Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
- Linux:
* Ubuntu 12.04/14.04/16.04 (x86 & x64)
* Ubuntu 17.04/17.10 (x64)
* CentOS 6.5/7.2 (x86 & x64)
* Fedora 25/26 (x64)
* Red hat 6.5 (x86 & x64)
- Mac:
* OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
* macOS 10.12/10.13.2/10.13.3

SUPPORTED APIs
- Windows:
* DirectShow
* Wave API/DirectSound/WASAPI
- Linux:
* V4L2
* ALSA
- OS X/macOS:
* QuickTime
* AV Foundation

SUPPORTED SOFTWARE
- VLC
- VirtualDub
- OBS
- XSplit
- vMix
- VidBlaster
- Wirecast
- Microsoft Media Encoder
- Adobe Flash Media Encoder
- Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software

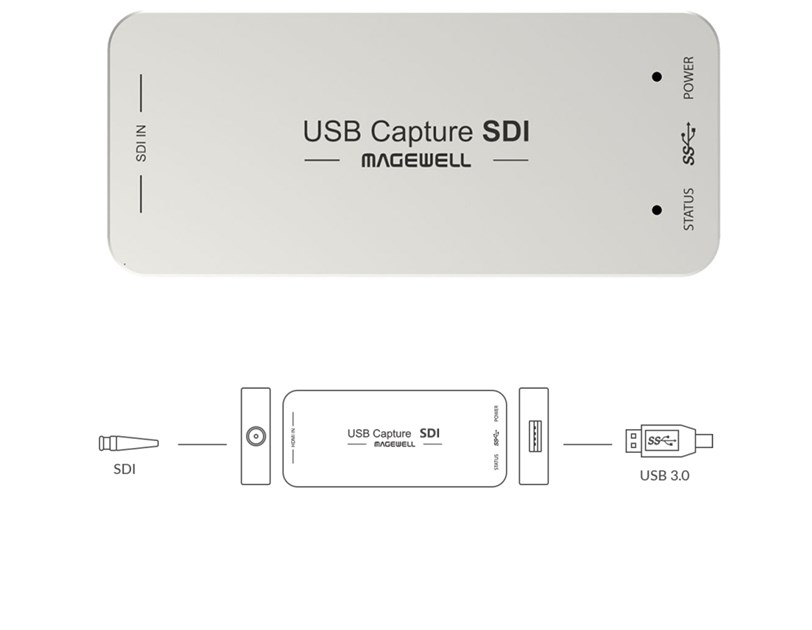

INPUT INTERFACES

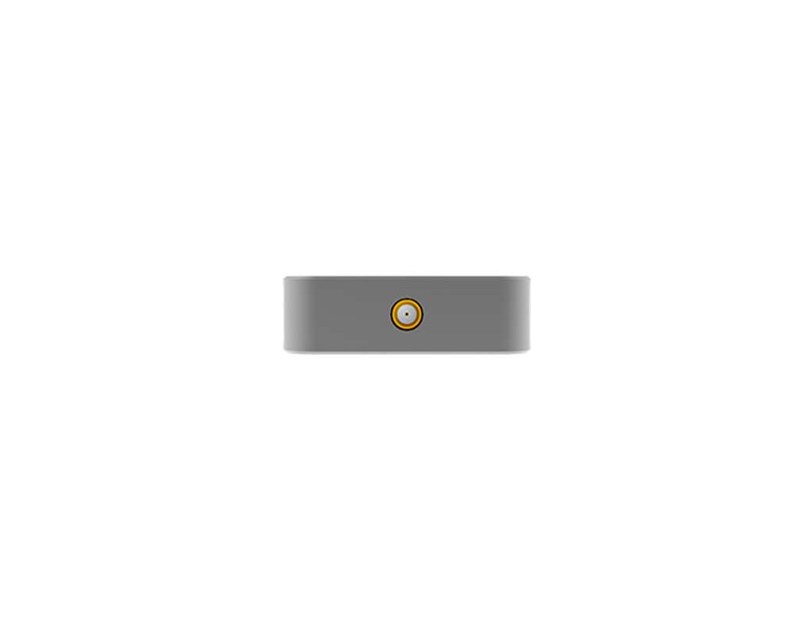

- MCX
* SD/HD/3G SDI

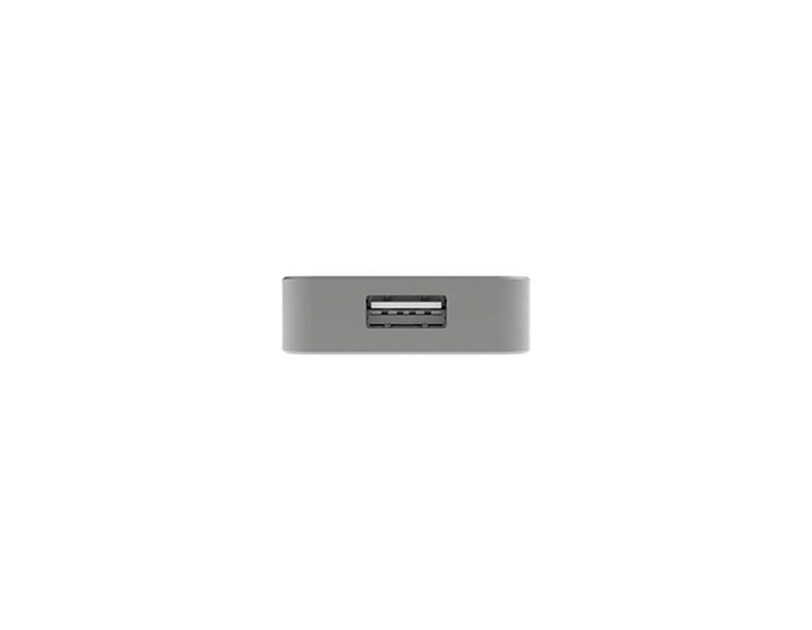

HOST INTERFACE
- USB 3.0
* compatible with USB 2.0
* compatible with USB 3.1 Gen 1

INPUT FEATURES
- Support for up to 2048x1080 input resolution

SDI SPECIFIC FEATURES
- Integrated cable equalizer supporting cable lengths up to 140M for 3G-SDI signals
- Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
- Support for 2K (2048x1080) mode
- Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Support for 10/12-bit color depth
- Support for extraction of SMPTE 352 payload identifier
- Support for up to 2 (mono) audio channels at 48KHz
- Support for extraction of audio formation information & channel status data
- Limited support of 3Gb-DS: only the first stream can be captured
- Limited support for capture of the first link of dual link interfaces:
* YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
* YCbCr 4:4:4 10-bit: captured as 4:2:2
* RGB 4:4:4: R/B sub-sampled

VIDEO CAPTURE FORMAT
- Support for capture resolutions up to 2048×1080
- Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency - Typical capture frame rates on the Intel USB 3.0 controller are as follows)
* 1920×1080 YUY2 (up to 70fps)
* 1920×1080 RGB24 (up to 60fps)
- Support for YUY2 & UYVY 4:2:2 8-bit
- Support for RGB24 & RGB32 4:4:4 8-bit
- The default capture format is YUY2. More capture formats can be set using USB Capture Utility

VIDEO PROCESSING FEATURES
- Video processing pipelines with 160 Mpixels/s processing bandwidth
- Video cropping
- Video scaling
- Video de-interlacing
* Weave
* Blend top & bottom field
* Top field only
* Bottom field only
- Video aspect ratio conversion
* Auto or manual selection of input aspect ratio
* Auto or manual selection of capture aspect ratio
* Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
- Video color format conversion
* Auto or manual selection of input color format & quantization range
* Auto or manual selection of capture color format, quantization range & saturation range
* Support for RGB, YCbCr 601, YCbCr 709 color formats
* Support for Limited or Full quantization range
* Support for Limited, Full & ‘Extended gamut’ saturation range
- Video frame rate conversion
- Vertical flip and mirror

MULTIPLE DEVICES ON ONE COMPUTER
- Support for connecting multiple USB devices to one system
- Support for setting the device serial number as the device name shown in the system using USB Capture Utility

SDK
- The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.

FIRMWARE UPGRADE
- Multiple devices in one system can be upgraded simultaneously

LED INDICATOR
- Status LEDs indicate the working state of each channel:
* Pulsing slowly: idle
* On: input signal locked
* Off: input signal unlocked
* Double blinks: memory failed or FPGA configuration failed

FORM FACTOR
- 92.2(L) × 40.2(W) × 12.3(H) mm

ACCESSORIES
- USB 3.0 cable
- MCX to SDI cable

POWER CONSUMPTION
- 5V max current: 0.5 A
- max power consumption: 2.5 W

WORKING ENVIRONMENT
- Operating temperature: 0C to 50 deg C
- Storage temperature: -20C to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
