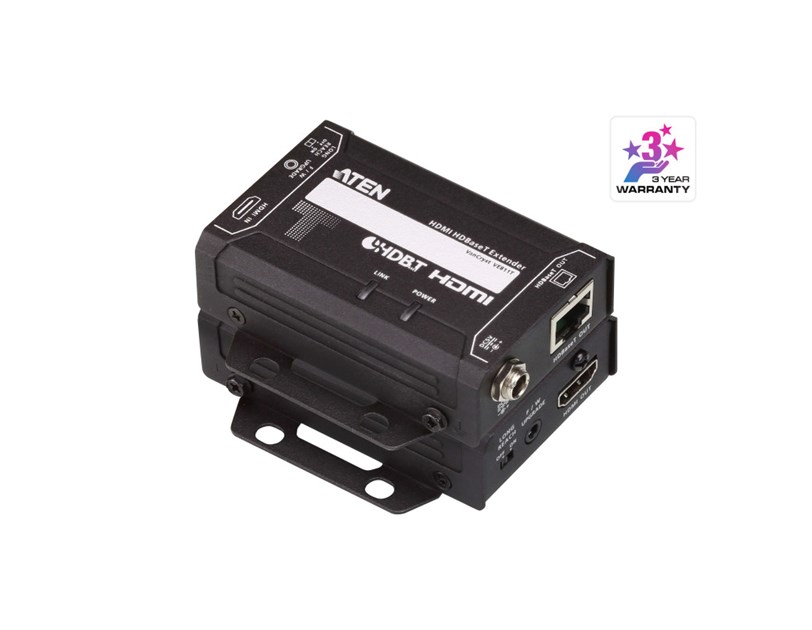

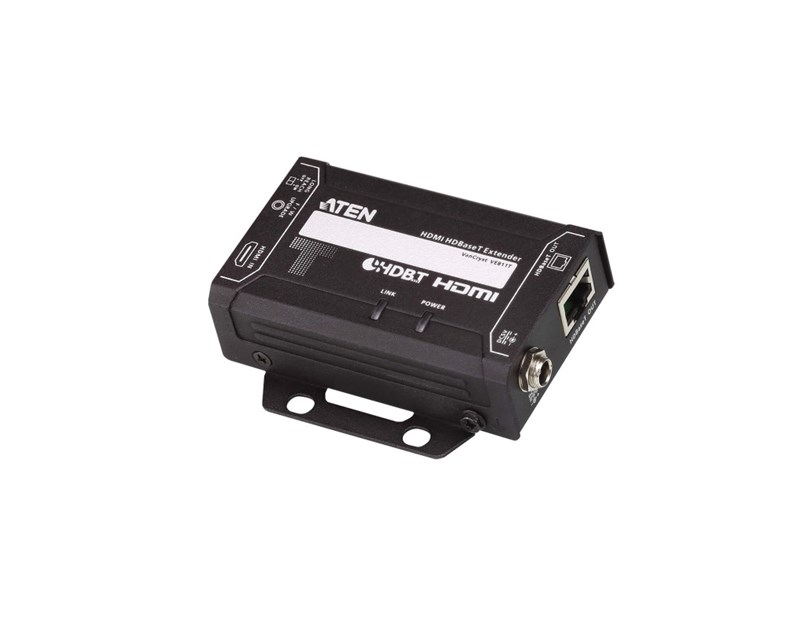

Aten HDMI HD BaseT Extender (4K100m) (HDBaseT Class A)
-
Šifra artikla14.01.6934
-
Kataloški brojVE811
-
Jamstvo24 mjeseca
{{CurrentProduct.SinglePriceToPay_print}}

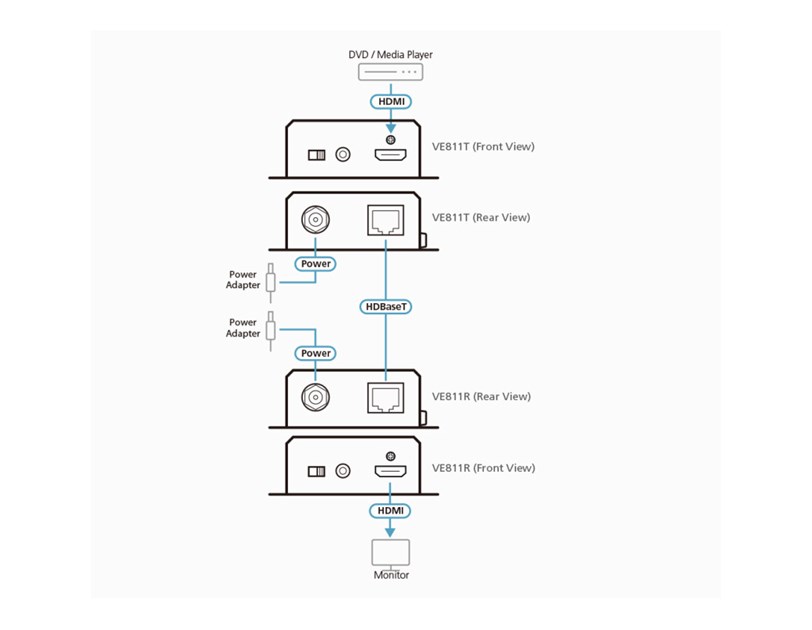

- The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. In addition, with the support for Long Reach Mode, it extends HDMI signals @ 1080p up to 150 m via a single Cat 5e/6 cable. The VE811 meets HDMI specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. Plus, it supports Dolby Digital 5.1 and DTS HD audio.
- Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today’s digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
Specifications
Video Input

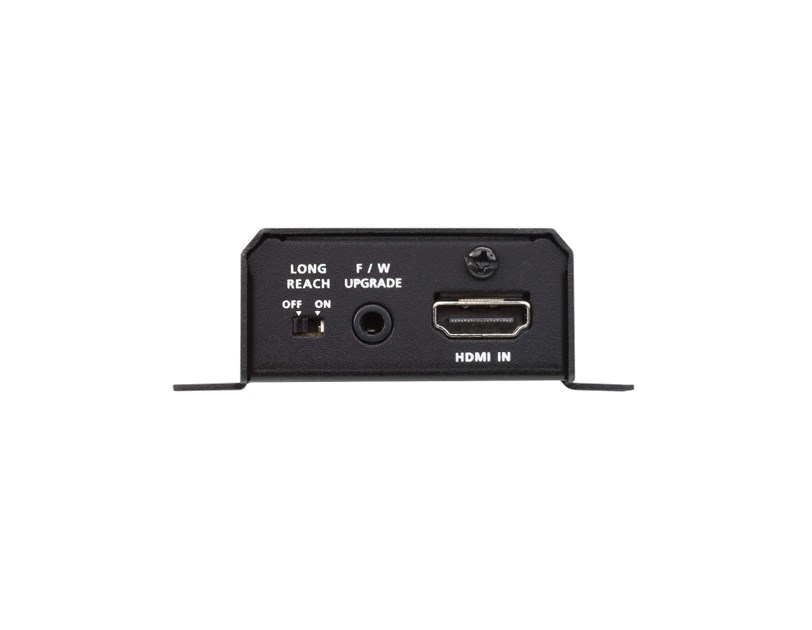

- Interfaces: 1 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 3 m
Video Output

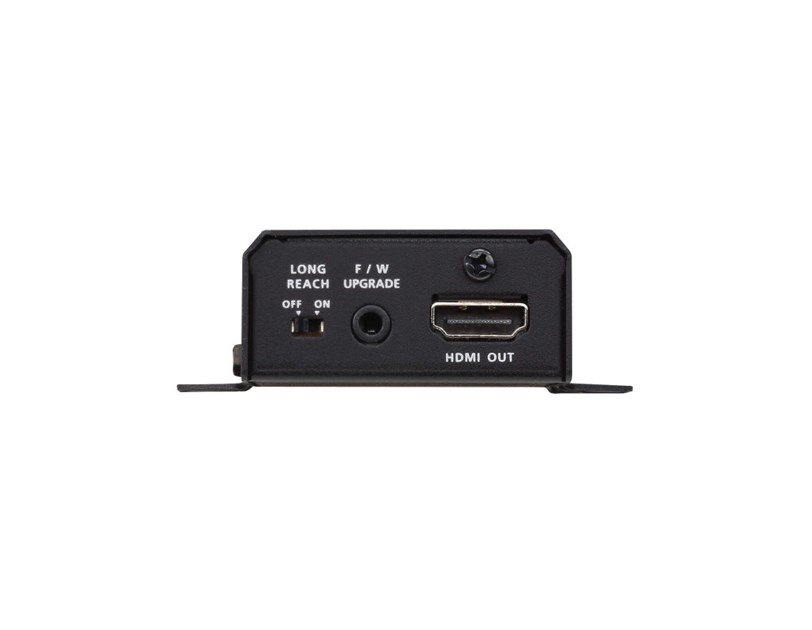

- Interfaces: 1 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 3 m
Video
- Max. Data Rate: 10.2Gbps (3.4Gbps per lane)
- Max. Pixel Clock: 340 MHz
- Compliance
• HDMI (3D, Deep Color, 4K)
• HDCP2.2 Compatible
• Consumer Electronics Control (CEC)
• Max. Resolutions / Distance
- Up to 4K 70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p 100m (Cat 5e/6/6a)
- 4K supported:
• 4096 x 2160 / 3840 x 2160 60Hz (4:2:0);
• 4096 x 2160 / 3840 x 2160 30Hz (4:4:4)
Audio
- Input: 1 x HDMI Type A Female (Black)
- Output: 1 x HDMI Type A Female (Black)

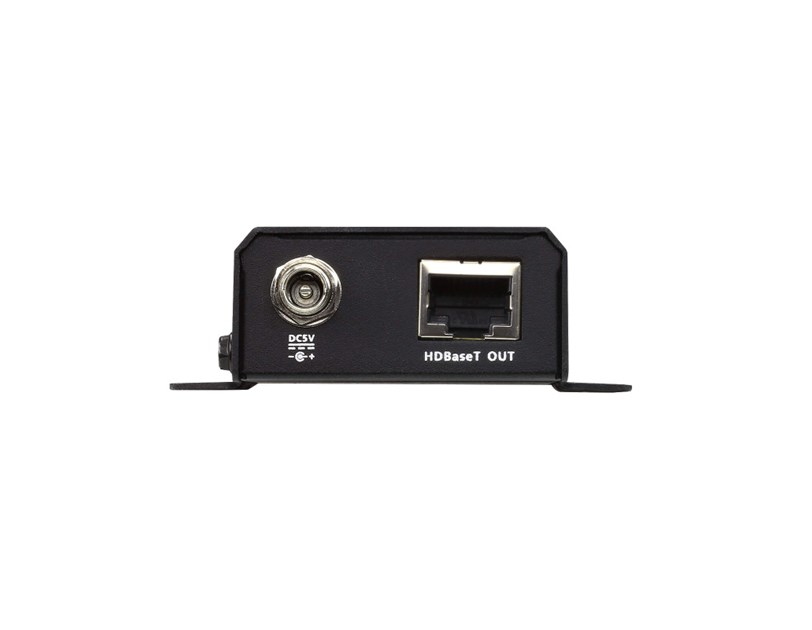

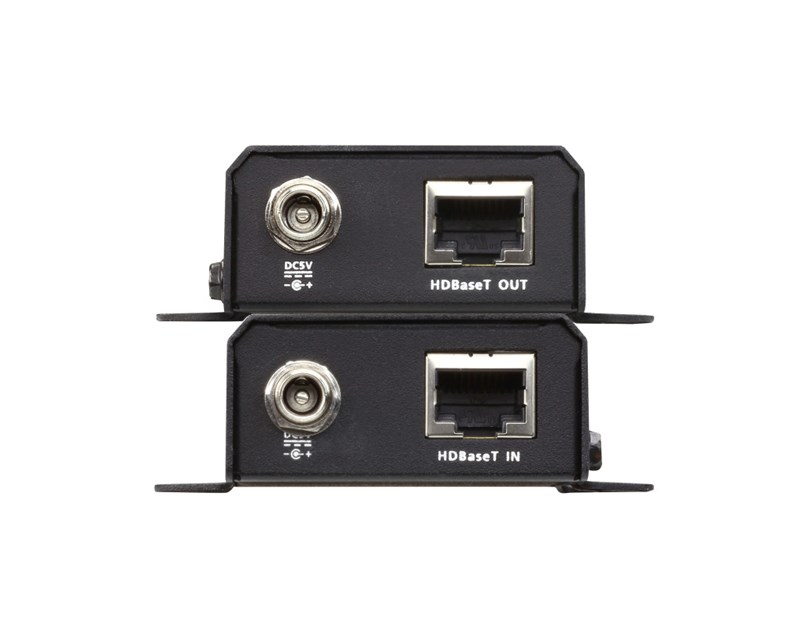

Connectors
- Unit To Unit: 1 x RJ-45 Female
- Firmware Upgrade: 1 x Mini Stereo Jack Female (Black)
- Power: 1 x DC Jack (Black) with locking

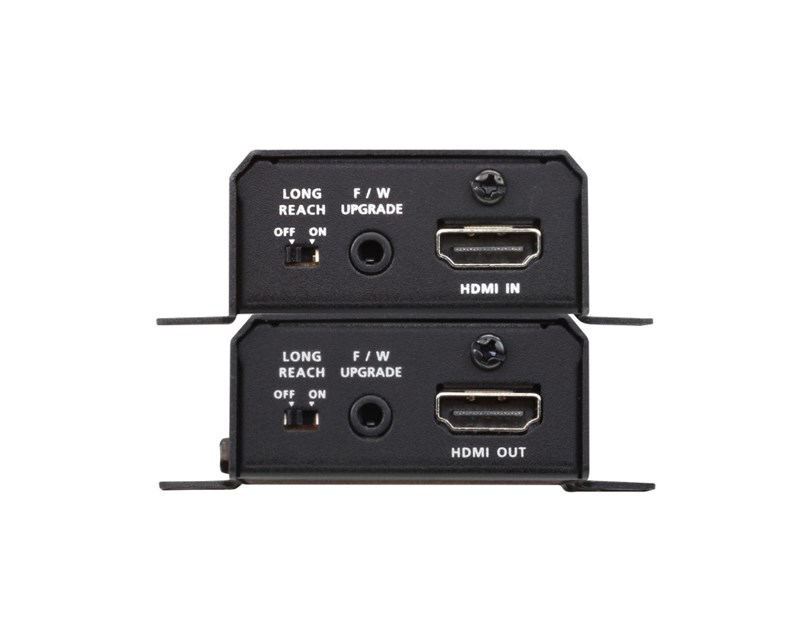

Switches
- Long Reach Mode Switch: Slide Switch - ON/OFF
Power Consumption
- DC5V:3.84W:18BTU
- DC5V:3.77W:18BTU
Environmental
- Operating Temperature: 0 - 40°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-Condensing
Physical Properties
- Housing: Metal
- Weight: 0.17 kg ( 0.37 lb )
- Dimensions (L x W x H) with bracket: 8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.)
- Dimensions (L x W x H) without bracket: 8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.)
Package Contents
• 1x VE811T HDMI HDBaseT Transmitter
• 1x VE811R HDMI HDBaseT Receiver
• 2x 0AD6-1F05-26EG Power Adapters
• 1x User Instructions
- Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today’s digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
Specifications
Video Input
- Interfaces: 1 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 3 m
Video Output
- Interfaces: 1 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 3 m
Video
- Max. Data Rate: 10.2Gbps (3.4Gbps per lane)
- Max. Pixel Clock: 340 MHz
- Compliance
• HDMI (3D, Deep Color, 4K)
• HDCP2.2 Compatible
• Consumer Electronics Control (CEC)
• Max. Resolutions / Distance
- Up to 4K 70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p 100m (Cat 5e/6/6a)
- 4K supported:
• 4096 x 2160 / 3840 x 2160 60Hz (4:2:0);
• 4096 x 2160 / 3840 x 2160 30Hz (4:4:4)
Audio
- Input: 1 x HDMI Type A Female (Black)
- Output: 1 x HDMI Type A Female (Black)
Connectors
- Unit To Unit: 1 x RJ-45 Female
- Firmware Upgrade: 1 x Mini Stereo Jack Female (Black)
- Power: 1 x DC Jack (Black) with locking
Switches
- Long Reach Mode Switch: Slide Switch - ON/OFF
Power Consumption
- DC5V:3.84W:18BTU
- DC5V:3.77W:18BTU
Environmental
- Operating Temperature: 0 - 40°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-Condensing
Physical Properties
- Housing: Metal
- Weight: 0.17 kg ( 0.37 lb )
- Dimensions (L x W x H) with bracket: 8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.)
- Dimensions (L x W x H) without bracket: 8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.)
Package Contents
• 1x VE811T HDMI HDBaseT Transmitter
• 1x VE811R HDMI HDBaseT Receiver
• 2x 0AD6-1F05-26EG Power Adapters
• 1x User Instructions
