Aten 8-Port True 4K HDMI Switch
-
Šifra artikla14.01.6957
-
Kataloški brojVS0801HB
-
Jamstvo24 mjeseca
{{CurrentProduct.SinglePriceToPay_print}}

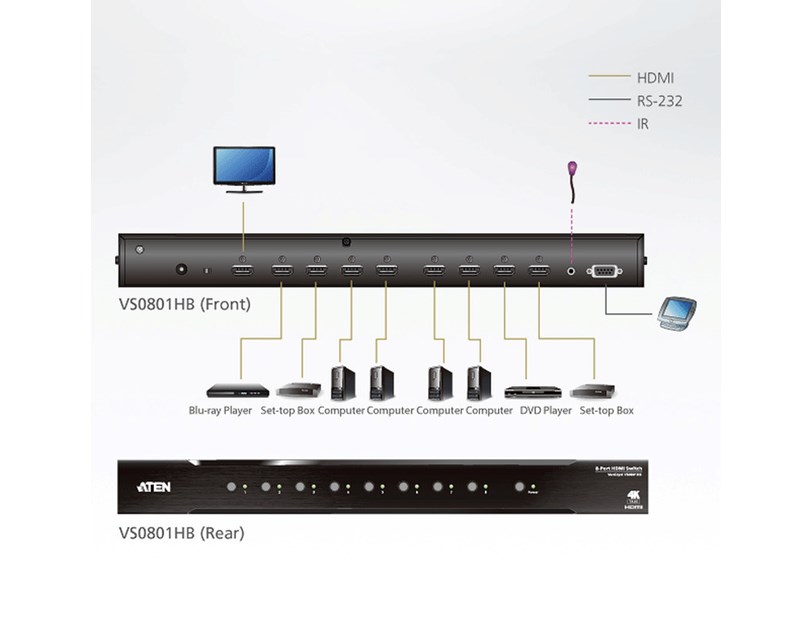

- The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection.
Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.
- Engineered to meet today’s demand of True 4K signal transmission and user-oriented design, the ATEN VS0801HB is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
Specifications
Switches
- DIP: 1 x Auto Switch ON / OFF
Video Input
- Interfaces: 8 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video Output
- Interfaces: 1 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video
- Max. Data Rate: 18 Gbps (6 Gbps Per Lane)
- Max. Pixel Clock: 600 MHz
- Compliance:
• HDMI 2.0 (3D, Deep Color)
• HDCP 2.2
• Consumer Electronics Control (CEC)
- Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 60Hz (4:4:4)
- Max. Distance: 5M at 4096 x 2160 / 3840 x 2160 60Hz (4:4:4)
Control
- RS-232 Connector: 1 x DB-9 Female (Black)
- Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR: 1 x Mini Stereo Jack Female (Black)
Connectors
- Power: 1 x DC Jack (with locking)
- Power Consumption: DC5.3V:3.73W:17BTU
Environmental
- Operating Temperature: 0 - 40°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-Condensing
Physical Properties
- Housing Metal
- Weight 2.14 kg ( 4.71 lb )
- Dimensions (L x W x H): 43.72 x 15.83 x 4.40 cm (17.21 x 6.23 x 1.73 in.)
- Carton Lot: 3 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.
- Engineered to meet today’s demand of True 4K signal transmission and user-oriented design, the ATEN VS0801HB is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
Specifications
Switches
- DIP: 1 x Auto Switch ON / OFF
Video Input
- Interfaces: 8 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video Output
- Interfaces: 1 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video
- Max. Data Rate: 18 Gbps (6 Gbps Per Lane)
- Max. Pixel Clock: 600 MHz
- Compliance:
• HDMI 2.0 (3D, Deep Color)
• HDCP 2.2
• Consumer Electronics Control (CEC)
- Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 60Hz (4:4:4)
- Max. Distance: 5M at 4096 x 2160 / 3840 x 2160 60Hz (4:4:4)
Control
- RS-232 Connector: 1 x DB-9 Female (Black)
- Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR: 1 x Mini Stereo Jack Female (Black)
Connectors
- Power: 1 x DC Jack (with locking)
- Power Consumption: DC5.3V:3.73W:17BTU
Environmental
- Operating Temperature: 0 - 40°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-Condensing
Physical Properties
- Housing Metal
- Weight 2.14 kg ( 4.71 lb )
- Dimensions (L x W x H): 43.72 x 15.83 x 4.40 cm (17.21 x 6.23 x 1.73 in.)
- Carton Lot: 3 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
