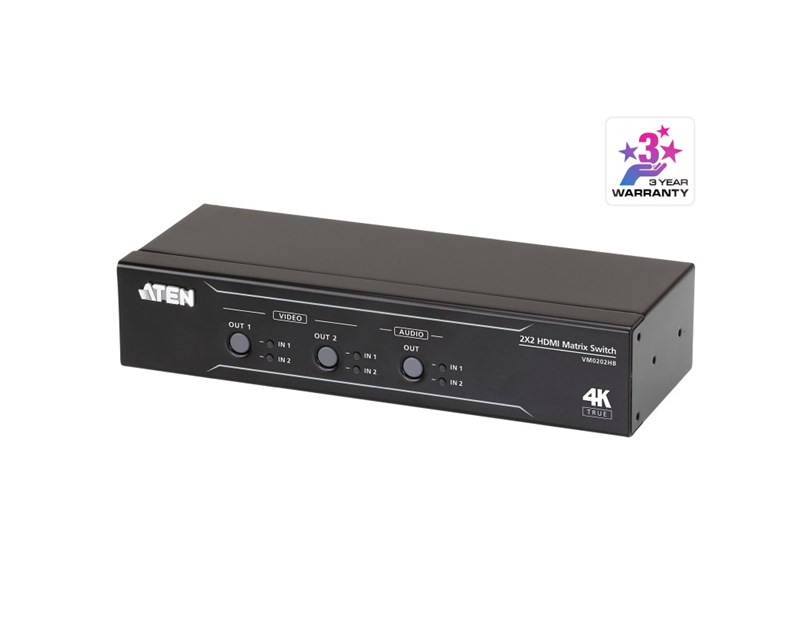

Aten 2x2 True 4K HDMI Matrix Switch with Audio De-Embedder

Ideal for Managing Content Across 2 Displays
- The VM0202HB is a compact 2 x 2 matrix switch compatible with HDMI source and display devices. Any input can be routed to any output, reducing the need for you to move devices or cables when displaying content from different HDMI sources on different outputs. It is ideal for meeting rooms and classrooms, as well as any venue where you need to switch between 2 different video sources on different displays.

Stunning Video Quality with True 4K, HDR
- With support for up to 4096x2160 60Hz (4:4:4) resolutions, the VM0202HB delivers brilliant video quality with amazing detail. It is HDR-compatible and supports popular formats including HDR10+, Hybrid Log Gamma (HLG), and both static and dynamic HDR to deliver deeper blacks, brighter whites, and an extended color space.

Flexible Audio De-Embedding

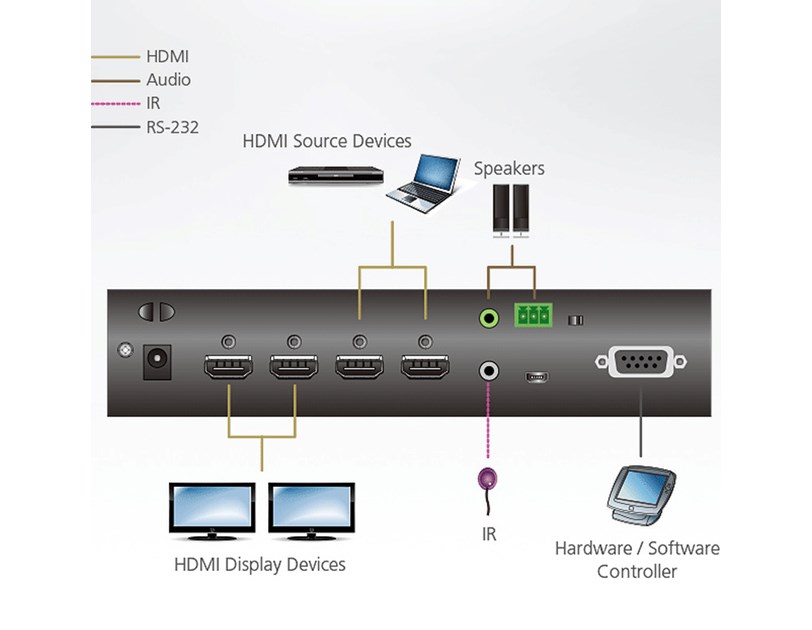

- The VM0202HB is designed with the audio routing flexibility to meet different application requirements. In a simple setup, HDMI audio can be connected and switched directly to display audio. For a more complex setup, HDMI audio can be de-embedded to Audio Line Out in order connect to your preferred in-room audio equipment.

Multiple Control Options for Easy Operation

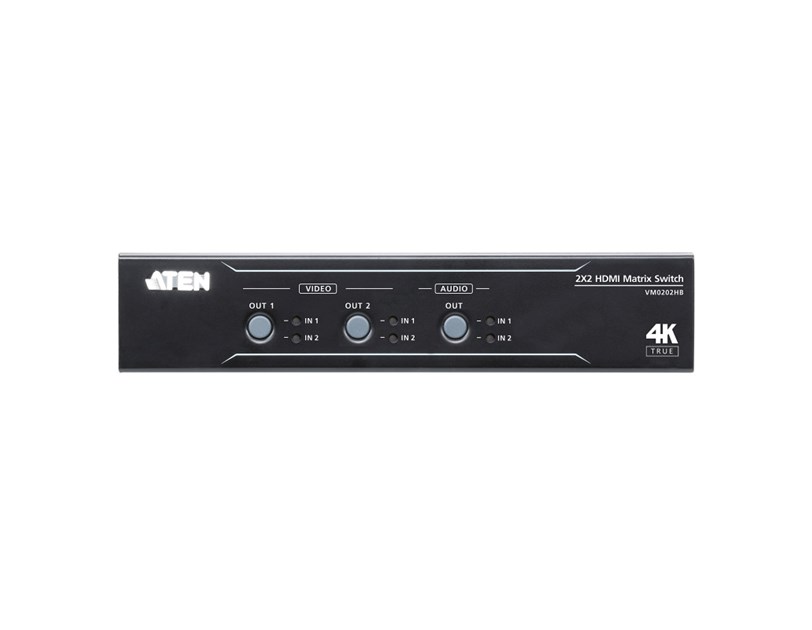

- The VM0202HB offers both manual and remote control options to make your operations easy. You can switch inputs to outputs and adjust audio settings manually through front panel pushbuttons. For remote control, simply plug-n-play the IR receiver and the corresponding IR remote. In addition, you can even integrate VM0202HB with your preferred control interface via RS-232.

- Fast and Convenient Auto Switching
The VM0202HB offers an auto switching function that makes operation more convenient for the user. This function can be set up via RS-232, and features two modes: Plugged Mode, which automatically detects and switches to a new source when connected; and Unplugged Mode, which automatically switches to the remaining source when the current display source is disconnected.

- The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 60Hz (4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications.

- The VM0202HB matrix switch delivers superior video resolutions up to 4096 x 2160 60Hz (4:4:4), and also provides highperformance routing of 2 HDMI video sources such as highdefinition Blu-ray players, home theater PCs, camcorders, DVD players, satellite boxes and stand-alone streaming media players to any 2 HDMI displays. In addition, the built-in audio deembedder allows HDMI audio extraction for independent analog audio output with ease. For efficient control and management, VM0202HB’s remote control and front-panel pushbuttons provide a convenient way to cycle through HDMI video and audio sources with clear LED indication of the selected source.

Specifications
Video Input
- Interfaces: 2 x HDMI Type A Female (Black)
- Impedance: 100
- Max. Distance: 5.0 m

Video Output
- Interfaces: 2 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 5.0 m

Video
- Max. Data Rate: 18.0 Gbps (6.0 Gbps Per Lane)
- Max. Pixel Clock: 600 MHz
- Compliance

• HDMI (3D, 4K, Deep Color)

• HDCP 2.2 Compatible

• Consumer Electronics Control (CEC)
- Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
- Max. Distance: Up to 5.0 m

Audio
- Output: 1x Mini Stereo Jack Female; 1x Captive Screw Connector, 3 pole

Control
- USB:

• 1 x Micro USB

• F/W upgrade
- RS-232

• Connector: 1 x DB-9 Female (Black)

• Baud rate and protocol:

• Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR: 1 x Mini Stereo Jack Female (Black)

EDID Settings
- EDID Mode: Default / Port1 / Remix

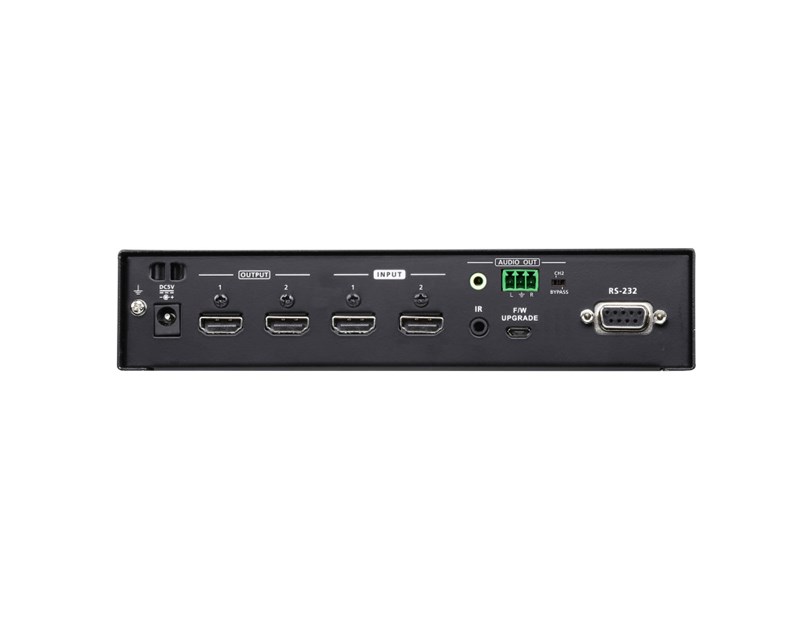

Connectors
- Power: 1 x DC Jack (Black)

Power Consumption
- DC5V:2.47W:11BTU

Environmental
- Operating Temperature: 0-40°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-Condensing

Physical Properties
- Housing: Metal
- Weight: 0.60 kg ( 1.32 lb )
- Dimensions (L x W x H): 20.00 x 7.60 x 4.20 cm (7.87 x 2.99 x 1.65 in.)
- Carton Lot: 5 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

• 1x VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder

• 1x JCNT-3301-103G 3-pole Terminal Block

• 1x 0AD8-1005-26M1 Power Adapter

• 1x 2XRT-0106G IR Remote Control

• 1x 2XRT-0003G IR Receiver

• 1x Rack Mount Kit

• 1x User Instructions
