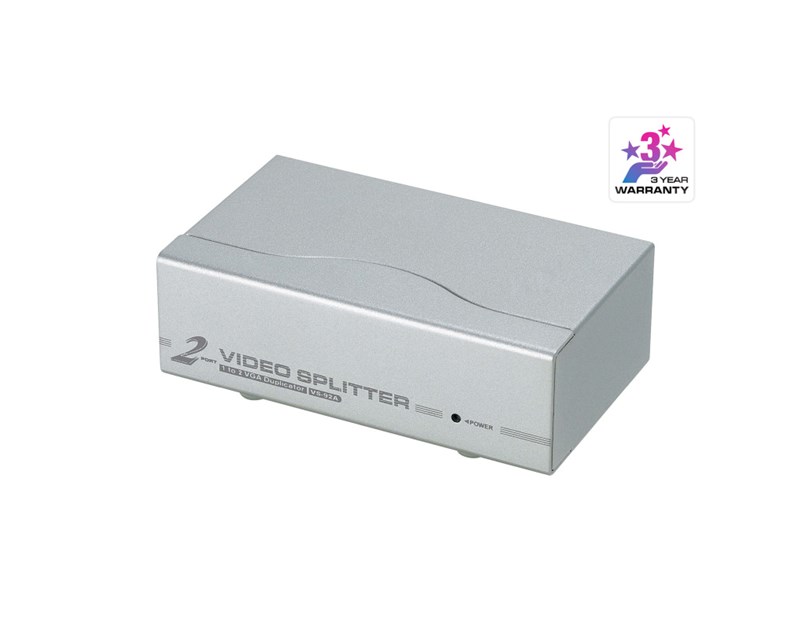

Aten 2-Port VGA Splitter (350MHz)
-
Šifra artikla14.01.6381
-
Kataloški brojVS92A
-
Jamstvo36 mjeseci
{{CurrentProduct.SinglePriceToPay_print}}

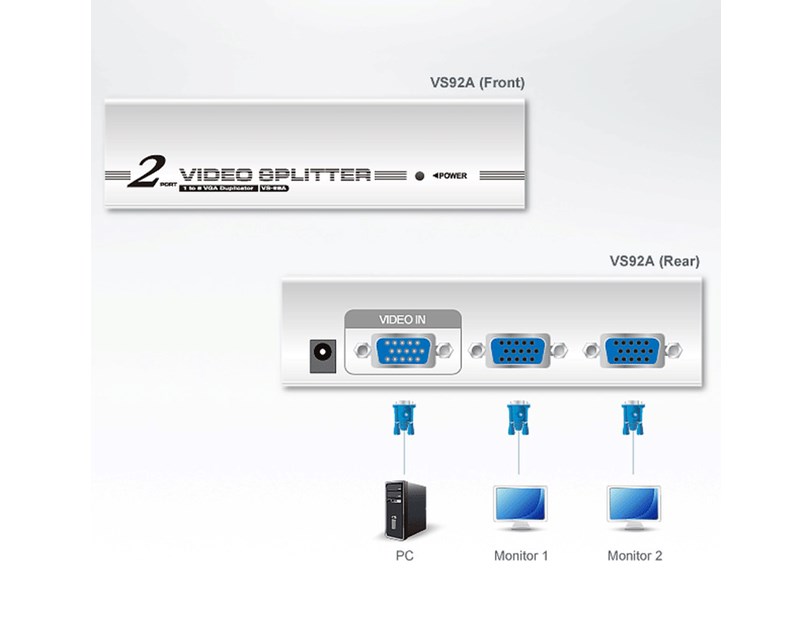

- The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
Specifications
Video Input
- Interfaces. 1 x HDB-15 Male (Blue)
- Impedance: 75 ?
- Max. Distance: 1.8 m
Video Output
- Interfaces: 2 x HDB-15 Female (Blue)
- Impedance: 75 ?
Video
- Max. Bandwidth: 350 MHz
- Max. Resolution: Up to 1920 x 1440
- Max. Distance: Up to 30 m
Connectors
- Power: 1 x DC Jack
Power Consumption
- DC9V:1.15W:5BTU
Environmental
- Operating Temperature: 0-50°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-Condensing
Physical Properties
- Housing: Metal
- Weight: 0.42 kg ( 0.93 lb )
- Dimensions (L x W x H): 13.00 x 7.51 x 4.40 cm (5.12 x 2.96 x 1.73 in.)
- Carton Lot: 20 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Specifications
Video Input
- Interfaces. 1 x HDB-15 Male (Blue)
- Impedance: 75 ?
- Max. Distance: 1.8 m
Video Output
- Interfaces: 2 x HDB-15 Female (Blue)
- Impedance: 75 ?
Video
- Max. Bandwidth: 350 MHz
- Max. Resolution: Up to 1920 x 1440
- Max. Distance: Up to 30 m
Connectors
- Power: 1 x DC Jack
Power Consumption
- DC9V:1.15W:5BTU
Environmental
- Operating Temperature: 0-50°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-Condensing
Physical Properties
- Housing: Metal
- Weight: 0.42 kg ( 0.93 lb )
- Dimensions (L x W x H): 13.00 x 7.51 x 4.40 cm (5.12 x 2.96 x 1.73 in.)
- Carton Lot: 20 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
