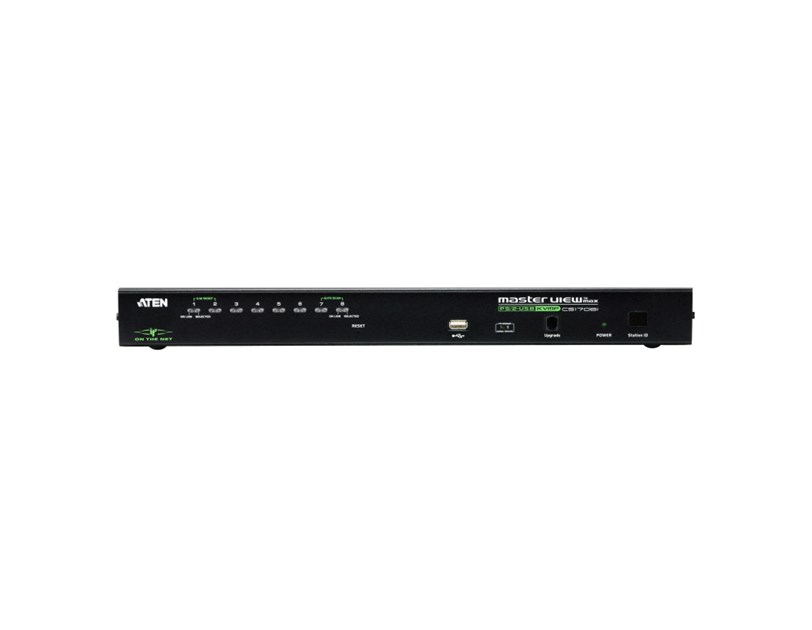

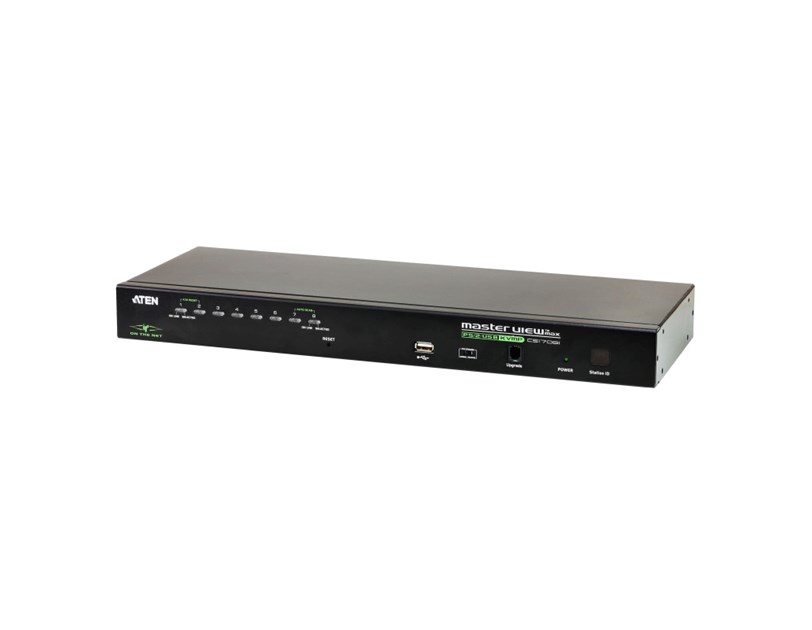

Aten 1-Local/Remote Share Access 8-Port PS/2-USB VGA KVM over IP Switch

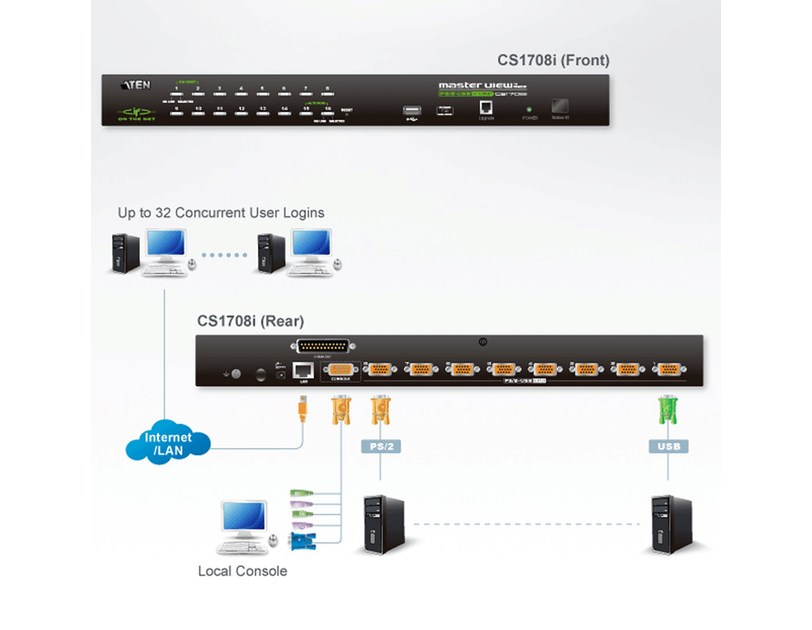

- The CS1708i is an 8-port KVM switch in a 1U housing for convenient rack mounting. This device allows system administrators to access the attached servers both locally and over IP (LAN and/or WAN). CS1708i works platform independent and supports e.g. Windows, Linux, MAC, SUN

- The special KVM cables and the Aten feature “Video DynaSync”, makes sure that an optimal video resolution can be maintained. In addition it’s easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 128.

- Among the CS1708i other outstanding features, a Panel Array Mode provides the ability to monitor up to 8 servers per switch; while the Mouse DynaSync™ feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.

- The CS1708i supports the highest security protocols, such as TLS 1.2 encryption for the browser, and RC4 encryption for secure keyboard, mouse, and video data transmission. For easier and more efficient user management integration, the CS1708i also supports authentication and authorization via remote servers, such as RADIUS, LDAP, LDAPS, and MS Active Directory.

- These powerful features not only help administrators manage their server room in an efficient and flexible manner, they provide a cost effective management solution for the SMB sector.

Specifications
Computer Connections
- Direct: 8
- Maximum: 128 (via daisy chain)
- Port Selection: OSD/GUI; Hotkey; Pushbutton

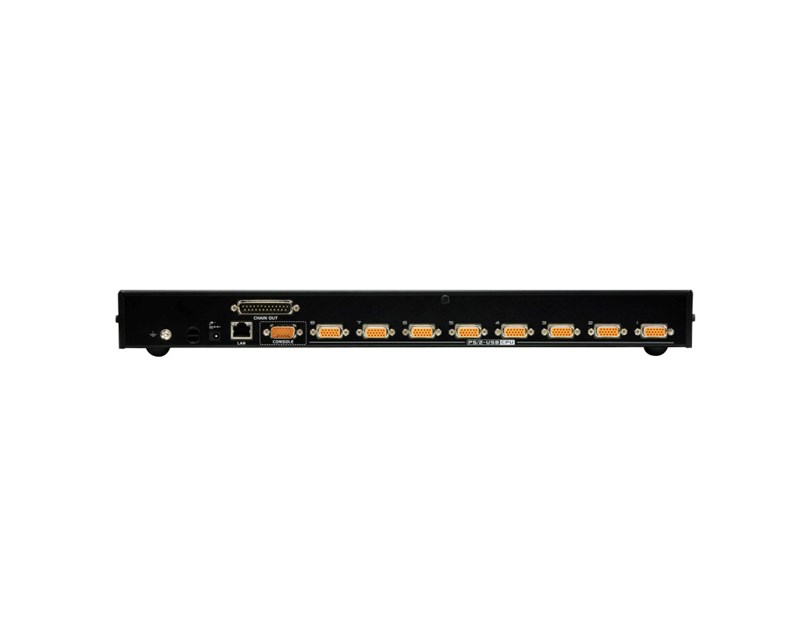

Connectors
- Console Ports: 1 x SPHD Male (Yellow)
- KVM Ports: 8 x SPHD Female (Yellow)
- Daisy Chain Ports: 1 x DB-25 Male
- Power: 1 x DC Jack
- LAN Ports: 1 x RJ-45 Female
- Firmware Upgrade: 1 x RJ-11
- USB Port: 1 x USB Type A Female

Switches
- Reset: 1 x Semi-recessed Pushbutton
- Port Selection: 8 x Pushbutton
- Firmware Upgrade Recovery: 1 x Slide

LEDs
- Online: 8 (Orange)
- Selected: 8 (Green)
- Station ID: 1 x 2-digit, 7-segment (Orange)
- Power: 1 (Dark Green)
- 10/100 Mbps: 1 (Orange/Green - at LAN port)

Emulation
- Keyboard / Mouse: PS/2, USB

Video
- Local: 2048 x 1536; DDC2B
- Remote: FHD : 1920 x 1200 60Hz
- Non-FHD : 1600 x 1200 60Hz

Scan Interval:
1–255 sec.

Power Consumption:
- DC5.3V:7.67W:55BTU

Environmental
- Operating Temperature: 0–50°C
- Storage Temperature: -20–60°C
- Humidity: 0–80% RH, Non-condensing

Physical Properties
- Housing: Metal
- Weight: 2.81 kg ( 6.19 lb )
- Dimensions (L x W x H): 43.72 x 15.96 x 4.40 cm (17.21 x 6.28 x 1.73 in.)
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
