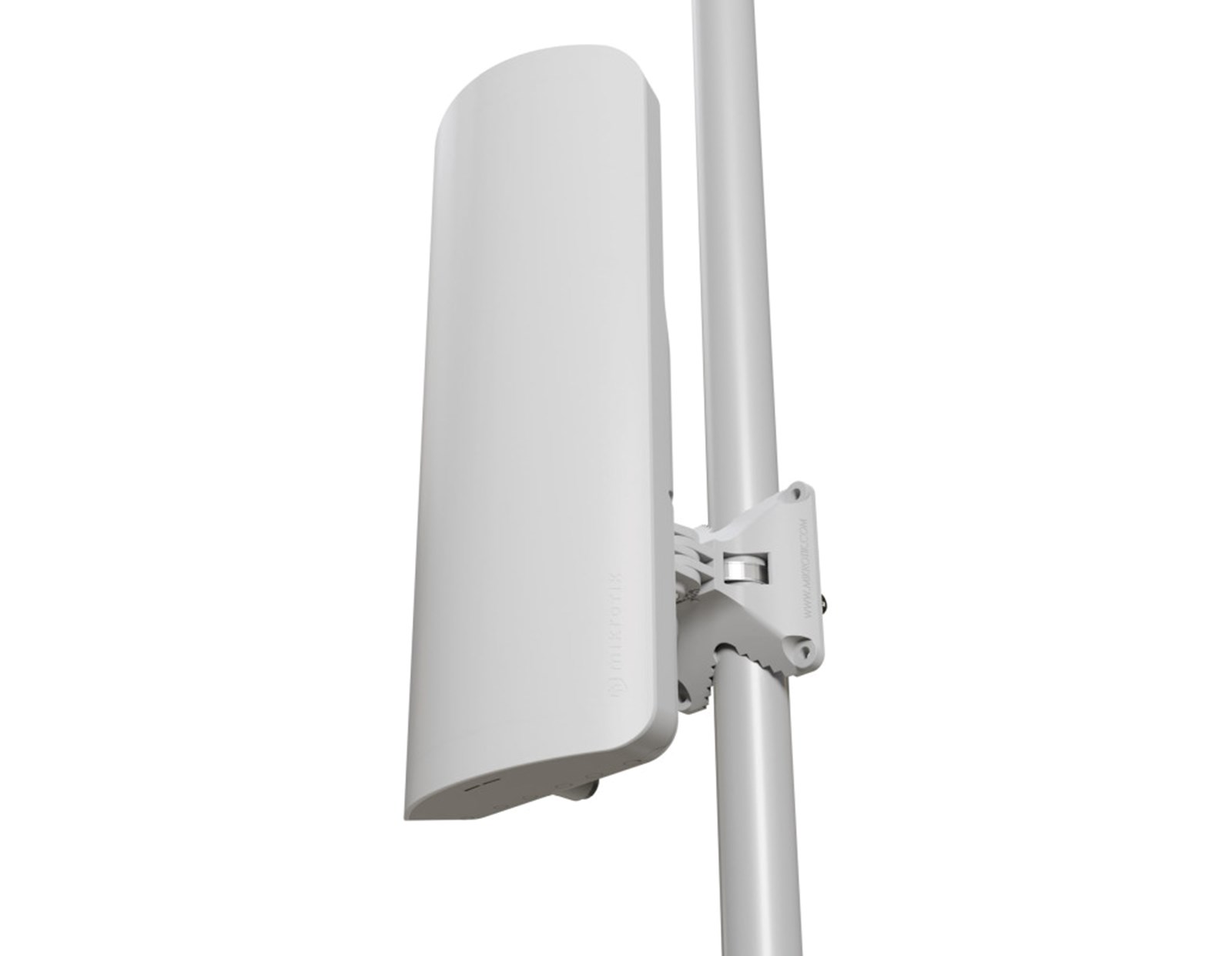

Mikrotik L22UGS-5HaxD2HaxD-15S, 2.4/5GHz Wi-Fi 6, Dual-core CPU,POE-IN (uključen injektor), SFP (2.5G), do 20km, USB Port, 256 MB RAM, Antenna gain: 2.4 GHz - 12 dBi, 5 GHz - 15 dBi

- A drop-in Wi-Fi 6 upgrade for the popular mANTBox dual-band sector antenna base stations. One powerful package for all your outdoor network needs, perfect for camps, stadiums and parks.
Managing outdoor wireless network has never been easier: mANTBox ax 15s can provide unparalleled wireless point-to-multipoint connectivity for a vast variety of devices over a distance of 20 kilometers!

- A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.

- Upgrading your setup to Wi-Fi 6 offers multiple benefits:

- Speed: we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.

- Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like bruteforcing and WPA2 handshakecapture deauthentication attacks

- Reliability: seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.

- Energy efficiency: features like Target Wake Time reduce power consumption in the long run. Better for your wallet and the planet!

- mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro it is possible to perfectly set antenna alignment using an integrated graduated scale.

Specifications
Details
- Product code: L22UGS-5HaxD2HaxD-15S
- Architecture: ARM 64bit
- CPU: IPQ-5010
- CPU core count: 2
- CPU nominal frequency: 800 MHz
- RouterOS license: 4
- Operating System: RouterOS v7
- Size of RAM: 256 MB
- Storage size: 128 MB
- Storage type: NAND
- MTBF: Approximately 200'000 hours at 25C
-Tested ambient temperature: -40°C to 70°C

Powering
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage: 12-28 V
- Max power consumption: 21 W
- Max power consumption without attachments: 11 W
- Cooling type: Passive
- PoE in: Passive PoE
- PoE in input Voltage: 18-28 V

Wireless specifications
- Wireless 2.4 GHz Max data rate: 574 Mbit/s
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz: 12
-Wireless 2.4 GHz chip model: IPQ-5010
- Wireless 2.4 GHz generation: Wi-Fi 6
- Wireless 5 GHz Max data rate: 2400 Mbit/s
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz: 15
- Wireless 5 GHz chip model: QCN-6102
- Wireless 5 GHz generation: Wi-Fi 6

Ethernet
- 10/100/1000 Ethernet ports: 1

Fiber
- SFP ports: 1 (2.5G supported)

Peripherals
- Number of USB ports: 1
- USB Power Reset: Yes
- USB slot type: USB type A
- Max USB current (A): 1.5

Other
- PCB temperature monitor: Yes
- Voltage Monitor: Yes
- Beeper: Yes

Certification & Approvals
- Certification: CE, FCC, IC, EAC, ROHS
- IP: 55

Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 29 -96
54MBit/s 27 -80
MCS0 29 -96
MCS7 26 -75
MCS9 24 -70
MCS11 22 -67

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -96
54MBit/s 26 -80
MCS0 28 -96
MCS7 25 -75
MCS9 23 -70
MCS11 22 -67

Included parts
- 24V 1.2A power adapter
- Gigabit PoE injector
- Hose clamp 1
- QMP
- K-41 fastening set
