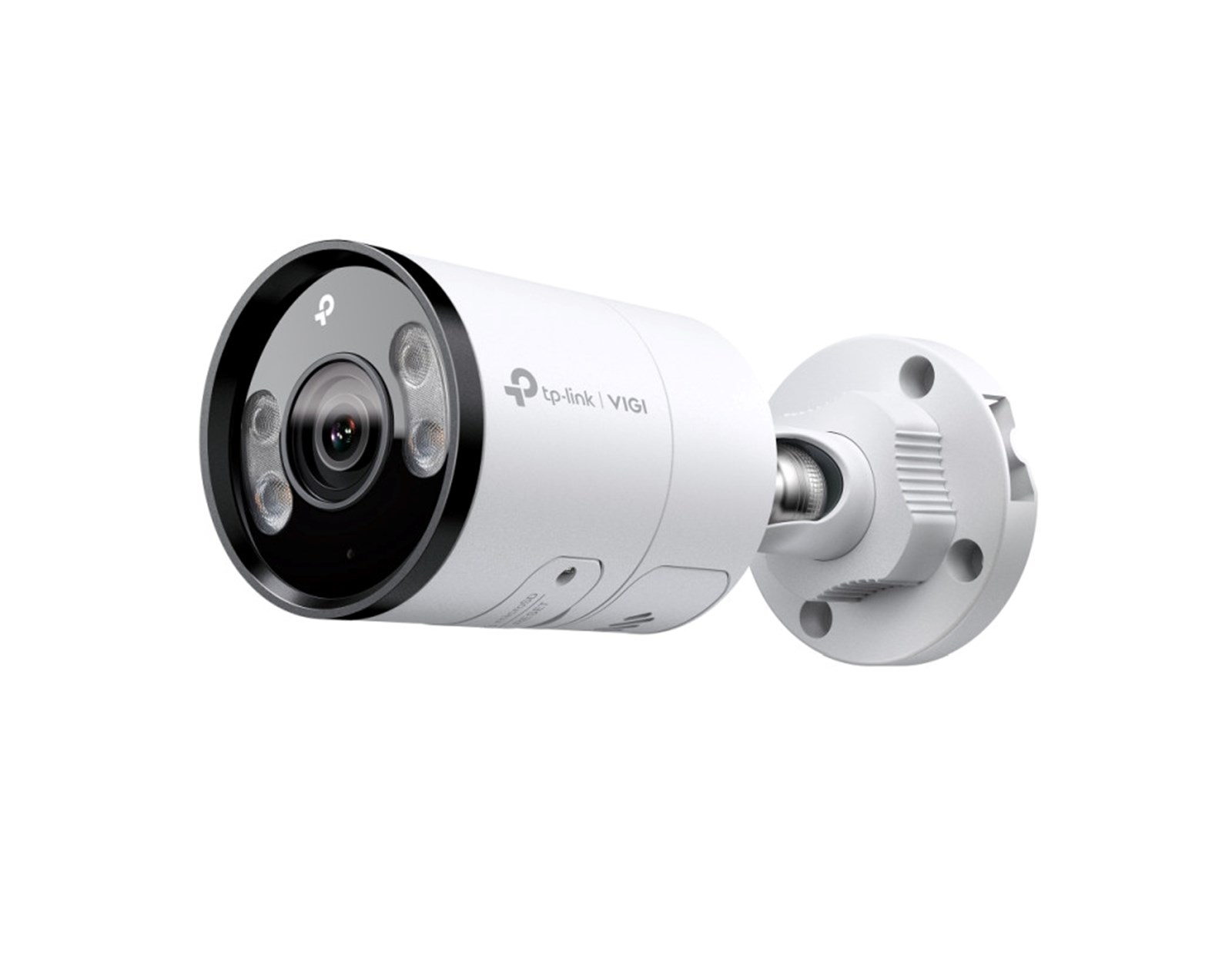

TP-Link VIGI C385 Full-Color kamera 4K UHD 8MP H.265+, 2.8mm leća, RJ45, 12V DC/PoE, Night Vision, microSD, dvosmjerni audio, detekcija pokreta, vodootporna IP67, VIGI app

Features
- 4K (8MP) Ultra HD and 24h Full-Color
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
- 12V DC/PoE

Specifications
HARDWARE FEATURES
CAMERA
- Image Sensor: 1/2.7” Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
- Slow Shutter: Yes
- Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
- Day/Night Mechanism: IR Cut Filter
- Day/Night Switch: Unified/ Scheduled/ Auto

LENS
- Type: Fixed Focal Lens
- Focal Length: 2.8/4 mm
- Aperture: F1.6

FOV
- 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°
- 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°
- Lens Mount: M12*P 0.5

DORI Distance
- 2.8 mm

• Detect: 85 m (278 ft)

• Observe: 35 m (116 ft)

• Recognize: 17 m (56 ft)

• Identify: 8 m (28 ft)
- 4 mm

• Detect: 107 m (350 ft)

• Observe: 44 m (146 ft)

• Recognize: 21 m (70 ft)

• Identify: 11 m (35 ft)

Angle Adjustment (Manual)
- Range: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATOR
- IR LED

• Quantity: 2

• Range: 30m

• Wavelength: 850nm
- White LED

• Quantity: 2

• Range: 30m
- Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

VIDEO
- Max. Resolution: 3840 X 2160
- Main Stream

• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps


• Resolution:
3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080,
1280x720


• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.

Sub-Stream

• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps


• Resolution:
704x576,640x480, 352x288, 320x240


• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.

- Bit Rate Control: CBR, VBR
- Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264
- H.264 Type: High Profile
- H.264+ Main: Stream Supported
- H.265 Type: Main Profile*
- H.265+: Main Stream Supported*
- Video Bit Rate

• Main Stream: 256 Kbps to 6 Mbps

• Sub-Stream: 64 Kbps to 512 Kbps
- Image
- Image Settings

• Mirror

• Brightness

• Contrast

• Saturation

• Sharpness

• Exposure

• WDR

• White Balance

• Prevent Overexposure to Infrared Light

• HLC Adjustable by Client Software
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Wide Dynamic Range: 120 dB
- SNR: ? 52 dB
- Image Parameters Switch: Yes
- Privacy Mask: Up to 4 Masks
- ROI: 1 Region
- OSD Setting: Yes

AUDIO
- Audio Communication: Two-Way Audio
- Audio Input: Yes
- Audio Output: Yes
- Audio Compression: Yes
- Audio Sampling Rate: 8KHz
- Environment Noise Filtering: Yes
- Audio Bit Rate: 64 Kbps(G.711 alaw)

NETWORK
- Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- ONVIF: Yes
- API: Open Network Video Interface (Profile S)
- Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
- Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS
- Web Browser

• Google Chrome 57 and above

• Firefox 52 and above

• Safari 11 and above

• Microsoft Edge 91 and above
- Cloud: Yes
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
- Smart Event

• Human & Vehicle Classification

• Intrusion Detection

• Line-Crossing Detection

• Region Entering Detection

• Region Exiting Detection

• Object Abandoned Detection

• Object Removal Detection

• Loitering Detection

• Smart Frame

• People Detection

• Vehicle Detection
- Basic Event

• Motion Detection

• Video Tampering Detection

• Exception ( Illegal Login)

• Scene Change Detection
- Alarm Linkage

• Memory Card Video Recording

• Message Push

• Audible Warning

• White Light Flashing
- Linkage Method: N/A
- Output Notification: Message Push

INTERFACES
- Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
- Alarm: N/A
- Reset Button: Yes
- Power: DC Power Port
- On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB**
- Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
- Built-in Speaker: Yes
- Audio: N/A

GENERAL
- Operating Temperature: -30–60 °C
- Storage Temperature: -40–60 °C
- Operating Humidity: 95% or Less (Non-Condensing)
- Storage Humidity: 95% or Less (Non-Condensing)
- Package Contents

• VIGI Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories
- Material: Metal
- Net Weight: 0.525 Kg
- Power Supply

• 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug

• PoE: 802.3af/at, class 0, Max. 11.5 W
- Protection: IP67
- Product Dimensions (L x W x H): 74 × 184 × 74 mm
- Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IC
