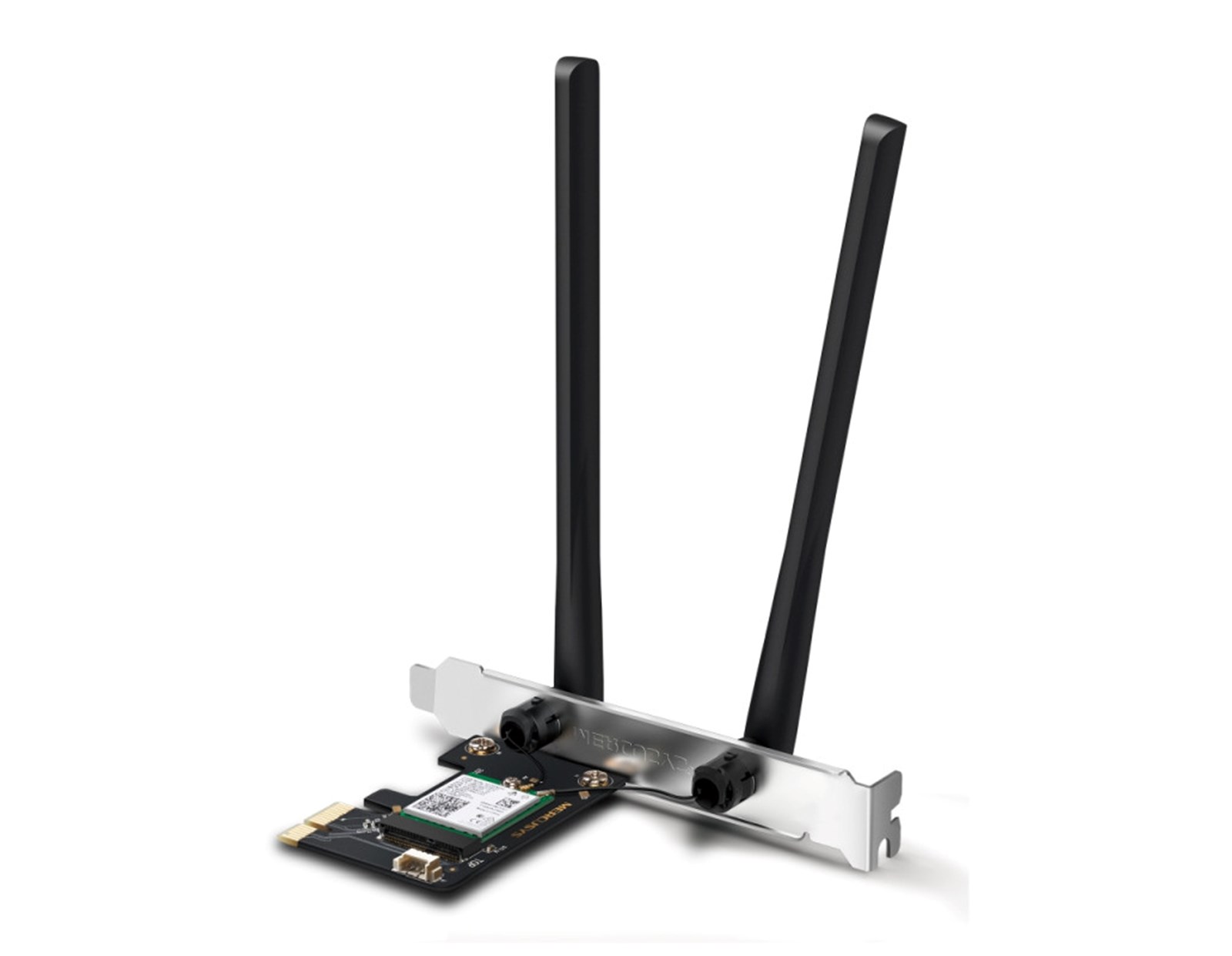

Mercusys AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Unext-Gen Dual Band Speed
- Speeds up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Better Experience
- More devices, lower latency and less congestion

Wider Signal Coverage
- Two high-performance antennas

Improved Security
- The latest security enhancement, WPA3, provides enhanced protection in personal password safety

Intel WiFi 6 Chipset
- More stable and broader connections

Bluetooth 5.2
- The latest Bluetooth technology achieves faster speeds and broader coverage

Backward Compatibility
- Full support for 802.11ax/ac/a/b/g/n standards

Windows Compatible
- Supported operating system: Windows 10, 11 (64 bit)

Specifications
WirelessWireless Standards
- IEEE 802.11 a/ac/ax 5 GHz
- IEEE 802.11 b/g/n/ax 2.4 GHz

WiFi Speeds
- 2402 Mbps on 5 GHz
- 574 Mbps on 2.4 GHz

Reception Sensitivity
- 5 GHz:

• 11ax HE80 MCS0: -90 dBm

• 11ax HE80 MCS11: -59 dBm

• 11a 54Mbps: -77 dBm

• 11ac VHT80 MCS0: -92dBm

• 11ac VHT80 MCS9: -64dBm
- 2.4 GHz:

• 11ax HE40 MCS0: -91 dBm

• 11ax HE40 MCS11: -60 dBm

• 11g 54Mbps: -76 dBm

• 11n HT40 MCS7: -72dBm

Wireless Security
- WPA-PSK/WPA2-PSK/WPA3-SAE

HardwareDimensions
- 8.9 × 4.8 × 0.85 in (226.3 × 120.8× 21.5 mm)

Antenna Type
- 2× Fixed High-Performance Omni-Directional Antennas

OthersPackage Contents
- AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter (MA80XE)
- Bluetooth Header Cable
- Quick Installation Guide
- Resource CD

Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Operating Humidity: 10%~90% Non-Condensing
- Storage Humidity: 5%~90% Non-Condensing

System Requirements
- Supported operating systems include Windows 10, 11(64-bit)
