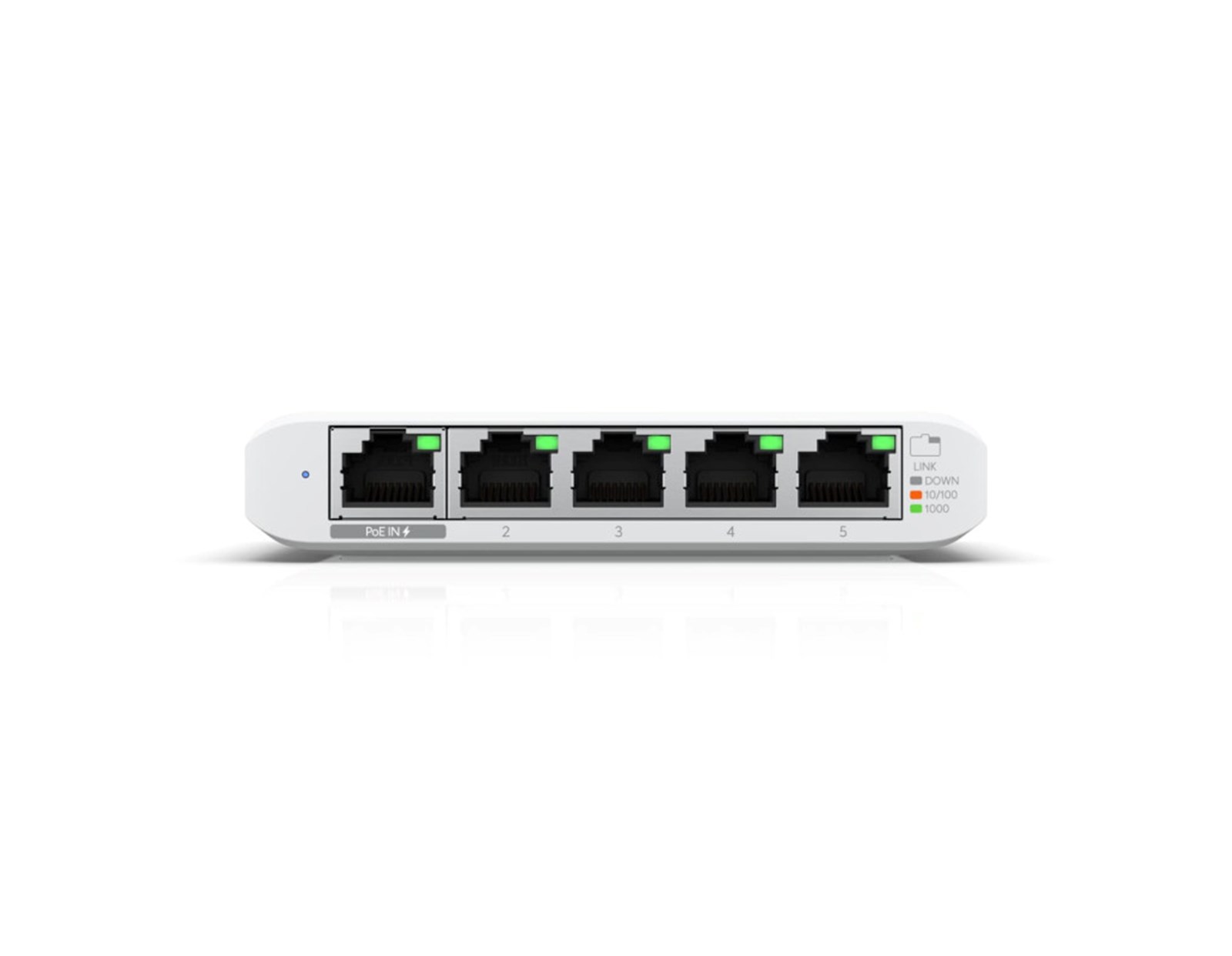

Ubiquiti UniFi Switch USW-Flex-Mini

Features
- A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.
- (4) GbE ports
- (1) GbE PoE input port for power
- Optional powering with included 5V, 1A USB-C adapter

Specifications
Mechanical
- Dimensions: 107 x 70 x 21 mm (4.2 x 2.8 x 0.8")
- Weight: 150 g (5.3 oz)
- Enclosure material: Polycarbonate

Hardware
- Management interface: Ethernet In-Band
- Networking interface: (5) GbE RJ45 ports
- Total non-blocking throughput: 5 Gbps
- Switching capacity: 10 Gbps
- Forwarding rate: 7.44 Mpps
- Power method

• (1) USB Type C, 5V

• (1) PoE/PoE+, 44—57V DC, 0.05—0.04A
- Power supply: 5V, 1A power adapter*
*Only single-unit packages include the 5V, 1A USB-C power adapter.
- Supported voltage range

• USB Type C: 4.7—5.3V DC

• PoE/PoE+: 44—57V DC
- Max. power consumption: 2.5W
- ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
- Button: Factory reset
- Ambient operating temperature: -5 to 45° C (23 to 113° F)
- Ambient operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC

Switching Features
Layer 2 features

• Port isolation

• Storm control

• Port mirroring

• Multicast / broadcast rate limiting

• Flow control

• Jumbo frames

• Egress rate limit

LEDs
- System: Status
- Ethernet: Speed/link/activity

Application Requirements
- UniFi Network: Version 5.12.5 and later
