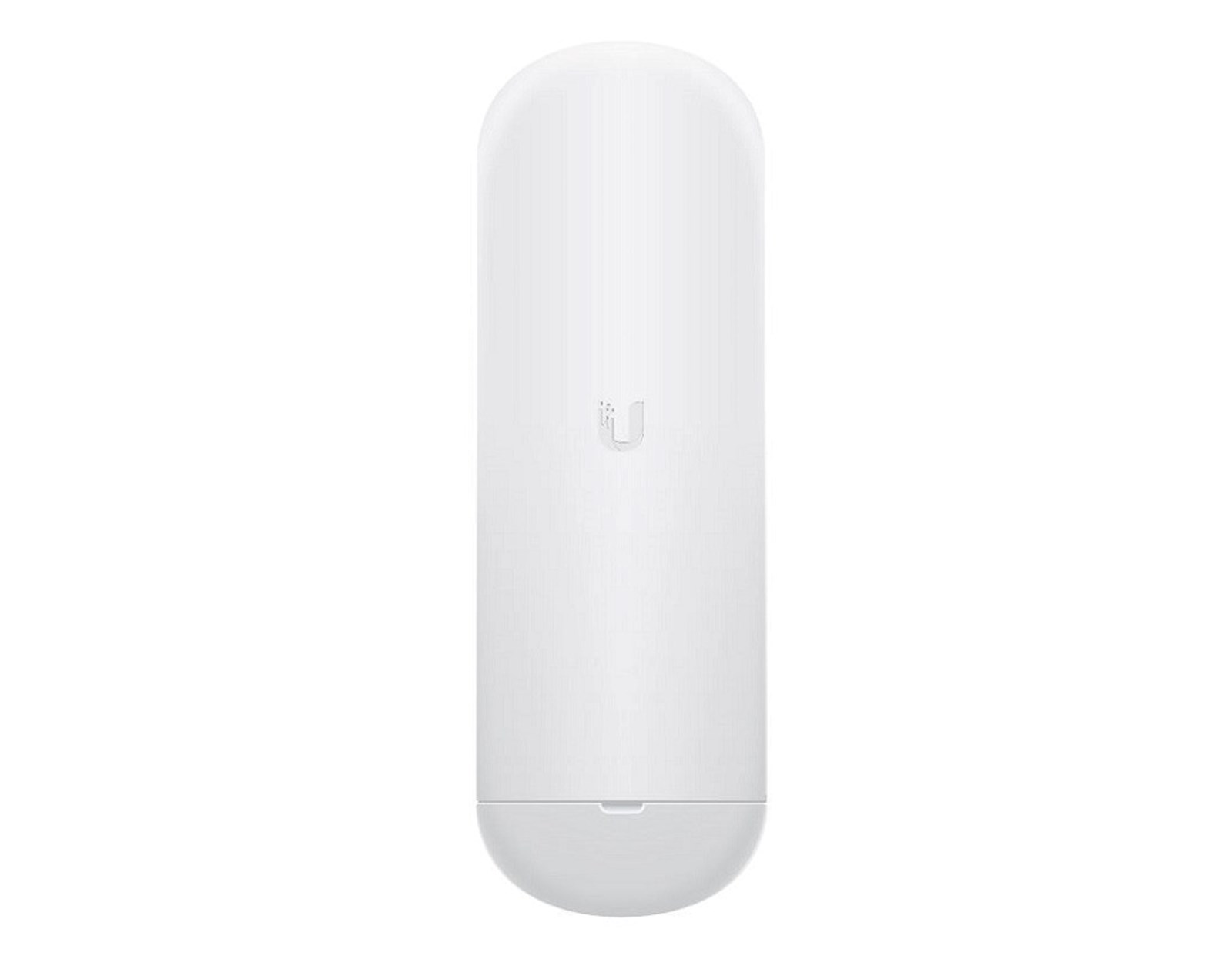

Ubiquiti NS-5AC | CPE | NanoStation, 2,4GHz, 5GHz, 1x RJ45 1000Mb/s, 16dBi

- UISP-supported WiFi radio designed for point-to-point and customer premises applications.

Features
- 5 GHz, 15+ km link range
- 450+ Mbps throughput
- Secondary LAN with PoE out support
- Dedicated spectral analysis radio
- Dedicated WiFi management radio

Specifications
Mechanical
- Dimensions

• Without mount: 257 x 84 x 41 mm (10.1 x 3.3 x 1.6")

• With mount: 257 x 84 x 30 mm (10.1 x 3.3 x 1.2")
- Weight: 233 g (8.2 oz)
- Enclosure material: UV-resistant plastic
- Mounting: Pole and wall mounting kits (Included)

Hardware
- Networking interface: (2) GbE RJ45 ports
- Power method

• PoE alternative A (pairs 1, 2+; 3, 6 Return)

• Passive PoE 2-pair (4, 5+; 7, 8 return)
- Power supply: 24V, 0.5A gigabit PoE adapter (Included)
- Supported voltage range

• 44–54V DC

• 22–27V DC
- Max. power consumption: 9W
- ESD/EMP protection: Air/contact: ±24 kV
- LEDs: Power, Ethernet, (4) signal strength
- Ambient operating temperature: -40 to 70° C (-40 to 158° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC

System
- Gain: 16 dBi
- Channel bandwidths: 10/20/30/40/50/60/80 MHz
- Cross-pol isolation: 20 dB min.
- Max. VSWR: 1.6:1
- Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
- Polarization: Dual linear

Operating Frequency (MHz)
- Worldwide: 5150-5875 MHz
- USA:

• U-NII-1: 5150-5250 MHz

• U-NII-2A: 5250-5350 MHz

• U-NII-2C: 5240-5725 MHz

• U-NII-3: 5725-5850 MHz

Management Radio (MHz)
- Worldwide: 2412 - 2472 MHz
- US/CA: 2412 - 2462 MHz
