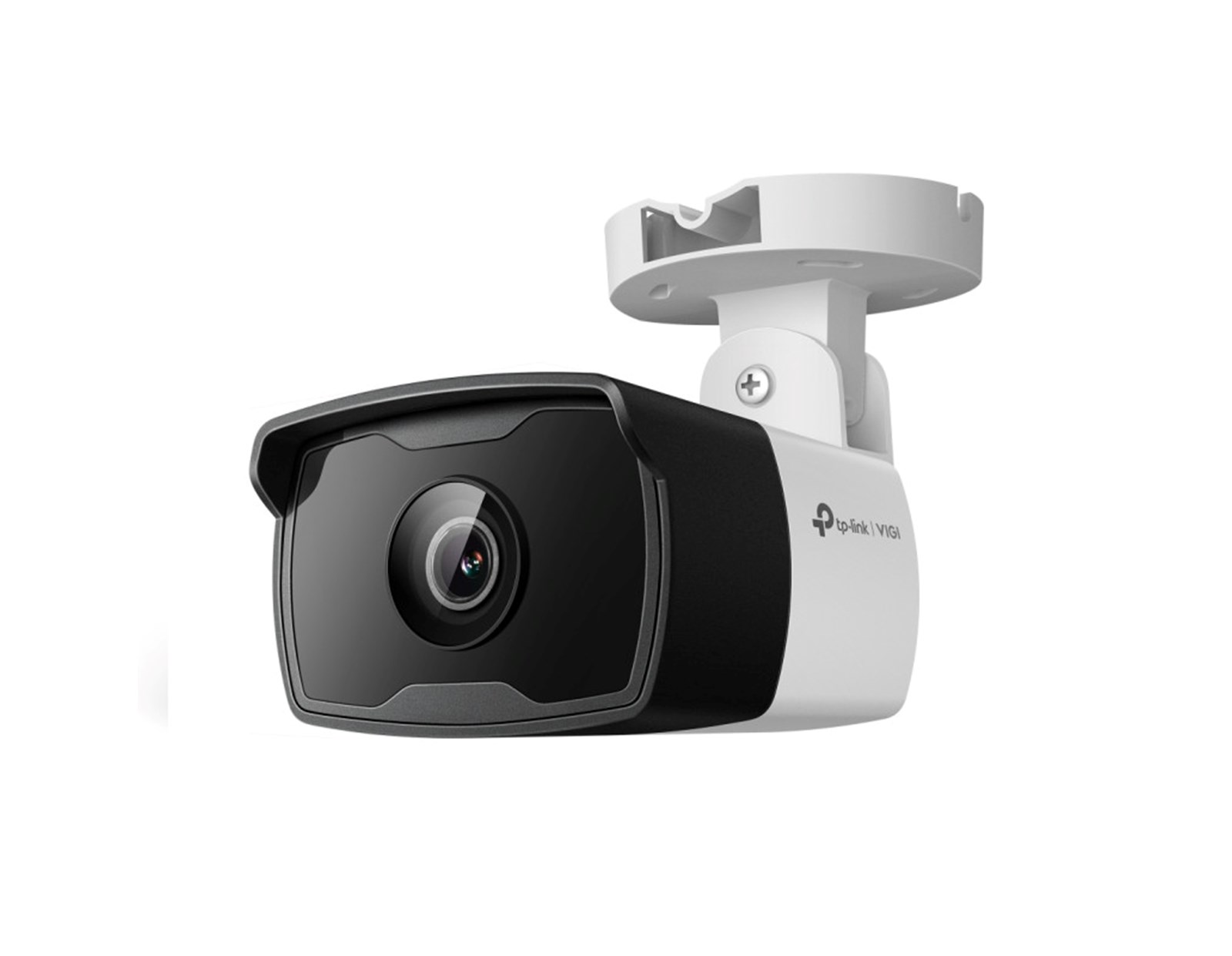

TP-Link VIGI C340I kamera 4MP, H.265+, 2.8 mm leća, RJ45, PoE/12V DC, Night Vision, microSD, dvosmjerni audio, detekcija pokreta, vodootporna IP67, VIGI app

4MP Super-High Definition
- The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification
- Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection
- Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

Smart Video Enhancement
- VIGI' s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

H.265+
- Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Waterproof
- Reliable IP67 for stable outdoor performance.

PoE/12V DC
- Two types of power supply not only give you more convenience but also make your wiring remarkably easy.

2.8/4/6 mm Lens
- Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.

Flexible Management
- Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

Specifications
CAMERA
- Image Sensor: 1/3” Progressive Scan CMOS
- Lens: 2.8 mm/ 4 mm/ 6 mm
- Day/Night Switch: Day/Night/Auto/Schedule-Switch
- Digital Noise Reduction: 3D DNR
- WDR: DWDR
- Weatherproof Rating: IP67
- IR Working Distance: 30m
- Shutter Speed: 1/3 to 1/10000 s
- Aperture

• 2.8 mm: F2.2

• 4 mm: F2.2

• 6 mm: F2.0
- Lens Mount: M12
- Viewing Angle:

• 2.8 mm, Diagonal FOV: 106.5°

• 4 mm, Diagonal FOV: 87.4°

• 6 mm, Diagonal FOV: 56°
- Slow Shutter: Yes
- Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
- Day/Night Mechanism: IR Cut Filter

NETWORK
- Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- ONVIF: Yes
- API: ONVIF
- Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
- Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
- Web Browser

• Google Chrome 57 and above

• Firefox 52 and above

• Safari11 and above

• Microsoft Edge 91 and above
- Cloud: Yes
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Network Storage: NAS (NFS, SMB/ CIFS)

GENERAL
- Operating Temperature: -30–60 °C
- Storage Temperature: -40–60 °C
- Operating Humidity: 95% or Less (Non-Condensing)
- Storage Humidity: 95% or Less (Non-Condensing)
- Package Contents

• VIGI Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories
- Dimensions( H X W X D ): 174 × 74 × 71 mm
- Material: Plastic
- General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
- Power Requirements

• 12V DC ± 5%, 5.5mm Coaxial Power Plug

• PoE (802.3af/at, class 0)
- Net Weight: 0.2 Kg
- Gross Weight: 0.35 Kg
- Power Consumption: 12V DC: Max 5W
- PoE: Class 0
- Power Supply:

• 12V DC ± 5%, 5.5mm Coaxial Power Plug

• PoE (802.3af/at, class 0)
- Protection: IP67
- Product Dimensions (L x W x H): 73× 174 × 71 mm
- Certifications: CE/BSMI/VCCI/ONVIF

INTERFACES
- Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
- Power: DC Power Port

ALARM AND EVENT MANAGEMENT
- Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
- Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
- Alarm Linkage: Message Push
- Output Notification: Message Push

VIDEO/IMAGE
Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264

Frame Rate & Resolutions
- Main Stream

• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
- Sub-Stream

• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution: 640x480,352x288, 320x240
- Max. Resolution: 4MP (2560 × 1440)
- Video Streaming

• Main Stream

• Sub-Stream
- Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Video Bit Rate. 64 Kbps to 4 Mbps
- Day/Night Switch: Day/Night/Auto/Schedule

SMART FEATURE-SET
- Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned Object Detection, Object Removal Detection, Vehicle Detection
- Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
- Linkage Method: Trigger Notification: ONVIF, HTTPS
- Region of Interest: 1 Region

ILLUMINATOR
IR LED

• Quantity: 2

• Range: 30m

• Wavelength: 850nm
- Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

LENS
- Type: Fixed Focal Lens
- Focal Length: 2.8 mm/4 mm/6 mm
- Aperture

• 2.8 mm: F2. 2

• 4 mm: F2.0

• 6 mm: F2.0
- FOV

• 2.8 mm: Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°

• 4 mm: Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7°

• 6 mm: Horizontal FOV: 47.7°, Vertical FOV: 26.5°, Diagonal FOV: 56°
- Lens Mount: M12

DORI Distance
2.8 mm:

• Detect: 60 m (197 ft)

• Observe: 25 m (82 ft)

• Recognize: 12 m (39 ft)

• Identify: 6 m (20 ft)

4 mm:

• Detect: 80 m (262 ft)

• Observe: 33 m (109 ft)

• Recognize: 16 m (52 ft)

• Identify: 8 m (26 ft)

6 mm:

• Detect: 120 m (394 ft)

• Observe: 50 m (164 ft)

• Recognize: 24 m (79 ft)

• Identify: 12 m (39 ft)

ANGLE ADJUSTMENT (MANUAL)
- Range: Pan: -90° to 90°
- Tilt: -90° to 90°

VIDEO
- Max. Resolution: 2560 × 1440

Main Stream
- Frame Rate:

• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
*Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream
- Frame Rate:

• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution:640x480, 352x288, 320x240
* Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control: CBR, VBR
- Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264
- H.264 Type: Main Profile/High Profile
- H.264+: Main Stream Supported
- H.265 Type: Main Profile
- H.265+: Main Stream Supported
- Video Bit Rate

• Main Stream: 256 Kbps to 4 Mbps

• Sub-Stream: 64 Kbps to 512 Kbps

- Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Wide Dynamic Range: DWDR
- SNR: ?52 dB
- Image Parameters Switch: Yes
- Privacy Mask: Up to 4 Masks
- ROI: 1 Region
- OSD Setting: Yes
