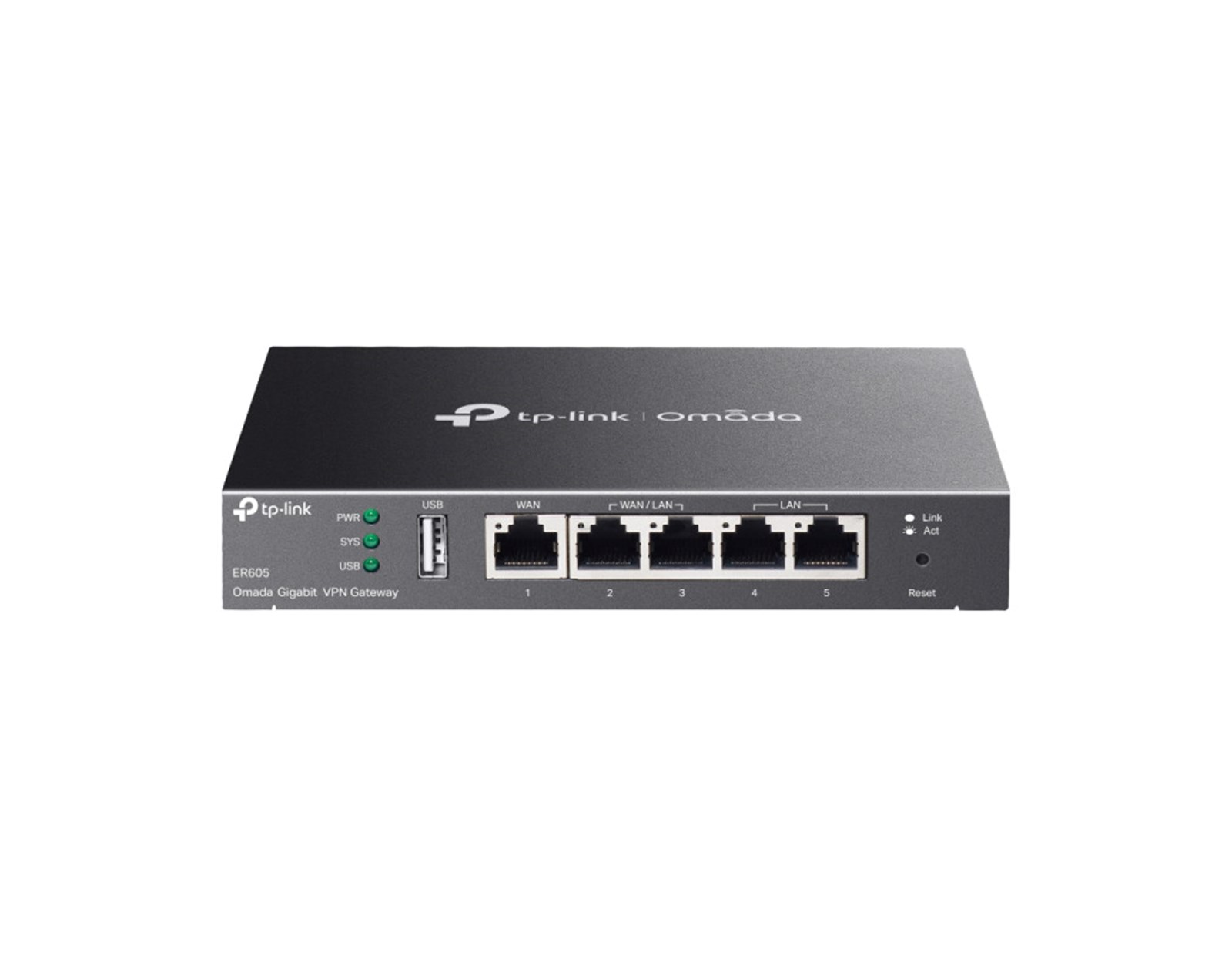

TP-Link Omada SafeStream Gigabit širokopojasni VPN usmjerivač (Router), 1×G-WAN/1×G-LAN + 3×G-WAN/LAN

Features
- Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for convenience and easy management.
- Five Gigabit Ports: High-speed wired connectivity.
- Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
- One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.‡
- Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
- Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.

Specification
SECURITY
- Access Control: Source/Destination IP Based Access Control
- Filtering

• WEB Group Filtering§

• URL Filtering

• Web Security§
- ARP Inspection

• Sending GARP Packets§

• ARP Scanning§

• IP-MAC Binding§
- Attack Defense

• TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

HARDWARE FEATURES
- Standards and Protocols

• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
- Interface

• 1 Fixed Gigabit WAN Port

• 2 Fixed Gigabit LAN Ports

• 2 Changeable Gigabit WAN/LAN Ports

• 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‡)
- Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100? STP (Max 100m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100? STP (Max 100m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
- Fan Quantity: Fanless
- Button: Reset Button
- Power Supply: External 12V/1A DC Adapter
- PoE Budget: -
- Flash. 128 MB NAND
- DRAM: 256 MB DDR
- LED: PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
- Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
- Protection: 4 kV surge protection
- Enclosure: Steel
- Mounting: Desktop/Wall-mount
- Max Power Consumption: 7.94 W

PERFORMANCE
- Concurrent Session: 150,000
- New Sessions /Second: 2,600
- NAT (Static IP)

• Upload: 945.77 Mbps

• Download: 945.56 Mbps

• Bi-Directional: 1808.29 Mbps
- NAT(DHCP)

• Upload: 945.93 Mbps

• Download: 945.43 Mbps

• Bi-Directional: 1808.11 Mbps
- NAT(PPPoE)

• Upload: 940.44Mbps

• Download: 940.52 Mbps

• Bi-Directional: 1804.27 Mbps
- NAT (L2TP)

• Upload: 845.64 Mbps

• Download: 802.65 Mbps

• Bi-Directional: 931.96 Mbps
- NAT (PPTP)

• Upload: 771.66 Mbps

• Download: 874.81 Mbps

• Bi-Directional: 999.54 Mbps
- 64 Byte Packet Forwarding Rate

• Upload/Download: 1,402,238 pps

• Bi-Directional: 1,681,548 pps
- IPsec VPN Throughput

• ESP-MD5-AES256: 171.26 Mbps

• ESP-SHA1-AES256: 224.86 Mbps

• ESP-SHA2-AES256: 248.04 Mbps
- OpenVPN

• 21.70 Mbps
- L2TP VPN Throughput

• Unencrypted: 864.65 Mbps

• Encrypted: 47.11 Mbps
- PPTP VPN Throughput

• Unencrypted: 703.20 Mbps

• Encrypted: 76.65 Mbps
- SSL VPN Throughput: -
- 66 Byte Packet forwarding rate

• Upload/Download: 954.50 Mbps

• Bi-Directional: 1130.00 Mbps
- 1,518 Byte Packet forwarding rate

• Upload/Download: 997.50 Mbps

• Bi-Directional: 1965.00 Mbps

BASIC FUNCTIONS
- WAN Connection Type

• Static/Dynamic IP

• PPPoE

• PPTP

• L2TP

• Mobile Broadband: 4G/3G modem for backup via USB port‡
- MAC Clone: Modify WAN/LAN MAC Address†
- DHCP

• DHCP Server/Client

• DHCP Address Reservation

• Multi-net DHCP*

• Multi-IP Interfaces*
- IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough
- VLAN: 802.1Q VLAN
- IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS
- ACL: IP/Port/Protocol/Domain Name Filtering
- Advanced Routing

• Static Routing

• Policy Routing
- Bandwidth Control: IP-based Bandwidth Control
- Load Balance

• Intelligent Load Balance

• Application Optimized Routing

• Link Backup (Timing§, Failover)

• Online Detection
- NAT

• One-to-One NAT§

• Multi-Net NAT

• Virtual Server

• Port Triggering§

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
- Security

• SPI Firewall

• VPN Passthrough

• FTP/H.323/PPTP/SIP/IPsec ALG

• DoS Defence, Ping of Death

• Local Management
- Session Limit: IP-based Session Limit

VPN
- IPsec VPN

• 20 IPsec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IKEv1/v2

• MD5, SHA1 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)
- PPTP VPN

• PPTP VPN Server

• 10 PPTP VPN Clients**

• 16 Tunnels

• PPTP with MPPE Encryption
- L2TP VPN

• L2TP VPN Server

• 10 L2TP VPN Clients**

• 16 Tunnels

• L2TP over IPSec
- OpenVPN

• OpenVPN Server*

• 10 OpenVPN Clients*?

• 16 OpenVPN Tunnels*

AUTHENTICATION
- Web Authentication

• No Authentication

• Simple Password*

• Hotspot(Local User / Voucher* / SMS* / Radius*)

• External Radius Sever

• External Portal Sever*

• Facebook*

MANAGEMENT
- Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller
- Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
- Maintenance

• Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3

• Diagnostics (Ping & Traceroute)§

• NTP Synchronize§

• Syslog Support
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
- Management Features

• Automatic Device Discovery

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

OTHERS
Certification: CE, FCC, RoHS
- Package Contents

• Gigabti VPN Router ER605

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
- Environment

• Operating Temperature: 0–40 ? (32–104 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
