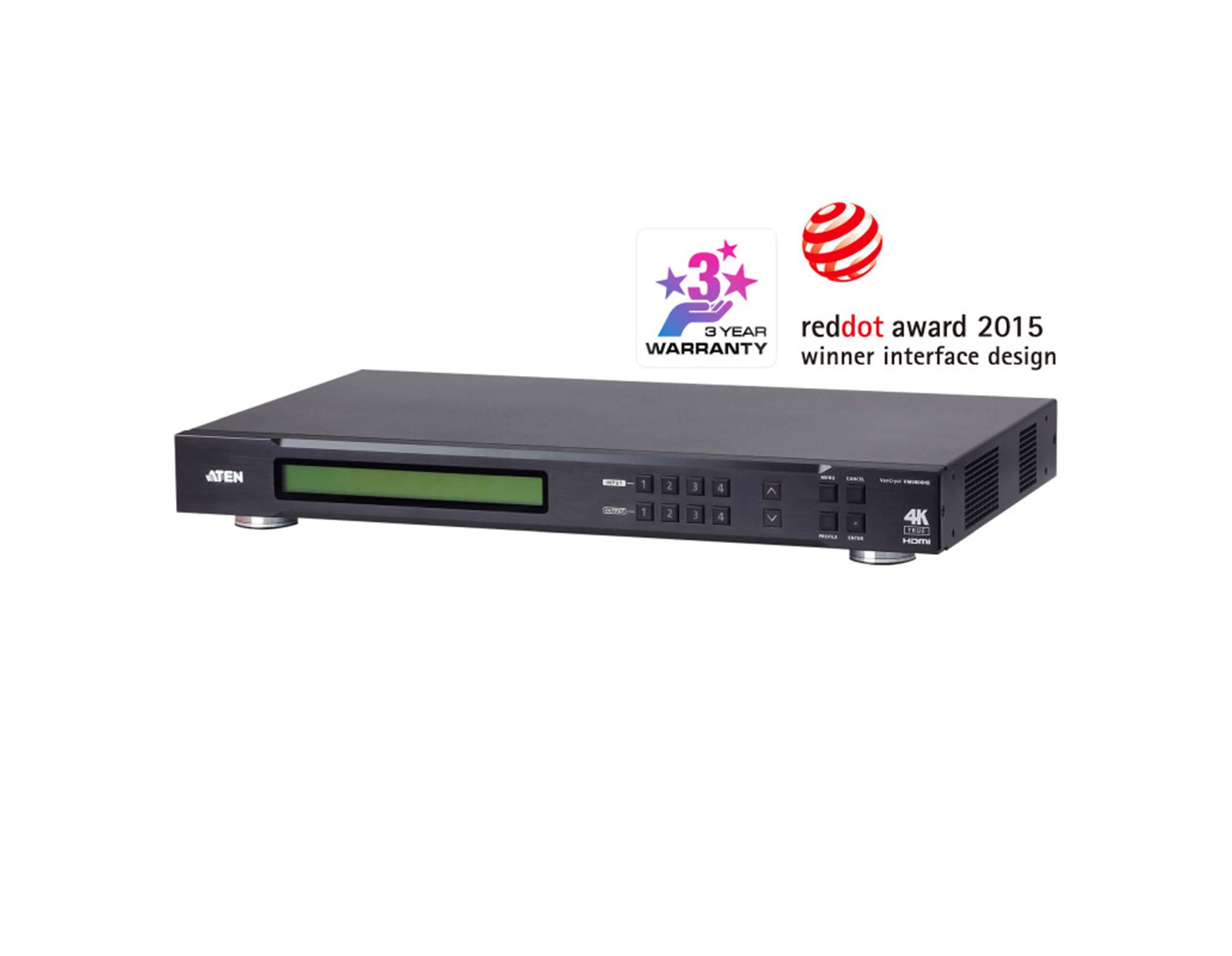

Aten 4x4 True 4K HDMI Matrix Switch

- ATEN’s VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0404HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.

- The intuitive GUI design of the VM0404HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0404HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.

Specifications
Video Input
- Interfaces: 4 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 5.0 m / 4K@60Hz (4:4:4)

Video Output
- Interfaces: 4 x HDMI Type A Female (Black)
- Max. Distance

• 5m / 4K60Hz (4:4:4)

• 15m / 1920 x 1200
- Impedance: 100 ?

Video
- Max. Pixel Clock: 600 MHz
- Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
- Max. Data Rate: 18 Gbps( 6 Gbps Per Lane)
- Compliance

• HDMI (3D, 4K, Deep Color)

• HDCP 2.2 Compatible

• Consumer Electronics Control (CEC)

Control
- RS-232

• Connector: 1 x DB-9 Female (Black)

• Baud rate and protocol:

• Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR: 1 x Mini Stereo Jack Female (Black)
- Ethernet: 1 x RJ-45 Female

EDID Settings
- EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support)

Environmental
- Operating Temperature: 0-40°C
- Humidity: 0 - 80% RH, Non-Condensing
- Storage Temperature: -20 - 60°C

Physical Properties
- Weight: 2.47 kg ( 5.44 lb )
- Housing: Metal
- Dimensions (L x W x H): 43.72 x 15.28 x 4.40 cm (17.21 x 6.02 x 1.73 in.)

Connectors
- Power: 1 x 3-Prong AC Socket

Carton Lot:
1 pc

Power Consumption
- AC110: 17.8W:83BTU
- AC220:17.6W:83BTU

Power
- Maximum Input Power Rating: 100-240 VAC; 50-60 Hz; 1.0A
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

• 1x VM0404HB 4 x 4 True 4K HDMI Matrix Switch

• 1x LIN2-418K-E12G Power Cord

• 1x 2XRT-0106G IR Remote Control

• 1x 2XRT-0003G IR Receiver

• 1x Rack Mounting Kit

• 1x User Instructions
