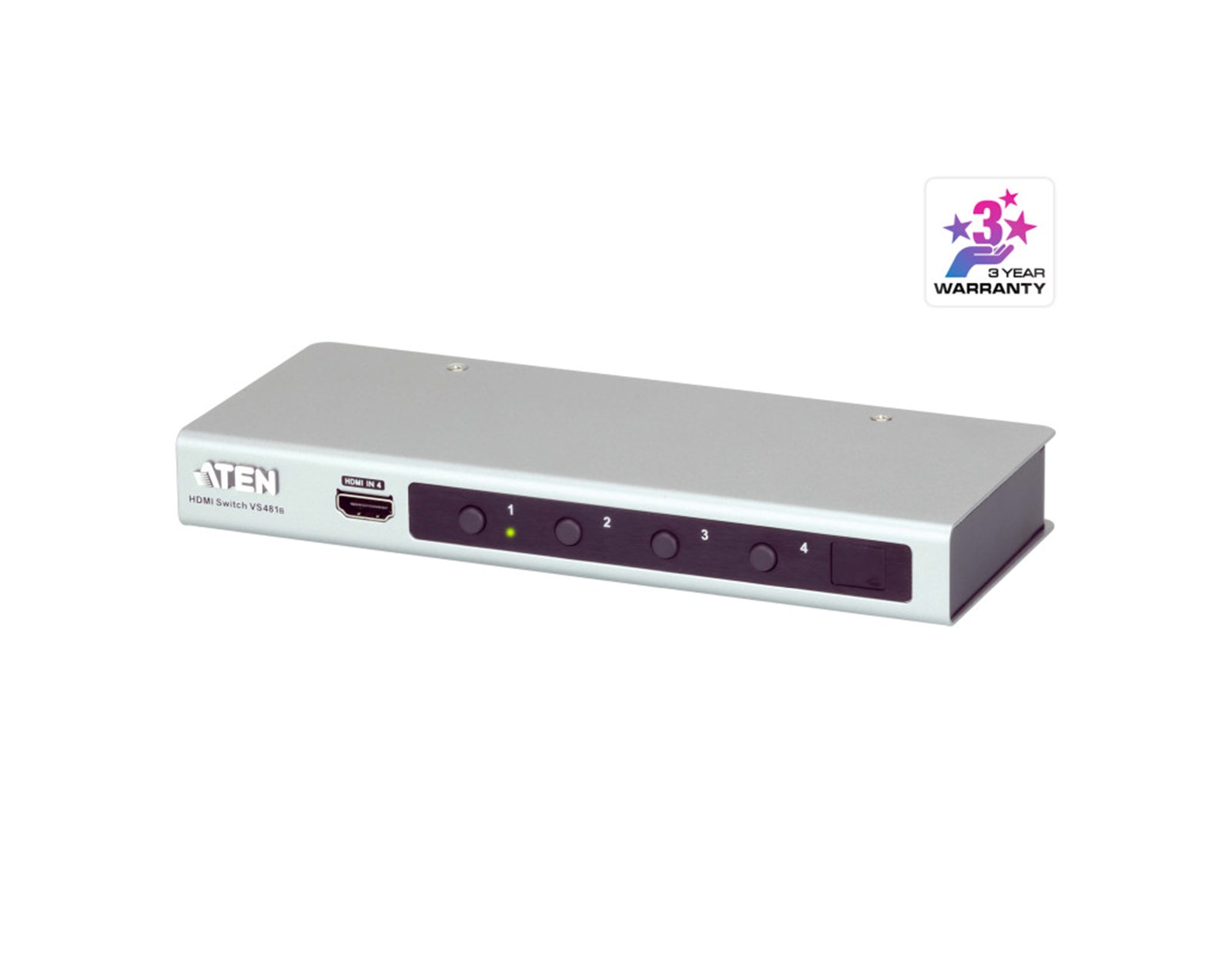

Aten 4-Port 4K HDMI Switch

- The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.

- The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

Specifications
- Video Input
- nterfaces: 4 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 3m 3840x2160 30 (4:4:4)

Video Output
- Interfaces: 1 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 15m 3840x216030 (4:4:4)

Video
- Max. Data Rate: 10.2 Gbps (3.4 Gbps per lane)
- Max. Pixel Clock: 340 MHz
- Compliance:

• HDMI (3D, Deep Color, 4K)

• HDCP Compatible

• Consumer Electronics Control (CEC)
- Max. Resolution:

• Up to 4096 x 2160 / 3840 x 2160 60Hz (4:2:0);

• 4096 x 2160 / 3840 x 2160 30Hz (4:4:4)

Control
- RS-232: Connector: 1 x DB-9 Female (Black)

Baud Rate and Protocol:
- Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR
- 1 x Mini Stereo Jack Female (Black)

Connectors
- Power: Connector: 1 x DC Jack

Power Consumption
- DC5V:1.76W:8BTU

Environmental
- Operating Temperature: 0 - 50°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-Condensing

Physical Properties
- Housing: Metal
- Weight: 0.48 kg ( 1.06 lb )
- Dimensions (L x W x H): 20.00 x 8.25 x 2.50 cm (7.87 x 3.25 x 0.98 in.)
- Carton Lot: 10 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
